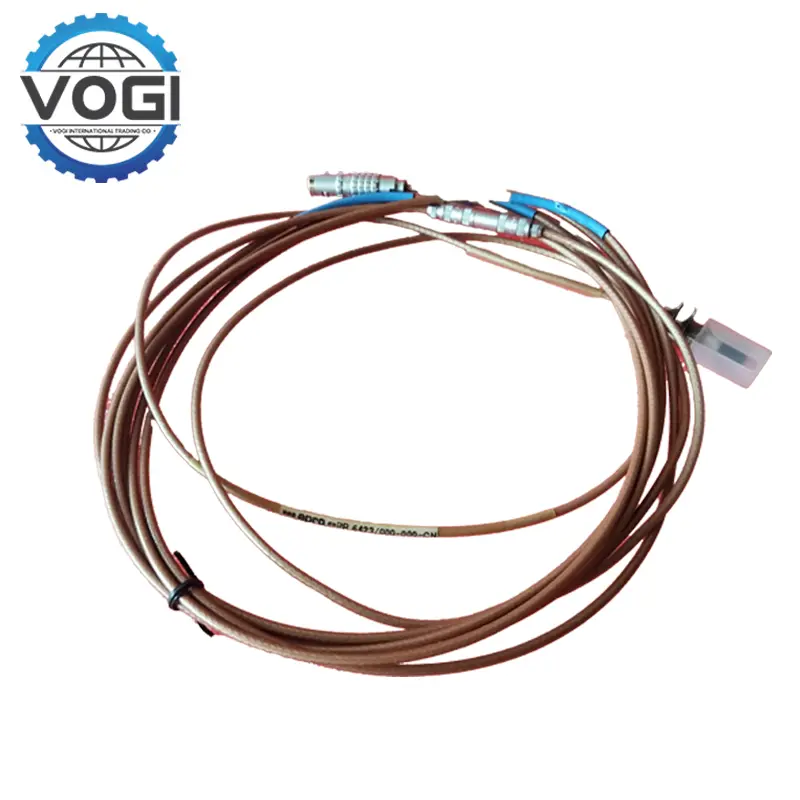

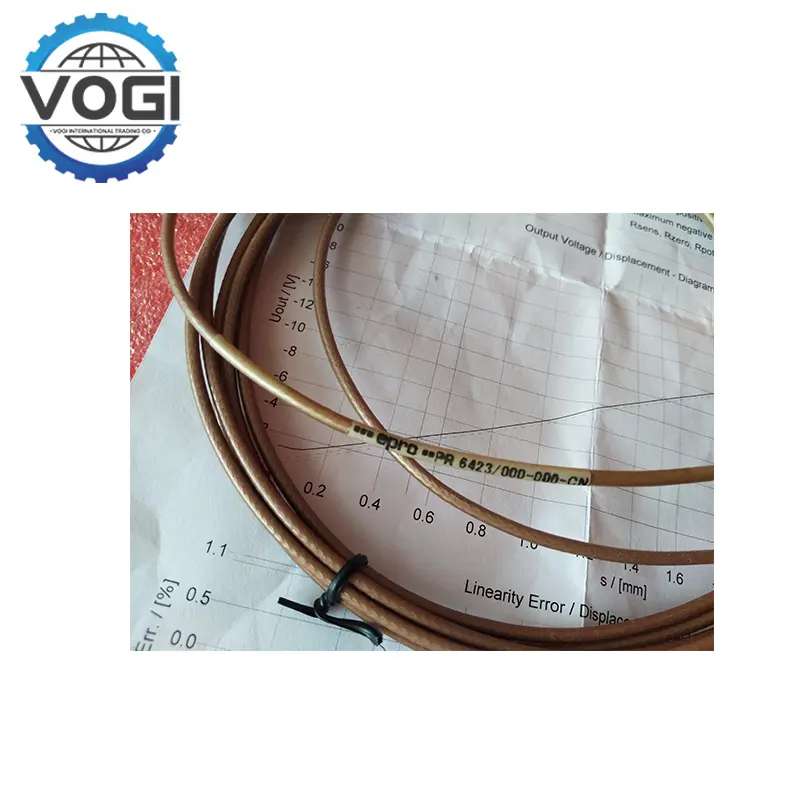

EPRO PR6423/000-000 8mm Eddy Current Sensor Module

Brand EPRO
Module Number PR6423/000-000(PR6423/000-000-CN)
Country Of Origin Germany
Dimension 4M Cable
Weight 0.15kg
HS Code 9031809090
Condition Brand New
Certificate COO TEST REPORT WARRANTY LETTER
Warranty 12 months
Inventory Qty 1
Payment Term T/T

Send inquiry DATASHEET DOWNLOAD

Key SpecificationsVogi

Thread length: 25 mm

Linear Measurement Range: 2 mm (80 mils)

Initial Air Gap: 0.5 mm (20 mils)

Incremental Scale Factor (ISF): ISO: 8 V/mm (203.2 mV/mil) ± 5% temperature range 0 to 45°C (+32 to +113°F)

Deviation from best fit straight line (DSL): ± 0.025 mm (± 1 mil) @ temperature range 0 to 45°C (+32 to +113°F)

Minimum Shaft Diameter: 25 mm (0.79”)

Target Material (Ferromagnetic Steel) : 42CrMo4 (AISI/SAE 4140) Standard Other (On Request)

Protection Class: IP66, IEC 60529

Operating Temperature Range: Sensor incl. 1m Cable: -35 to +180°C (-31 to 356°F) Cable & Connector: -35 to +150°C (-31 to 302°F)

Material: Sensor Tip (PEEK Polyether Ether Ketone), Case (Stainless Steel) Cable (PTFE Polytetrafluoroethylene), Connector (Brass, nickel-plated)

Main FeaturesVogi

Advanced Measurement Technology: Utilizing a seismic block and spring-supported coil within a permanent magnetic field, Epro PR6423/000-000 generates voltage signals proportional to vibration velocity (10 Hz–1000 Hz frequency range), ensuring accurate real-time data for machinery health analysis.

Compatibility & Integration: Seamlessly integrates with MMS 3000/6000 monitoring systems via Harting connectors, supporting signal amplification and linear output for predictive maintenance workflows.

Explosion-Proof Certification: Meets EEx ib II B/C standards, enabling safe deployment in hazardous zones such as chemical plants and oil refineries.

Easy Installation & Calibration: Features a single-direction measurement design (vertical/horizontal) with pre-calibrated sensitivity (28.5 mV/mm ±5.25%), minimizing setup time while ensuring reliability.

Freight Estimation(Part Of The Area)Vogi

Destination	Freight
Middle East	$51
Southeast Asia	$15
South Asia	$56
South Africa	$46
Europe and USA	$27
Russia	$51

ApplicationsVogi

Power Generation: At a Texas natural gas plant, Epro PR6423/000-000 reduced turbine startup delays by 22% through adaptive PID tuning, achieving ISO 21707 compliance.

Marine Propulsion: Installed on LNG carriers, its anti-corrosion (IP69K-rated) housing and EMI shielding prevent saltwater-induced failures during transoceanic voyages.

Cement Manufacturing:A German plant eliminated kiln temperature overshoots by pairing the module with pyrometers, cutting energy waste by 15% annually.

We also supply other models of this products: PR6423/000-010, PR6423/000-020, PR6423/000-030.They are the same in specifications, features and application range. The difference is the total length of the cable,refer to the table for details.

Module Number

Cable Length

PR6423/000-000

PR6423/000-010

PR6423/000-020

PR6423/000-030

OrderingVogi

Tip Diameter	Case Threads	Armored Cable	Model No.
8mm	M10x1	No	PR6423/00
		Yes	PR6423/01
		Yes	PR6423/03*
	3/8"-24 UNF	No	PR6423/10
		Yes	PR6423/11
		Yes	PR6423/13*

*Armored cable option for Reverse Mount,if Adapter Plug is chosen

Model No.

Case Thread X

Adapter Plug X

Cable Length X

Cable End X

PR6423/00

PR6423/01

PR6423/10

PR6423/11

025mm

135mm

245mm

355mm

465mm

575mm

685mm

795mm

8105mm

9115mm

E155mm

H195mm

R Reverse

Mount

0With

1 Without

04.0m

15.0m

38.0m

F9.0m

410.0m

0 Lemo*

1Open

*Not available, if Reverse Mount without Adapter Plug is chosen.
Example: PR6423/000-000 ECS 8mm, M10X1, NO ARMOR, 25MM SLEEVE, 1+3M CABLE, LEMO
