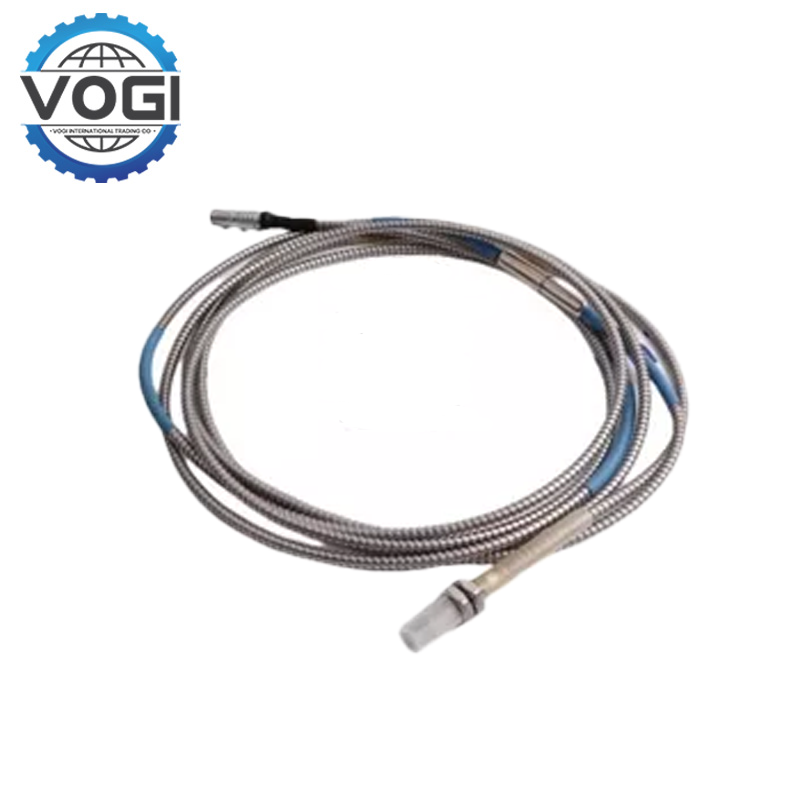

Epro PR6423/010-100 8mm Eddy Current Sensor
Key SpecificationsVOGI
Thread length: 25mm
Linear Measurement Range: 2 mm (80 mils)
Initial Air Gap: 0.5 mm (20 mils)
Incremental Scale Factor (ISF): ISO: 8 V/mm (203.2 mV/mil) ± 5% temperature range 0 to 45°C (+32 to +113°F)
Deviation from best fit straight line (DSL): ± 0.025 mm (± 1 mil) @ temperature range 0 to 45°C (+32 to +113°F)
Minimum Shaft Diameter: 25 mm (0.79”)
Target Material (Ferromagnetic Steel) : 42CrMo4 (AISI/SAE 4140) Standard Other (On Request)
Protection Class: IP66, IEC 60529
Operating Temperature Range: Sensor incl. 1m Cable: -35 to +180°C (-31 to 356°F) Cable & Connector: -35 to +150°C (-31 to 302°F)
Material: Sensor Tip (PEEK Polyether Ether Ketone), Case (Stainless Steel) Cable (PTFE Polytetrafluoroethylene), Connector (Brass, nickel-plated)
Key FeaturesVOGI
Non-Contact Dynamic Measurement: The Epro PR6423/010-100 utilizes eddy current technology to measure shaft vibration (0–600 µm dynamic range) and axial displacement (±1.5 mm static range) without physical contact, ensuring zero mechanical wear. Its 10 V/mm sensitivity enables micron-level accuracy for critical applications in gas turbines, compressors, and high-speed pumps.
Multi-Standard Compliance: Certified to API 670, ISO 10817-1, and DIN 45670 standards, the Epro PR6423/010-100 guarantees precise data collection for predictive maintenance in power plants, oil refineries, and marine engines.

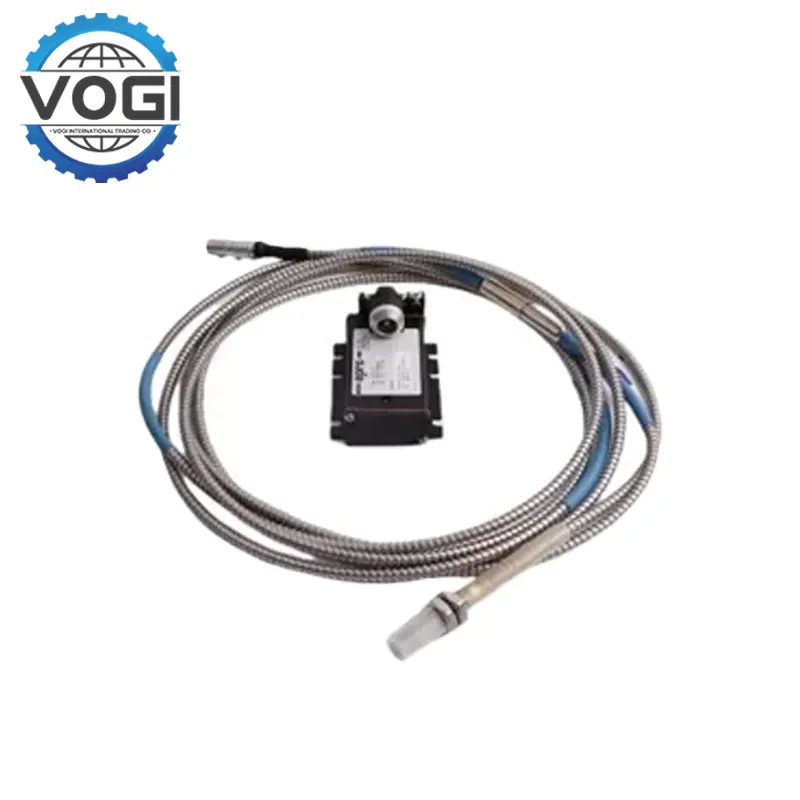

Pre-Calibrated and Plug-and-Play Integration: Factory-calibrated with 42CrMo4 steel, the Epro PR6423/010-100 requires only gap adjustment during installation. Its integrated M12 connector and compatibility with CON031 converters simplify retrofitting into PLC/DCS networks, reducing setup time by 40%.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$35 |
|
Southeast Asia |
$15 |
|
South Asia |
$46 |
|
South Africa |
$37 |
|
Europe and USA |
$24 |
|
Russia |
$42 |
APPLICATIONVOGI
Nuclear Fusion Reactors: In French ITER prototypes, the PR6423/010-100 tracks plasma containment wall displacements (0–500µm), achieving ±0.3µm stability under 150M°C pulsed operations.
Bio-Printing Organs: Ensures 0.05µm nozzle alignment in US biotech labs (ISO 14644-1 Class 3), reducing cell scaffold errors by 37% in 2024 trials.
Hypersonic Jet Engines: Deployed in UK Reaction Engines’ SABRE prototypes, the PR6423/010-100 withstands 1,000°C scramjet vibrations (MIL-STD-810H compliant).
We also supply other models of this products: PR6423/010-110,PR6423/010-120,PR6423/010-140.They are the same in specifications, features and application range. The difference is the total length of the cable, refer to the table for details.
We also supply other models of this products: PR6423/010-110,PR6423/010-120,PR6423/010-140.They are the same in specifications, features and application range. The difference is the total length of the cable, refer to the table for details.
Module Number |
Cable Length |
PR6423/010-100 |
4m |
PR6423/010-110 |
5m |
PR6423/010-120 |
6m |
PR6423//010-140 |
10m |
