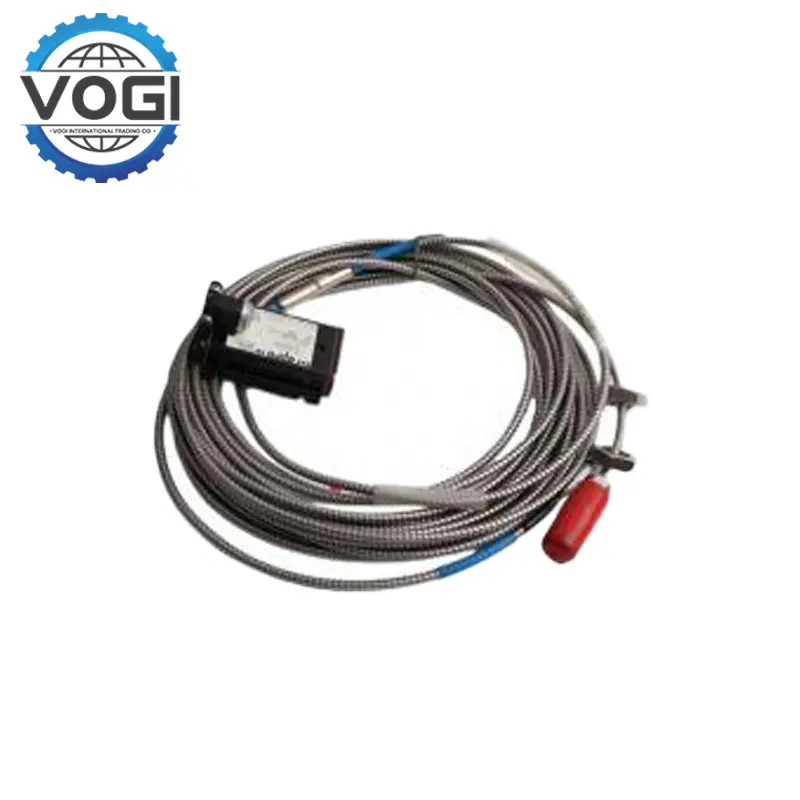

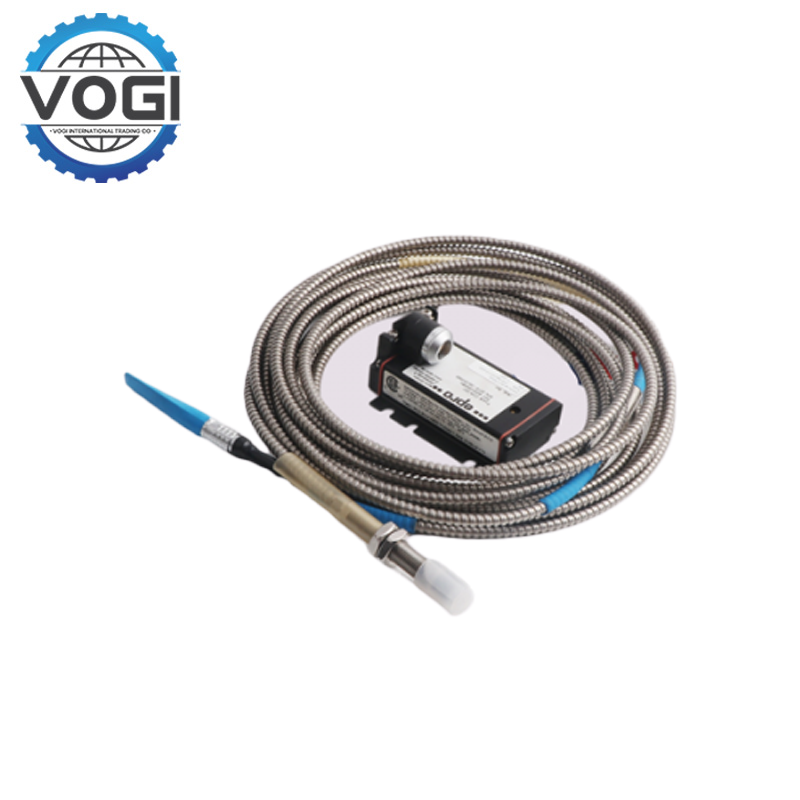

Epro PR6423/013-020 8mm Eddy Current Sensor
Key SpecificationsVOGI
Thread length: 55mm
Linear Measurement Range: 2 mm (80 mils)
Initial Air Gap: 0.5 mm (20 mils)
Incremental Scale Factor (ISF): ISO: 8 V/mm (203.2 mV/mil) ± 5% temperature range 0 to 45°C (+32 to +113°F)
Deviation from best fit straight line (DSL): ± 0.025 mm (± 1 mil) @ temperature range 0 to 45°C (+32 to +113°F)
Minimum Shaft Diameter: 25 mm (0.79”)
Target Material (Ferromagnetic Steel) : 42CrMo4 (AISI/SAE 4140) Standard Other (On Request)
Protection Class: IP66, IEC 60529
Operating Temperature Range: Sensor incl. 1m Cable: -35 to +180°C (-31 to 356°F) Cable & Connector: -35 to +150°C (-31 to 302°F)
Material: Sensor Tip (PEEK Polyether Ether Ketone), Case (Stainless Steel) Cable (PTFE Polytetrafluoroethylene), Connector (Brass, nickel-plated)
Key FeaturesVOGI
Tight Installation Tolerance: With a compact M18 housing and ±0.1 mm scanning gap tolerance, this sensor delivers stable performance even in confined spaces. Its IP67-rated stainless steel body resists dust, moisture, and corrosive conditions.
High-Temperature Resilience: Operational in temperatures up to +175°C, the Epro PR6423/013-020 excels in steam turbines and high-heat industrial processes without signal drift. Anti-interference shielding ensures accuracy in electrically noisy environments.
Seamless System Integration: Pre-calibrated for quick deployment, the sensor pairs effortlessly with CON031 and MMS6000 monitoring systems. This plug-and-play compatibility minimizes downtime during installation and maintenance.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$35 |
|
Southeast Asia |
$15 |
|
South Asia |
$46 |
|
South Africa |
$37 |
|
Europe and USA |
$27 |
|
Russia |
$42 |
APPLICATIONVOGI
Aerospace Engine Testing: During turbine endurance trials, the Epro PR6423/013-020 captures micro-vibrations linked to blade fatigue. Its aerospace-grade alloy housing withstands rapid thermal cycling (-40°C to 200°C), providing engineers with actionable data to refine engine longevity.
Subsea Oil Rig Pumps: In deep-sea drilling operations, the Epro PR6423/013-020’s hermetically sealed design (IP69K-rated) detects impeller cavitation caused by sand ingress. By alerting crews to abnormal pressure-induced vibrations, it prevents costly wellhead equipment failures at depths exceeding 3,000 meters.
Automotive Robotic Assembly Lines: Integrated into robotic welding arms, the Epro PR6423/013-020 identifies misalignment in real time. Its EMI-shielded circuitry eliminates false alarms from electromagnetic interference, maintaining 24/7 production accuracy even in high-vibration stamping zones.
