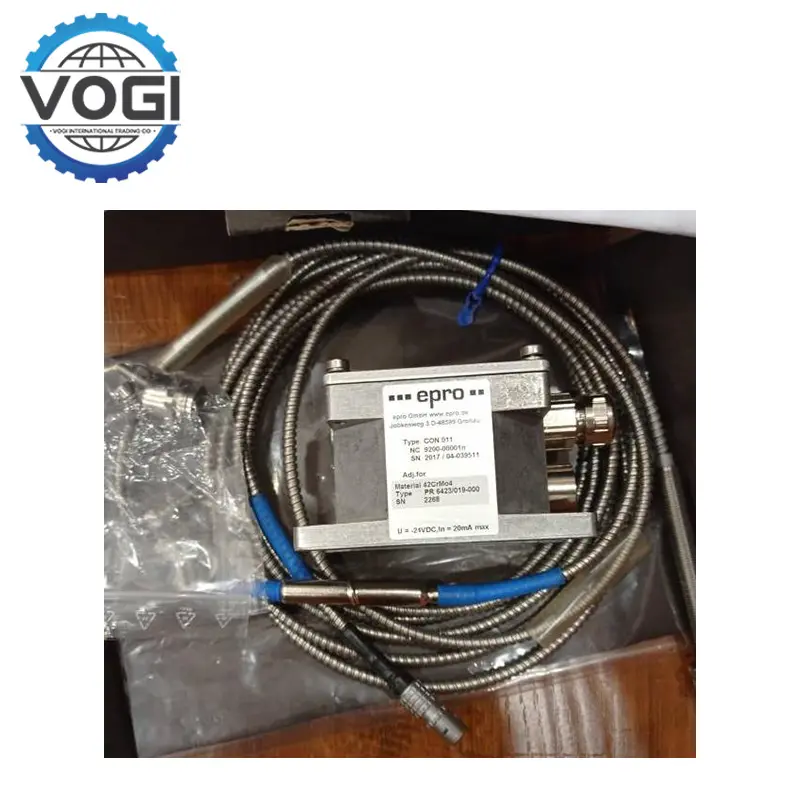

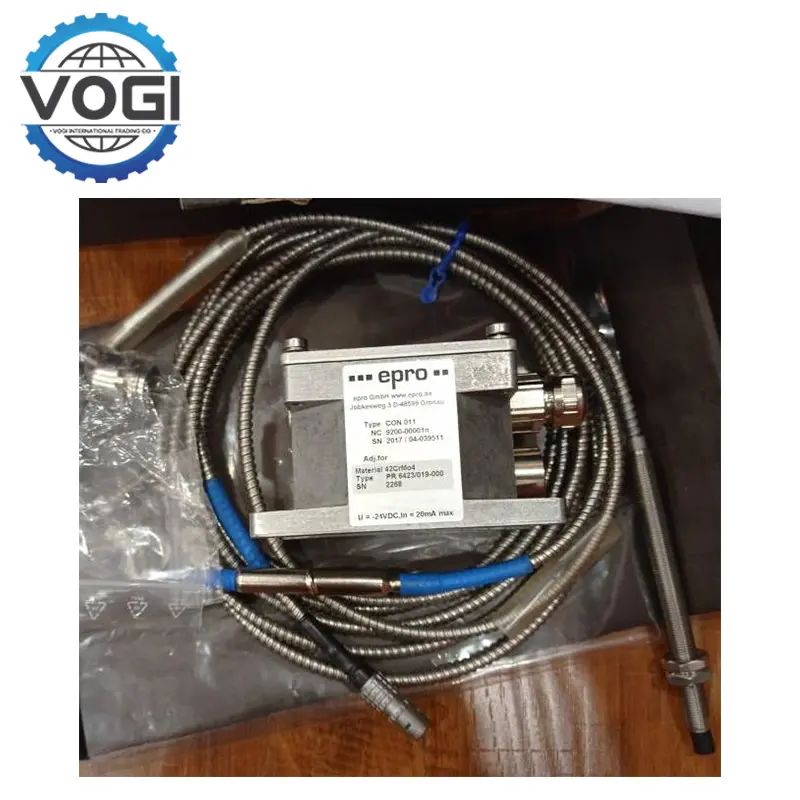

Epro PR6423/019-030 8mm Eddy Current Sensor
Key SpecificationsVOGI
Thread length: 115mm
Linear Measurement Range: 2 mm (80 mils)
Initial Air Gap: 0.5 mm (20 mils)
Incremental Scale Factor (ISF): ISO: 8 V/mm (203.2 mV/mil) ± 5% temperature range 0 to 45°C (+32 to +113°F)
Deviation from best fit straight line (DSL): ± 0.025 mm (± 1 mil) @ temperature range 0 to 45°C (+32 to +113°F)
Minimum Shaft Diameter: 25 mm (0.79”)
Target Material (Ferromagnetic Steel) : 42CrMo4 (AISI/SAE 4140) Standard Other (On Request)
Protection Class: IP66, IEC 60529
Operating Temperature Range: Sensor incl. 1m Cable: -35 to +180°C (-31 to 356°F) Cable & Connector: -35 to +150°C (-31 to 302°F)
Material: Sensor Tip (PEEK Polyether Ether Ketone), Case (Stainless Steel) Cable (PTFE Polytetrafluoroethylene), Connector (Brass, nickel-plated)
Key FeaturesVOGI
Plug-and-Play Calibration & Precision Measurement: Pre-calibrated with 42CrMo4 steel, the PR6423/019-030 requires no on-site alignment—simply adjust the 0.7–2.7mm air gap for immediate operation. It delivers ±0.75% linearity in detecting micron-level axial displacement, critical for preventing bearing failures in high-speed compressors Seamless.
Integration with MMS Monitoring Systems: As a core component of the MMS 6000 serie, the PR6423/019-030 transmits real-time data via LEMO connectors to PLCs or IoT platforms. Its 4–20mA output simplifies compatibility with predictive maintenance software, enabling early warnings for rotor misalignment or thermal stress risks.
Integration with MMS Monitoring Systems: As a core component of the MMS 6000 serie, the PR6423/019-030 transmits real-time data via LEMO connectors to PLCs or IoT platforms. Its 4–20mA output simplifies compatibility with predictive maintenance software, enabling early warnings for rotor misalignment or thermal stress risks.
Versatile Mounting & Global Compliance: With M18×1.5 threaded installation and optional flange configurations, the PR6423/019-030 adapts to turbines, pumps, or gearboxes. Compliant with API 670 and ISO 10817-1 standards, it meets global safety requirements for power generation and heavy machinery industries.
Freight Estimation(Part Of The Area)VOGI
Destination |
Freight |
Middle East |
$35 |
Southeast Asia |
$15 |
South Asia |
$46 |
South Africa |
$37 |
Europe and USA |
$27 |
Russia |
$42 |
APPLICATIONVOGI
Mining Conveyor Systems: Deploy the PR6423/019-030 to monitor belt drive vibrations in mining operations. Its shock-resistant design detects irregularities caused by material overloads or mechanical wear, preventing unplanned shutdowns.
Chemical Processing Mixers: In corrosive environments, this sensor tracks agitator vibrations to ensure consistent mixing performance. The PR6423/019-030’s sealed construction (IP68-rated) resists chemical exposure, safeguarding process integrity.
Wind Turbine Gearboxes: Integrated into offshore wind farms, it captures subtle vibration shifts in gearbox components, enabling predictive maintenance to avoid costly repairs in remote locations.
