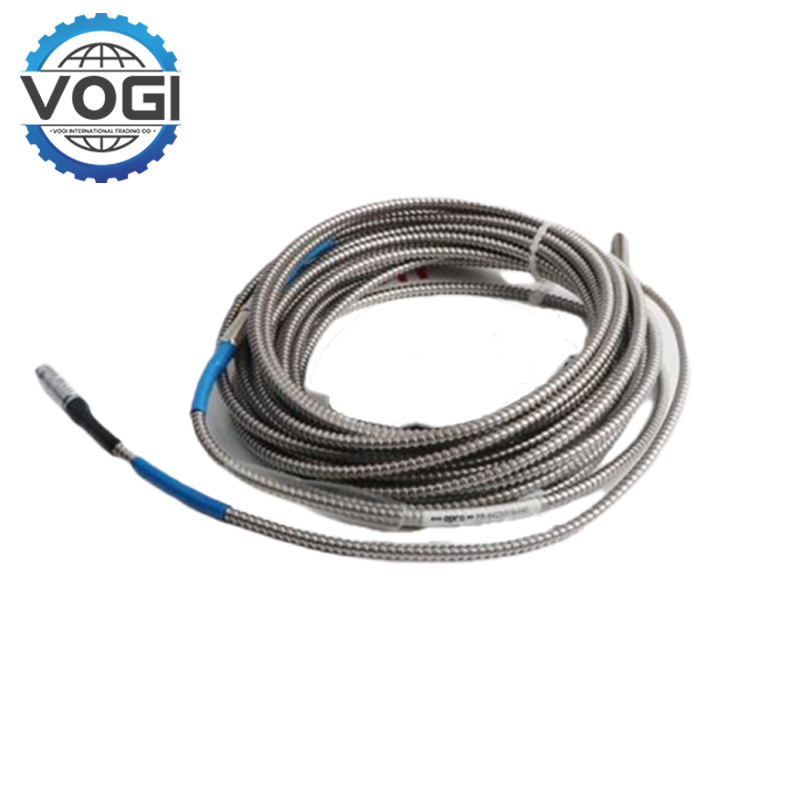

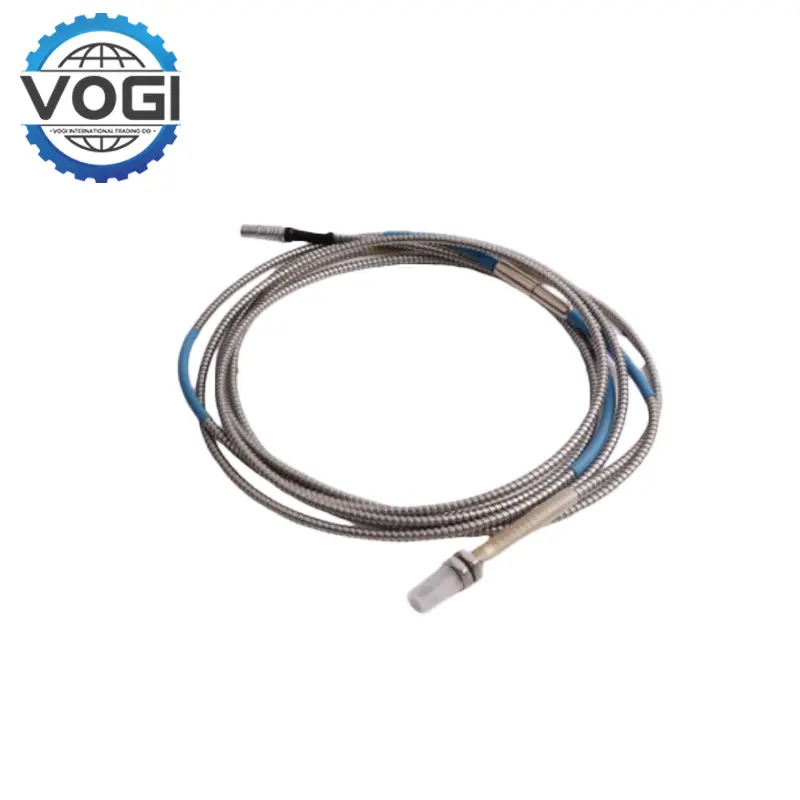

Epro PR6423/03R-000 8mm Eddy Current Sensor
Key SpecificationsVOGI
Thread length: Reverse thread
Linear Measurement Range: 2 mm (80 mils)
Initial Air Gap: 0.5 mm (20 mils)
Incremental Scale Factor (ISF): 8 V/mm (203.2 mV/mil) ± 5% temperature range 0 to 45°C (+32 to +113°F)
Deviation from best fit straight line (DSL): ± 0.025 mm (± 1 mil) @ temperature range 0 to 45°C (+32 to +113°F)
Minimum Shaft Diameter: 25 mm (0.79”)
Target Material (Ferromagnetic Steel) : 42CrMo4 (AISI/SAE 4140) Standard Other (On Request)
Protection Class: IP66, IEC 60529
Operating Temperature Range: Sensor incl. 1m Cable: -35 to +180°C (-31 to 356°F) Cable & Connector: -35 to +150°C (-31 to 302°F)
Material: Sensor Tip (PEEK Polyether Ether Ketone), Case (Stainless Steel) Cable (PTFE Polytetrafluoroethylene), Connector (Brass, nickel-plated)
Key FeaturesVOGI
High-Temperature Resilience: Engineered for extreme thermal conditions, the Epro PR6423/03R-000 operates reliably in temperatures from -35°C to +300°C. Its IP67-rated stainless steel housing and armored cable ensure durability in explosive atmospheres (ATEX/IECEx certified), making it ideal for gas turbines and industrial furnaces.
Extended Measurement Range:Through mechanical adaptations like conical or dual-cone setups, the Epro PR6423/03R-000 achieves a dynamic range of 0–600 µm, doubling standard capabilities. This flexibility suits applications in large generators or high-speed pumps requiring customized monitoring.
Dual-Channel Dynamic Analysis: The Epro PR6423/03R-000 supports simultaneous monitoring of vibration and displacement across two measurement points, enabling real-time comparison for early fault detection in turbines and compressors. Its ±2 mm static range and 5.33 V/mm sensitivity ensure micron-level accuracy, critical for detecting shaft eccentricity and bearing wear .
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$35 |
|
Southeast Asia |
$15 |
|
South Asia |
$46 |
|
South Africa |
$37 |
|
Europe and USA |
$24 |
|
Russia |
$42 |
APPLICATIONVOGI
Medical Device Assembly: In South Korean MRI manufacturing, the PR6423/03R-000 ensures ±0.3µm alignment of superconducting coils, critical for ISO 13485 compliance. Hospitals in Germany report 98% component reliability since 2023 upgrades.
Plastic Injection Molding: Monitors mold clamping force in Thai automotive part factories (0–10kN range), reducing flash defects by 41% under 180°C polymer flows.
Glass Manufacturing: Tracks furnace conveyor roller displacement in Egyptian float glass lines (800°C ambient survivability), achieving 0.05mm positioning repeatability.
