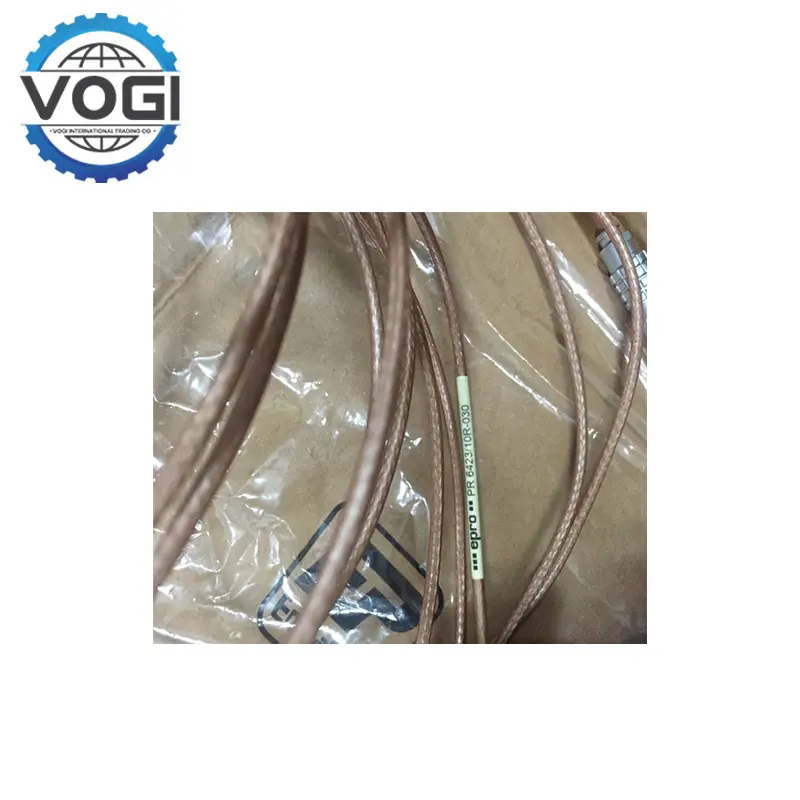

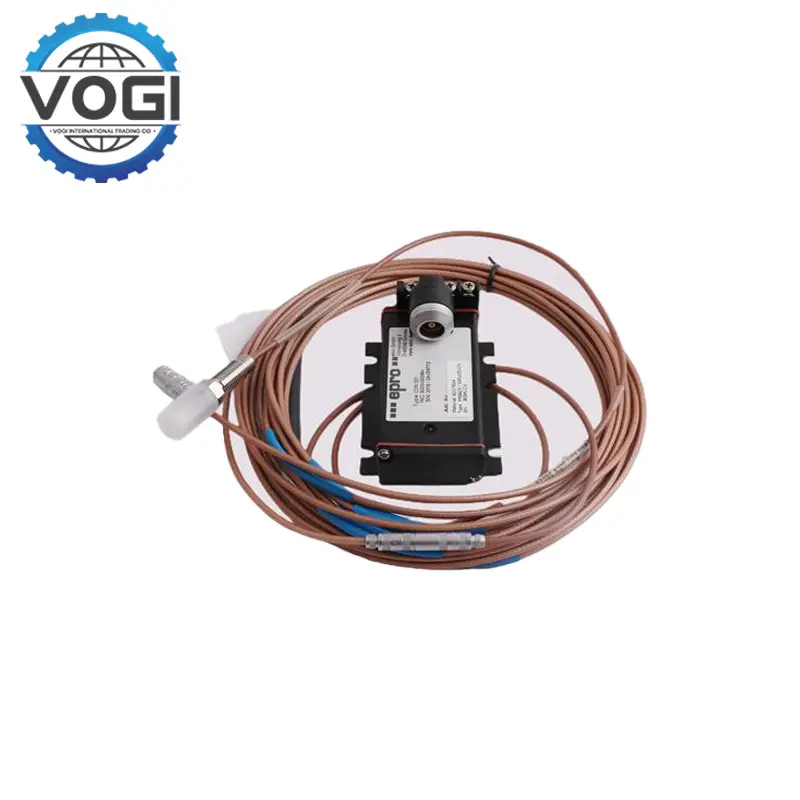

Epro PR6423/10R-030 8mm Eddy Current Sensor
Key SpecificationsVOGI
Thread: Reverse thread
Linear Measurement Range: 2 mm (80 mils)
Initial Air Gap: 0.5 mm (20 mils)
Incremental Scale Factor (ISF): ISO: 8 V/mm (203.2 mV/mil) ± 5% temperature range 0 to 45°C (+32 to +113°F)
Deviation from best fit straight line (DSL): ± 0.025 mm (± 1 mil) @ temperature range 0 to 45°C (+32 to +113°F)
Minimum Shaft Diameter: 25 mm (0.79”) .
Target Material (Ferromagnetic Steel) : 42CrMo4 (AISI/SAE 4140) Standard Other (On Request)
Protection Class: IP66, IEC 60529
Operating Temperature Range: Sensor incl. 1m Cable: -35 to +180°C (-31 to 356°F) Cable & Connector: -35 to +150°C (-31 to 302°F)
Material: Sensor Tip (PEEK Polyether Ether Ketone), Case (Stainless Steel) Cable (PTFE Polytetrafluoroethylene), Connector (Brass, nickel-plated)
Key FeaturesVOGI
Non-contact high accuracy: Epro PR6423/10R-030 is designed for micron-level shaft vibration and displacement detection, with an accuracy of ±0.1 mm and a sensitivity of 5.33 V/mm, ensuring early detection of rotor imbalance or bearing wear.
Extreme environment adaptability: Epro PR6423/10R-030 can operate in temperatures from -35°C to +180°C (sensor head) and can withstand instantaneous peaks up to +380°C, making it ideal for turbines and compressors in harsh industrial environments.
Plug-and-play integration: Epro PR6423/10R-030 is pre-calibrated with a 42CrMo4 steel shaft (SAE 4140 standard), requiring no on-site adjustment. With M10×1 threaded mounting and armored cable, it can be quickly retrofitted in old systems.
Freight Estimation(Part Of The Area)VOGI
Destination |
Freight |
Middle East |
$35 |
Southeast Asia |
$15 |
South Asia |
$46 |
South Africa |
$37 |
Europe and USA |
$24 |
Russia |
$42 |
APPLICATIONVOGI
Offshore Drilling Pumps: On a North Sea platform, 18 units monitored mud pump gearboxes through salt spray corrosion and -18°C conditions. The analog output's 0.01mA resolution detected cavitation 72 hours earlier than legacy systems, preventing $420k in downtime.
Cement Kiln Drives: A Middle Eastern plant installed these sensors on 6,000HP rotary kiln motors, using the built-in temperature compensation to negate false vibration readings from 260°C shell radiation. Maintenance intervals extended by 47% over 14 months.
Tidal Power Generators: Subsea-rated variants operate at 30-meter depths, with anti-biofouling coatings preventing marine growth on sensors. Scottish energy engineers leveraged the MODBUS TCP/IP interface to integrate with existing SCADA systems without protocol converters.
Mining Conveyors: Heavy-duty magnetic mounts withstand 50G impact loads from falling rocks. South African platinum mines reduced vibration-related belt failures by 63% after retrofitting 2.3km of conveyors with PR6423-10R units.
We also supply other models of this products:PR6423/10R-010,PR6423/13R-010.They are the same in specifications, features and application range. The difference is the total length of the cable or armored or not,refer to the table for details.
Module Number |
Cable Length |
PR6423/10R-010 |
5m |
PR6423/10R-030 |
8m |
PR6423/13R-010 |
5m(Armored cable) |
