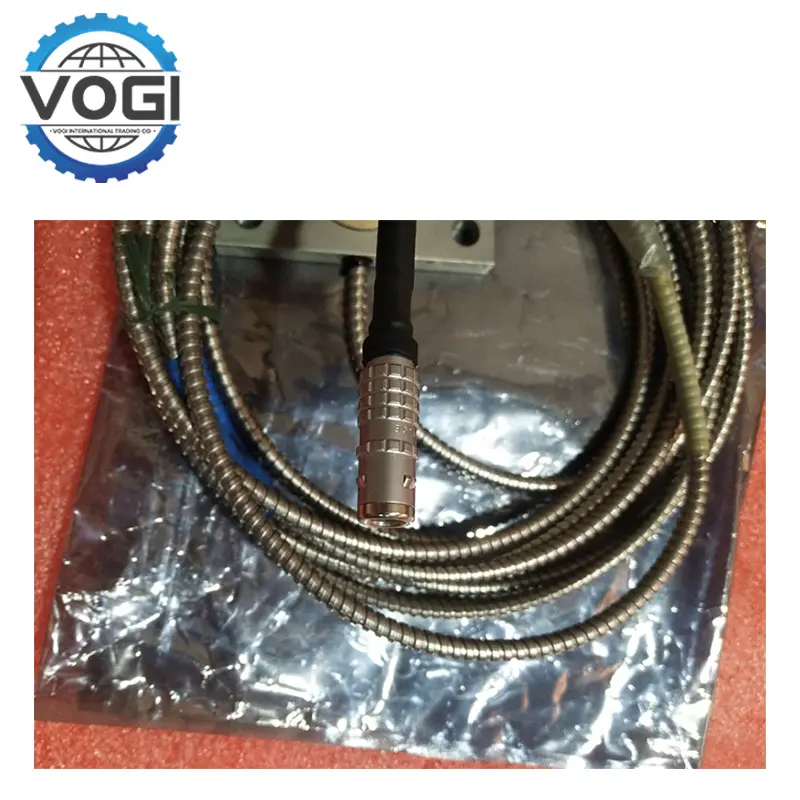

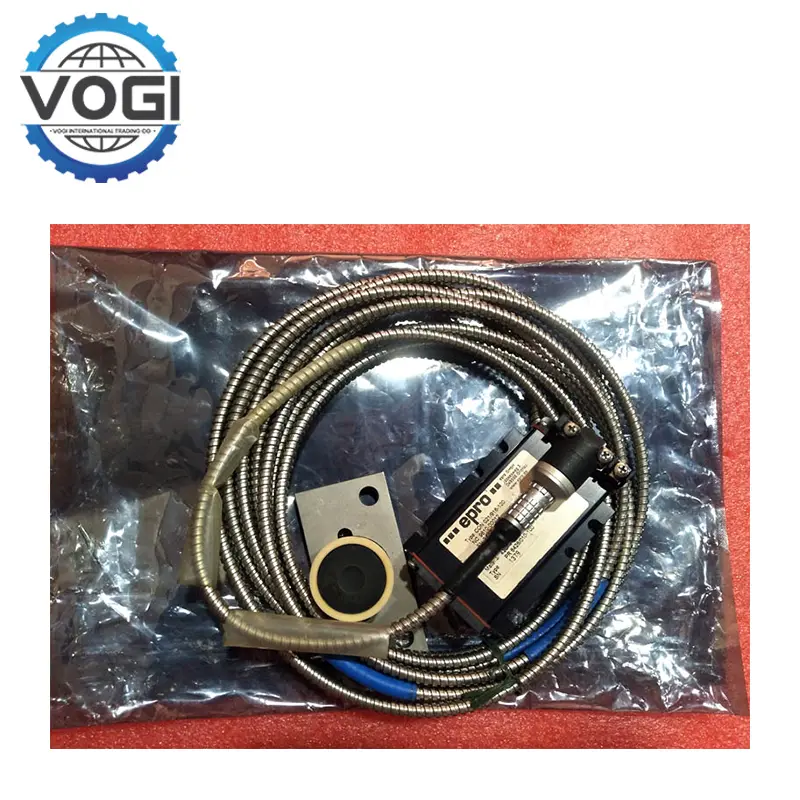

Epro PR6426/010-100 32mm Eddy Current Sensor
Key SpecificationsVOGI
Operating Temperature Range: -35 to 175°C (-31 to 347°F).
Temperature Excursions: 200°C (392°F),< 4 hours.
Maximum Cable Temperature: 200°C (392°F).
Temperature Error: -0.3%/100°K Zero Point; <0.15%/10°K Sensitivity.
Pressure Resistance To Sensor Head: 6,500 hpa (94 psi).
Shock and Vibration: 5g at 60Hz at 25°C.
Target/Surface Material: Ferromagnetic Steel (42 Cr Mo 4 Standard).
Maximum Surface Speed: 2,500 m/s (98,425 ips).
Shaft Diameter: ≥200 mm (7.87”).
Key FeaturesVOGI
High-Precision Dynamic Monitoring in Extreme Conditions: Epro PR6426/010-100 delivers ±0.75% linearity in detecting axial displacement and radial vibration up to ±10mm, ideal for critical turbomachinery like gas turbines and compressors. Pre-calibrated with 42CrMo4 steel (SAE4140 standard), it eliminates on-site adjustments, requiring only air gap optimization (0.8–2.5mm) for immediate deployment.
Intrinsic Safety for Hazardous Environments: Certified for EEx ib IIC T6/T4 zones, Epro PR6426/010-100 operates safely in explosive atmospheres such as oil refineries and gas pipelines. Its IP67-rated stainless steel housing withstands temperatures from -35°C to +180°C, while Kevlar-armored cables resist abrasion and chemical corrosion in offshore rigs or coastal power plants.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$43 |
|
Southeast Asia |
$16 |
|
South Asia |
$57 |
|
South Africa |
$46 |
|
Europe and USA |
$28 |
|
Russia |
$52 |
APPLICATIONVOGI
Geothermal Plant Turbines: Installed on steam turbine bearings, Epro PR6426/010-100 detects sulfur-rich vapor-induced corrosion vibrations, triggering acid wash cycles to extend component lifespan in 200°C+ geothermal brines.
Agricultural Combine Harvesters: Mounted on threshing rotor shafts, this sensor identifies grain jam-induced torque spikes, automatically reversing rotor motion to prevent mechanical seizures. Epro PR6426/010-100’s IP69K-rated casing resists abrasive dust and crop debris.
Subsea Pipeline Compressors: Deployed at 500m depths, it monitors vibration harmonics in methane hydrate pumps, alerting offshore crews to hydrate blockages via real-time acoustic telemetry.
•We also supply other models of this products: PR6426/010-140.They are the same in specifications, features and application range. The difference is the total length of the cable,refer to the table for details.
Module Number |
Cable Length |
PR6426/010-140 |
10m |
PR6426/010-100 |
4m |
