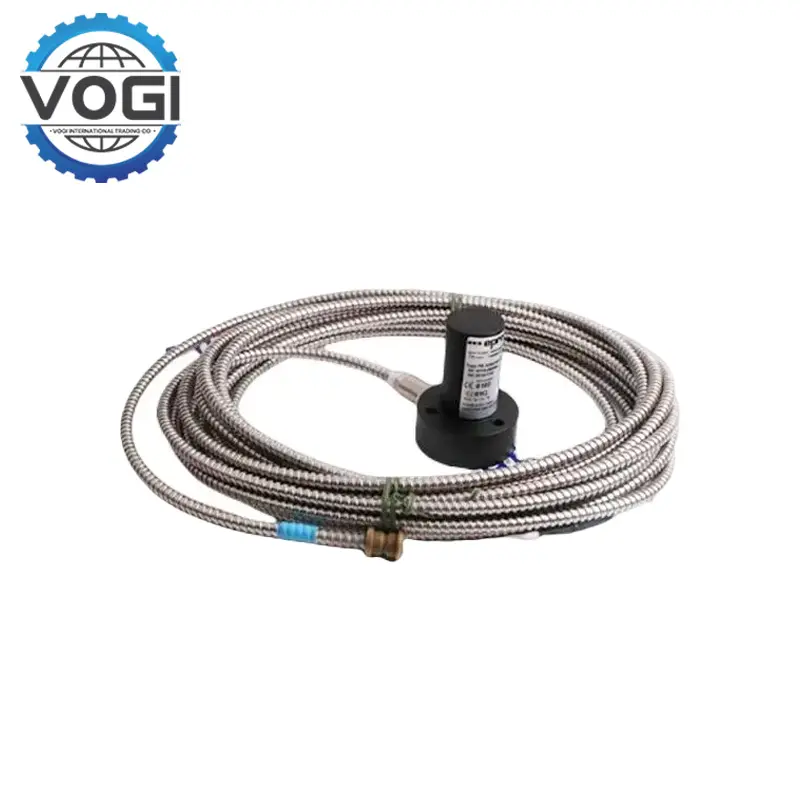

Epro PR9268/202-100 Electrodynamic Velocity Sensor
Key SpecificationsVOGI
Sensitivity: 28.5 mV/mm/s (723.9 mV/in/s).
Frequency Range: 4 to 1000Hz.
Natural Frequency: 4.5Hz ± 0.75Hz at 20°C (68°F).
Transverse Sensitivity: 0.13 (PR9268/20x-x00) at 110Hz 0.27 (PR9268/30x-x00) at 110Hz.
Vibration Amplitude (Mechanical Limit): 3000µm (4000µm) peak-peak.
Amplitude Linearity: < 2%.
Maximum Acceleration: 10g (98.1 m/s2) peak-peak continuous; 20g (196.2 m/s2) peak-peak intermittent.
Maximum Transverse Acceleration: 2g (19.62 m/s2).
Resistance: 1875Ω ± 10%.
Inductance: ≤ 90 mH.
Active Capacity: < 1.2 nF.
Key FeaturesVOGI
Precision Vibration Measurement: Epro PR9268/202-100 is engineered for high-accuracy vibration monitoring in industrial machinery. Utilizing a seismic mass and electromagnetic coil system, it generates voltage signals proportional to vibration velocity (4–1000 Hz frequency range), ensuring reliable data for predictive maintenance and fault detection. Its low transverse sensitivity (<0.13 mV/mm/s) guarantees minimal interference during horizontal or vertical operation.
Enhanced Signal Stability: The sensor’s damping system (damping factor ~0.56) and linear amplitude characteristics (<2% deviation) ensure stable output even under extreme conditions. With a high sensitivity of 28.5 mV/mm/s (±5%), it delivers precise readings for critical equipment health monitoring.
Seamless System Integration: Compatible with epro’s MMS 3000/6000 monitoring systems, the Epro PR9268/202-100 supports direct connectivity for real-time diagnostics. Its low-impedance measurement coil minimizes signal distortion, enhancing reliability in complex industrial setups.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$43 |
|
Southeast Asia |
$16 |
|
South Asia |
$57 |
|
South Africa |
$46 |
|
Europe and USA |
$28 |
|
Russia |
$52 |
APPLICATIONVOGI
Smart Agriculture Irrigation Networks: Integrated into automated irrigation systems, this sensor tracks water pressure variations, enabling precise control for large-scale farms. Epro PR9268/202-100’s weatherproof build ensures durability in outdoor installations, reducing maintenance costs.
Urban Tunnel Ventilation Control: Deployed in underground transit systems, it regulates airflow by measuring pressure differentials in real time. The device’s shock-resistant components and ±0.5% accuracy make Epro PR9268/202-100 ideal for high-vibration environments.
•We also supply other models of this products: PR9268/206-100.They are the same in specifications, features and application range. The difference is the total length of cable ,refer to the table for details.
•We also supply other models of this products: PR9268/206-100.They are the same in specifications, features and application range. The difference is the total length of cable ,refer to the table for details.
Module Number |
cable Length |
PR9268/206-100 |
8m(armored) |
PR9268/202-100 |
8m(non-armored) |
