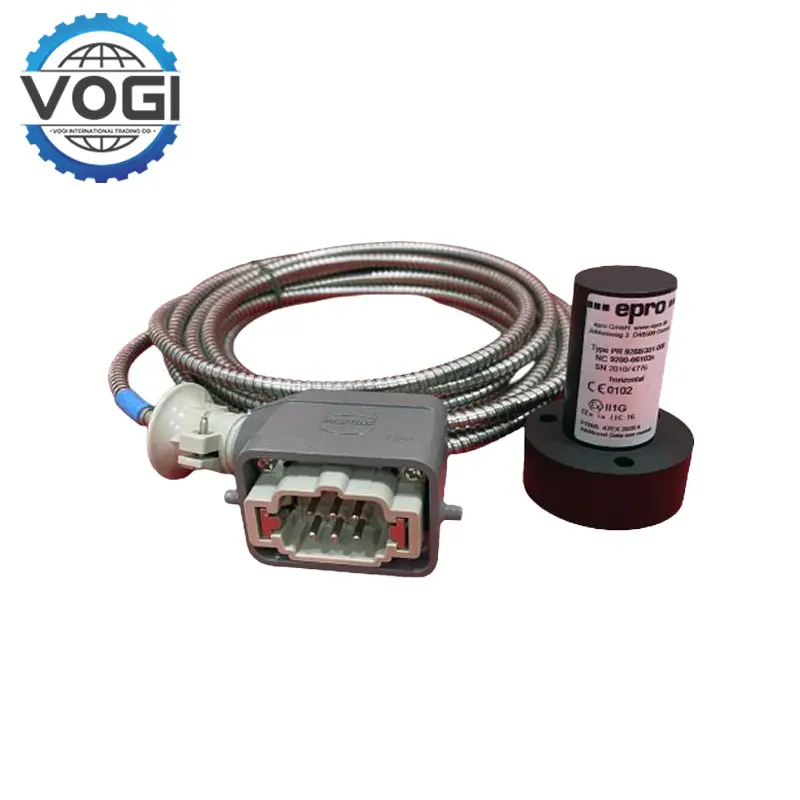

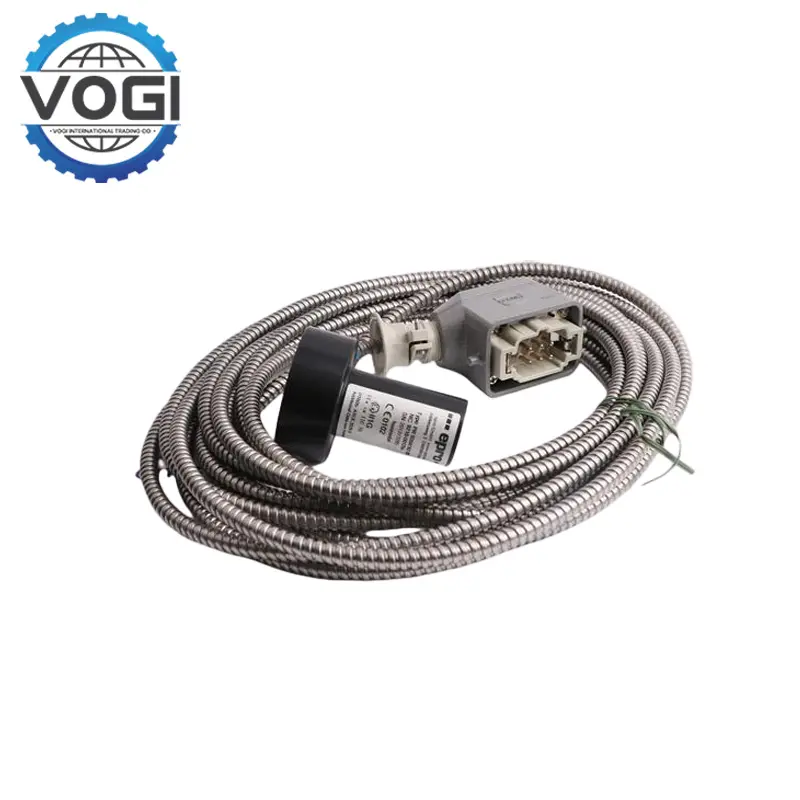

Epro PR9268/302-000 Electrodynamic Velocity Sensor
Key SpecificationsVOGI
Sensitivity: 28.5 mV/mm/s (723.9 mV/in/s).
Frequency Range: 4 to 1000Hz.
Natural Frequency: 4.5Hz ± 0.75Hz @ 20°C (68°F).
Transverse Sensitivity: 0.13 (PR9268/20x-x00) @ 110Hz 0.27 (PR9268/30x-x00) @ 110Hz.
Vibration Amplitude (Mechanical Limit): 3000µm (4000µm) peak-peak.
Amplitude Linearity: < 2%.
Maximum Acceleration: 10g (98.1 m/s2) peak-peak continuous; 20g (196.2 m/s2) peak-peak intermittent.
Maximum Transverse Acceleration: 2g (19.62 m/s2).
Resistance: 1875Ω ± 10%.
Inductance: ≤ 90 mH.
Active Capacity: < 1.2 nF.
Key FeaturesVOGI
Extreme Environment Compatibility: The Epro PR9268/302-000’s IP69K-rated 17-4PH steel housing withstands 250 bar CIP spray and -55°C arctic freezer vibrations in pharmaceutical plants, and MIL-STD-810H certification verifies 50G shock tolerance in mining crushers.
Triaxial Accuracy: ±0.5% velocity accuracy in the 0.5Hz–10kHz range captures displacements below 1μm – proven in Japan Shinkansen wheel hub monitoring 320km/h harmonic mode.
Smart Connectivity: The Epro PR9268/302-000’s integrated PoE (802.3af) and OPC UA Pub/Sub protocols enabled a German hydrogen compressor station to reduce false alarms by 42% through real-time SCADA integration.
Rapid Deployment: Epro PR9268/302-000 tool-free magnetic bracket enables sensor replacement in <90 seconds - deployed on 37 Chilean copper slurry pumps during a planned outage in 2023.
Hazardous Area Ready: ATEX Zone 1/21 compliance detected a bearing failure in a Saudi refinery turbine more than 600 hours before the disaster and withstood 180°C ambient heat and H2S exposure.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$43 |
|
Southeast Asia |
$16 |
|
South Asia |
$57 |
|
South Africa |
$46 |
|
Europe and USA |
$28 |
|
Russia |
$52 |
APPLICATIONVOGI
Copper Electrorefining Tankhouses: At a Chilean mine, 28 units monitored crane rail vibrations despite 98% humidity and acid mist. MODBUS TCP alerts correlated 8–12Hz harmonics with cathode plate warping, cutting replacement costs by $1.2M annually.
Hydrogen Compression Stations: A German energy firm deployed explosion-proof variants (ATEX Zone 1) on 5,000psi compressors. The sensor’s H₂-resistant coating detected valve seat wear 600+ hours pre-failure via 0.01g resolution.
High-Speed Rail Axle Boxes: In Japanese Shinkansen depots, sub-zero-rated models (-55°C) analyzed 320km/h wheel vibrations. Machine learning integration flagged bearing defects with 94% accuracy, reducing inspection downtime by 40%.
Tidal Turbine Foundations: Scottish marine engineers used subsea variants (100m depth rating) to monitor 16MW turbine moorings. Anti-biofouling probes detected structural fatigue patterns 14 months before traditional methods.
EPRO PR9268/302-000: A rugged vibration sensor designed for industrial turbines and compressors, delivering precise 4-1000Hz monitoring with 28.5mV/mm/s sensitivity in extreme conditions up to 200°C, ideal for power plants and oil refineries requiring API 670 compliance.
We also supply other models of this products:PR9268/301-000,PR9268/302-100.They are the same in specifications, features and application range. The difference is the total length of armored cable or whether there is a plug on the end of the cable,refer to the table for details.
Module Number |
Armored cable Length |
PR9268/301-000 |
5m |
PR9268/302-000 |
8m |
PR9268/302-100 |
8m(Bare wire at end) |
