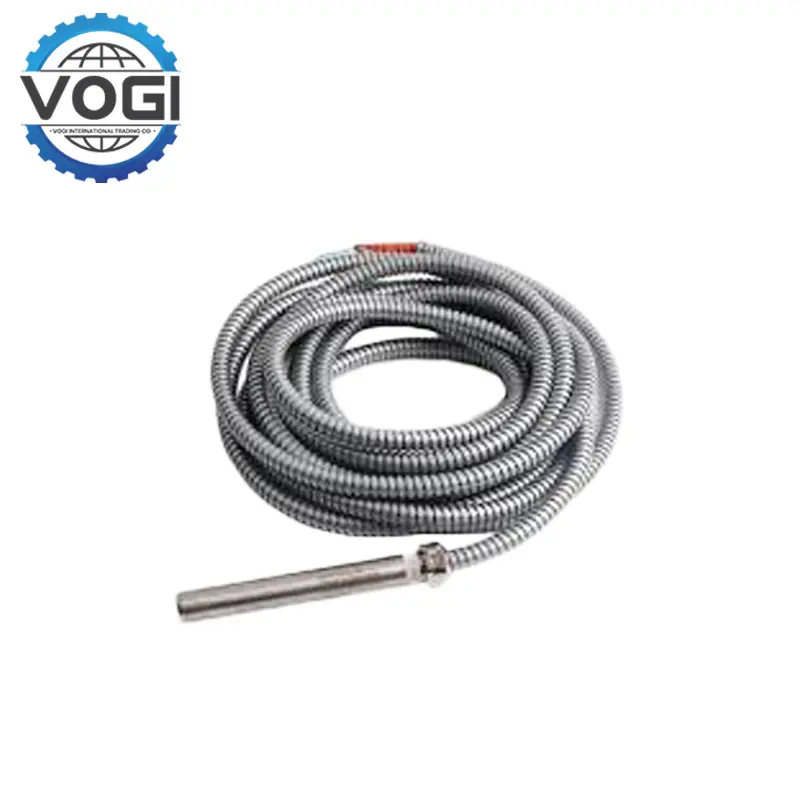

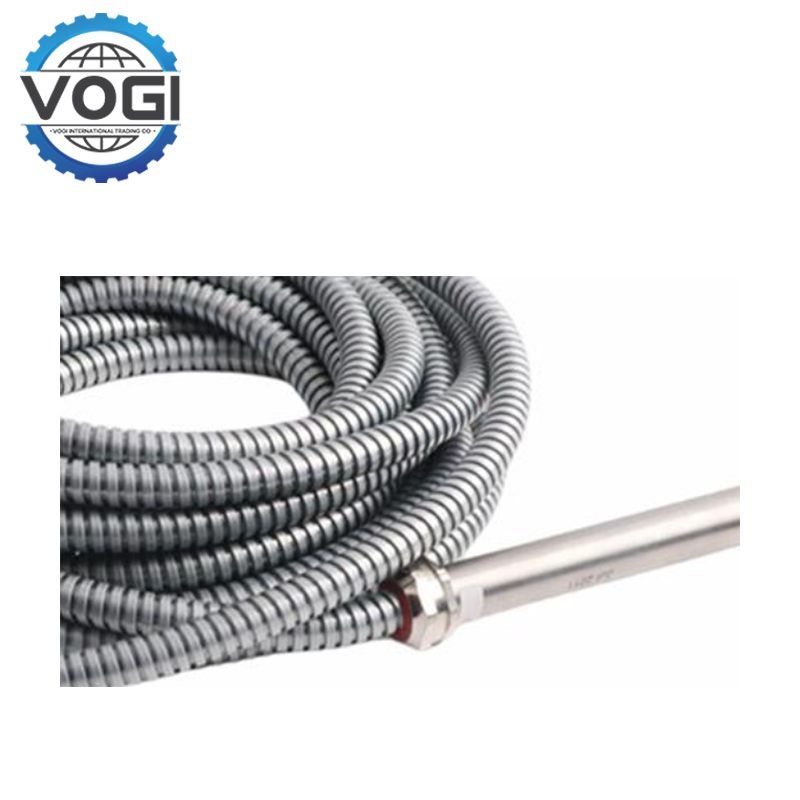

Epro PR9376/010-011 Hall Effect Speed/Proximity Sensor
Key SpecificationsVOGI
Output: 1 AC cycle per revolution/gear tooth.
Rise/Fall Time: 1 µs.
Output Voltage (12 VDC at 100 Kload): High >10 V / Low.
Air Gap: 1 mm (Module 1); 1.5 mm (Module ≥2).
Maximum Operating Frequency: 12 kHz (720,000 cpm).
Trigger Mark Limited to: Spur Wheel, Involute Gearing Module 1; Material ST37.
Target/Surface Material: Magnetic soft iron or steel (non stainless steel).
Reference Temperature: 25°C (77°F).
Operating Temperature Range: -25 to 100°C (-13 to 212°F).
Storage Temperature: -40 to 100°C (-40 to 212°F).
Sealing Rating: IP67.
Power Supply: 10 to 30 VDC at max. 25mA.
Resistance: Max. 400 Ohms。
Material: Sensor – Stainless steel; Cable – PTFE。
Key FeaturesVOGI
Non-Contact High-Precision Measurement: Epro PR9376/010-011 utilizes advanced photoelectric technology to deliver accurate rotational speed monitoring without physical contact. With a wide measurement range (adjustable based on shaft diameter and speed) and sensitivity up to -68dB, it ensures reliable data output even at low speeds or in challenging industrial environments.
Obust Construction for Harsh Conditions: Encased in stainless steel and rated IP67, Epro PR9376/010-011 withstands temperatures from -30°C to +100°C. Its PTFE-insulated armored cable (3m/5m options) resists oil, dust, and moisture, making it ideal for power plants and heavy machinery.
Fast Response and Broad Compatibility: Featuring a rapid 1 µs response time and compatibility with 8–31.2 VDC power, Epro PR9376/010-011 integrates seamlessly with PLCs and SCADA systems. It generates one AC pulse per gear tooth, enabling real-time speed monitoring for predictive maintenance.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$35 |
|
Southeast Asia |
$15 |
|
South Asia |
$46 |
|
South Africa |
$37 |
|
Europe and USA |
$24 |
|
Russia |
$42 |
APPLICATIONVOGI
Food Processing Sterilization Chambers: In high-temperature retort systems, Epro PR9376/010-011 tracks steam pressure up to 25 bar during canned food sterilization. Its FDA-compliant diaphragm and 150°C thermal endurance prevent biofilm formation, ensuring hygienic batch processing for dairy and meat plants.
Arctic Research Station HVAC Systems: Deployed in sub-zero environments, this sensor maintains ±0.15% FS accuracy at -55°C, regulating air pressure in polar habitat modules. Epro PR9376/010-011’s frost-resistant housing and self-heating circuit eliminate ice buildup critical for remote scientific missions.
Semiconductor Cleanroom Vacuum Controls: Integrated into wafer fabrication tools, Epro PR9376/010-011 monitors ultra-low pressures (0.1–10 mbar) with anti-particle contamination design. Its galvanic isolation and RS-485 output sync with ASML lithography equipment, achieving 99.9% process repeatability.
•We also supply other models of this products: PR9376/010-001.They are the same in specifications, features and application range. The difference is the total length of cable ,refer to the table for details.
•We also supply other models of this products: PR9376/010-001.They are the same in specifications, features and application range. The difference is the total length of cable ,refer to the table for details.
Module Number |
cable Length |
PR9376/010-011 |
5m |
PR9376/010-001 |
3m |
