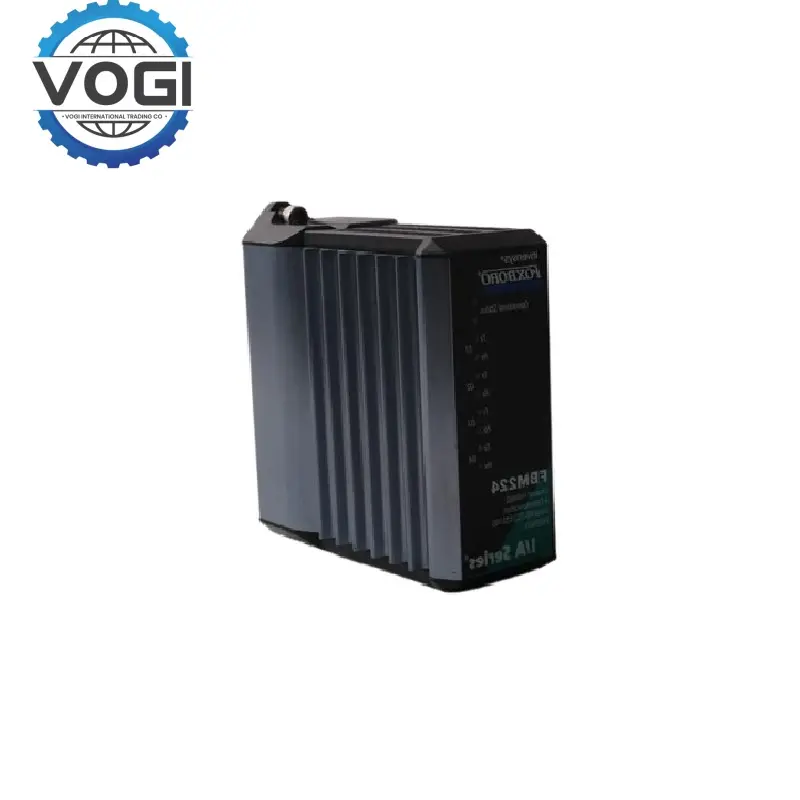

FOXBORO 0303475-SF0622A211 analog modules

Power input Main power: 24VDC ±15%

Backup battery: 12V/7Ah lead-acid battery

Communication interface: RS-485/Modbus protocol, supports integration with host computer or BMS system

Programmable input: 16 dry contacts (voltage-free signal)

Relay output: 8 (contact capacity 5A/250VAC)

Device capacity: supports up to 256 detection devices or modules

Operating temperature: -10°C to +55°C

Humidity range: ≤95% RH (non-condensing)

Protection level: IP54 (dust and splash proof)

Signal Processing: FOXBORO 0303475-SF0622-A211 is capable of handling a wide range of signal processing techniques. It can accept analog signals from temperature, pressure or flow sensors and convert them into digital signals for further processing. The digital format allows for more precise analysis and control operations.

Control Capability: Control operations can be performed based on the processed signals. It will send the correct control signal to the actuator (e.g., PID actuator, such as a valve or motor) to modify the operation of the system. For example, if it detects that the temperature deviates from the set point, it will send a signal to the heating/cooling element to prevent the temperature from fluctuating above/below the optimal range.
Data Communication:FOXBORO 0303475-SF0622-A211 includes built-in communication interfaces for exchanging information with other devices or systems. Ethernet, Profibus and Modbus are typical examples of this type of communication. This data exchange is very useful for integration into industrial networks to simplify the management and control of industrial processes.

Diagnostic function: FOXBORO 0303475-SF0622A211 has diagnostic function. It can continuously monitor its operating status and the status of any connected components. When it detects an abnormal situation, it will feedback the message according to the specific situation.

Industrial Automation: FOXBORO 0303475-SF0622-A211 can be used throughout the industrial automation process. In the chemical manufacturing scenario, for example, the device can accurately monitor the temperature, pressure, and flow of chemicals into the reaction vessel, effectively ensuring the quality and safety of the production process.

Power Generation: In the field of power generation: In the operation system of power plants, FOXBORO 0303475 - SF0622 - A211 plays a key role, which can comprehensively monitor all aspects of power generation equipment and help achieve precise control. The proposed control system will optimize the performance of turbine generators and other related equipment. Such systems also participate in grid connection and distribution control to achieve a stable power supply.

Petrochemical Industry: In the petrochemical industry, these systems are suitable for refineries and chemical processing plants. They will manage many complex processes from crude oil extraction to final petrochemical products. They control the precise conditions of the reaction, monitor the storage and transportation of chemicals within the company, and ensure that the company complies with safety and environmental regulations.
