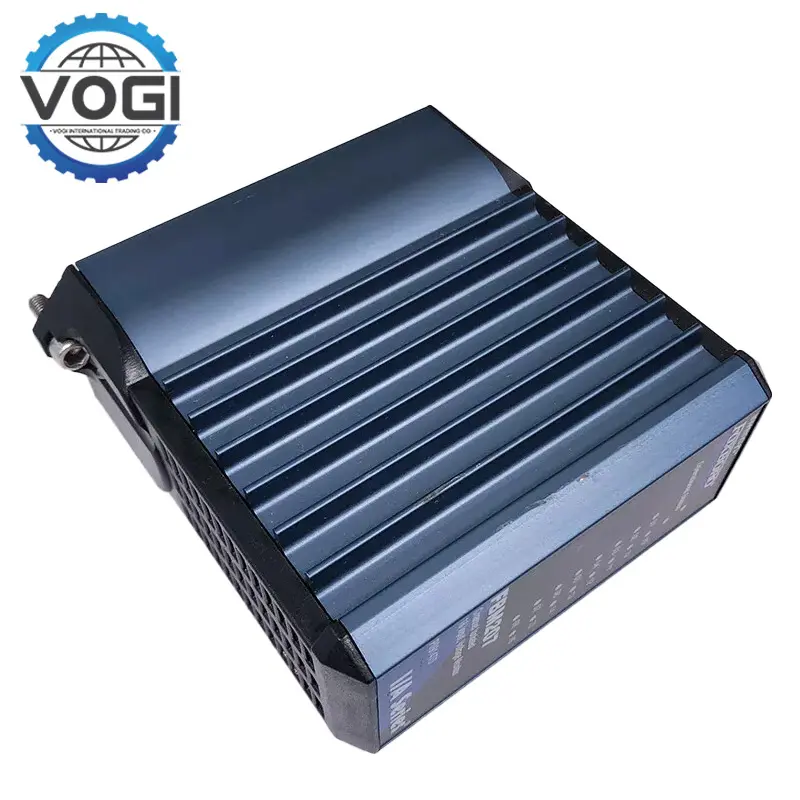

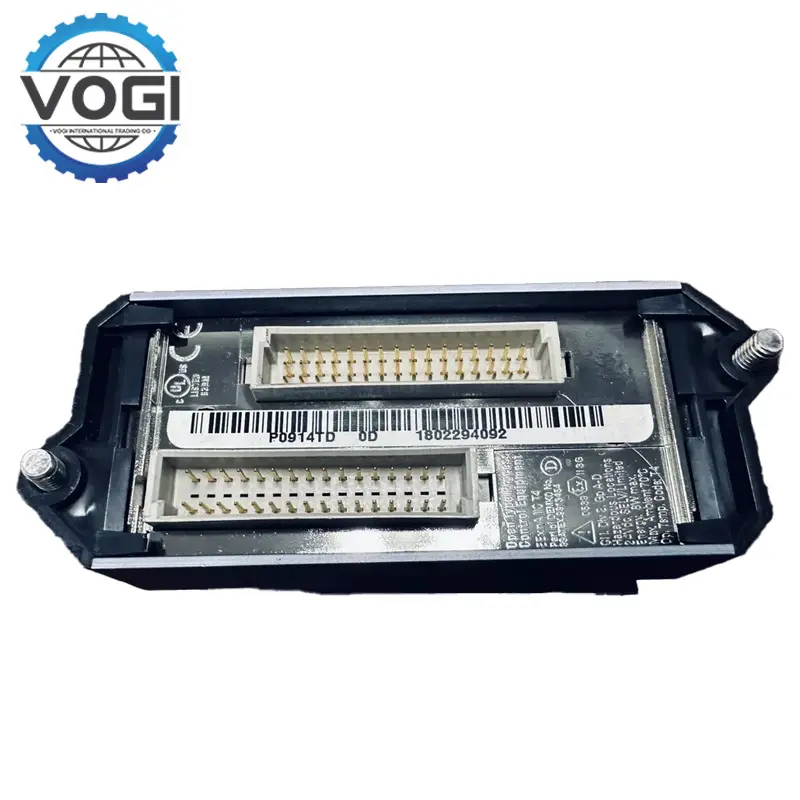

Foxboro FBM207 P0914TD Channel Isolated 16 Input Voltage Monitor
Key SpecificationsVOGI
Nominal Voltage: 24 VDC.
Voltage Range: 20 - 30 VDC.
Maximum Voltage: 30 VDC.
Voltage Drop: <1.5 VDC .
Power Module Load: <10 watts.
Maximum Current Rating: 1.4 mA per channel
Minimum Required Load: 10 mA.
Load Leakage: 2 mA maximum.
Point Isolation: 1500 VDC.
Input Type: TMR (Triple Modular Redundancy), discrete input signals.
Number of Input Signals: 16, isolated and configurable.
Key FeaturesVOGI
Modular and Scalable Design: Foxboro FBM207 Supports both digital (discrete) and analog signals; Up to 16 digital outputs or 8 analog outputs per module (varies by model, e.g., P0914TD);Modules can be replaced online without system downtime, critical for continuous process industries.
Robust Communication and Integration: Integrates with Foxboro I/A Series DCS via FBM (Field Bus Module) protocol; Supports dual-redundant communication for high availability in critical processes; Real-time monitoring of channel health, including open-circuit, short-circuit, and overload detection.
Safety and Redundancy: Available in single or redundant configurations, ensuring continuous operation during hardware failures. Redundant power switching occurs in <10 ms; Operates reliably in Class G3 (harsh) environments, with a temperature range of -20°C to +70°C and resistance to humidity, vibration, and electromagnetic interference; UL/UL-C certified for industrial safety and EMC standards.
Application Flexibility: Foxboro FBM207 detects overvoltage/undervoltage conditions in power systems, transformers, and industrial equipment, triggering alarms or protective actions; Verifies switch/relay statuses (open/closed) for safety interlocks in oil and gas, chemical processing, and power generation.
Modular and scalable design: In the case of high voltage inputs, voltage attenuation, optical isolation, and external power connections may be provided; Modules to be installed on DIN rails or in 19-inch racks for flexible deployment in control panels; Configurable with varying input/output channels and protocols to meet diverse automation needs.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$35 |
|
Southeast Asia |
$15 |
|
South Asia |
$67 |
|
South Africa |
$37 |
|
Europe and USA |
$27 |
|
Russia |
$43 |
APPLICATIONVOGI
oltage Monitoring and Alarm Systems: V/alarm systems monitor the voltage levels of motors, transformers and power supplies to ensure overvoltage or undervoltage conditions do not occur. Triggers relay based alarms for immediate fault response Tracks battery voltage in UPS and renewable energy systems to help ensure stable operation and long life.
Contact Sensing and Safety Interlocks: Foxboro FBM207 detects contact statuses (open/closed) of switches, relays, or valves in hazardous environments (e.g., oil refineries, chemical plants). Ensures safe shutdowns during equipment malfunctions; Integrates with Triple Modular Redundancy (TMR) architectures for fault-tolerant operations in nuclear plants or power generation systems.
Process Control and Data Acquisition: Processes 4–20 mA analog inputs from sensors for real-time process adjustments in chemical processing or water treatment plants; Collects voltage or contact status data for historical analysis and regulatory compliance. Interfaces with SCADA/DCS systems via Modbus or RS-485 protocols.
Industrial Automation and Manufacturing：Coordinates safety interlocks and equipment synchronization in automotive or electronics manufacturing. Uses 16 discrete input channels to monitor conveyor belts, robotic arms, and door sensors; Validates equipment parameters to ensure product consistency and reduce defects.
Energy Management and Environmental Monitoring: Foxboro FBM207 monitors transformer and distribution line voltages in electrical grids to prevent outages and balance loads; Tracks emissions-related parameters in industrial facilities to meet environmental regulations.
