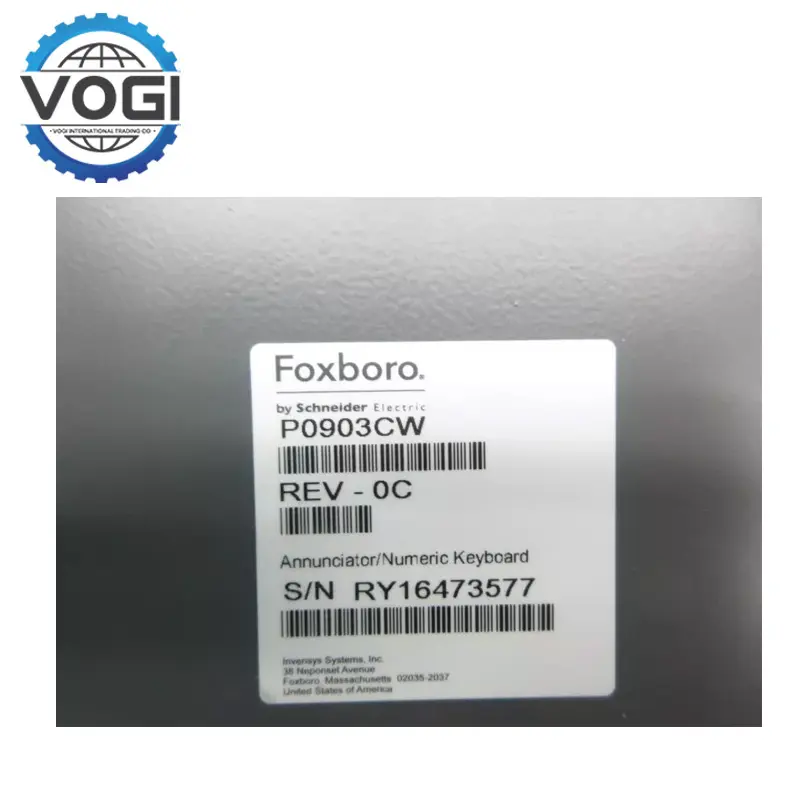

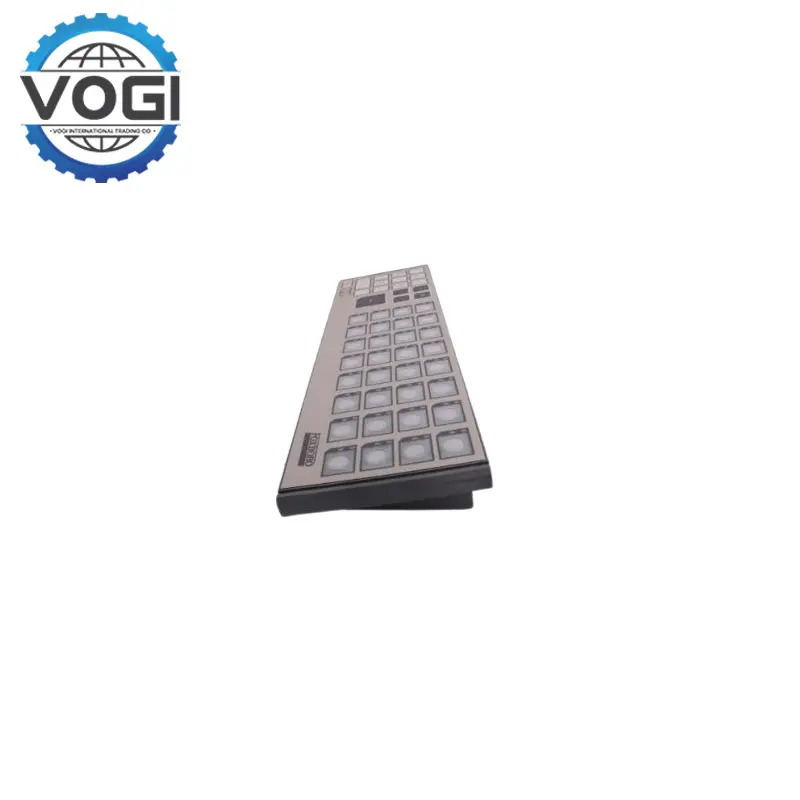

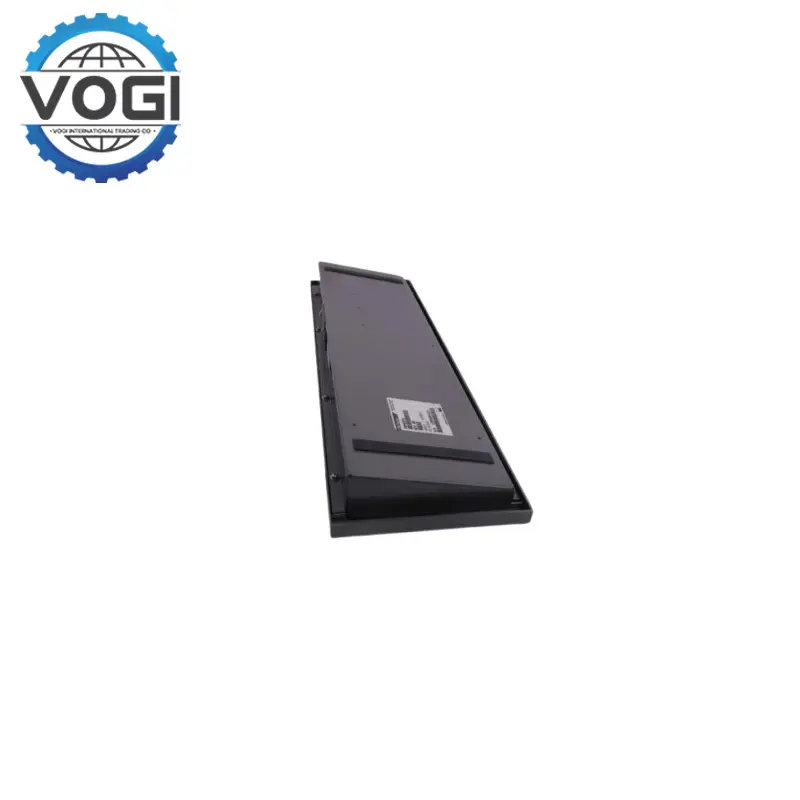

FOXBORO P0903CW Numeric Keyboard
Foxboro

FOXBORO P0903CW Numeric Keyboard

  • Brand FOXBORO
  • Module Number P0903CW
  • Country Of Origin USA
  • Dimension 62.5cm*28.8cm*10cm
  • Weight 3.8kg
  • HS Code 8538900000
  • Condition Brand New
  • Certificate COO TEST REPORT WARRANTY LETTER
  • Warranty 12 Months
  • Inventory Qty 7
  • Payment Term T/T

Key SpecificationsVogi

Power Parameters:
Power Supply Voltage: 27.5 V DC, ±5% at the input connector.
Power Consumption: 3.0 - 6.0 watts.
Signal Parameters:
Audio Output Signal: 0.10 - 0.90 V p-p, varies with load conditions.
Hardware Parameters:
LED/Switch Pairs: 32, arranged in an 8-column by 4-row matrix.
Numeric Keypad: 16 keys.
Num Lock LED: 1.
Communication Parameters:
Communication Interface: Serial connection, connected via a graphic controller input output (GCIO) interface.

Functional FeaturesVogi

Signal Processing: Manages input and output signals (both analog and digital), guaranteeing precision in data acquisition and control.
Data Acquisition: FOXBORO P0903CW collects and processes data from sensors and instruments for real-time monitoring and control.
Communications Integration: Provides seamless integration with Foxboro I/A Series systems and with industrial networks.
Built-in Diagnostics And Monitoring: To help with faults and improved system reliability.
Simple Operation: It is equipped with 32 LED/switch pairs and a 16-key numeric keypad, which is easy to operate and suitable for quickly entering numeric data into the system.


Freight Estimation(Part Of The Area)Vogi

Destination

Freight

Middle East

$90

Southeast Asia

$24

South Asia

$120

South Africa

$97

Europe and USA

$53

Russia

$110



Application Areas
Vogi

Oil and Gas: Monitor and control pressure, temperature, and flow in pipelines, refineries, and offshore platforms.
Power Generation: Enables accurate control over turbines, boilers, and generators within power plants.
Chemical and Petrochemical: Ensuring signalled reliability in reactors, distillation columns and others.
Water and Wastewater Treatment: FOXBORO P0903CW monitors and regulates pumps, valves and filtration systems at treatment facilities.
Manufacturing: Controls process variables in production lines to ensure quality and efficiency.

AdvantagesVogi

Audible and Visual Alarms: Features the audio alarm function with multi-pitched output and an external audio output jack. Coupled with the LED indication, it can attract the attention of the user better to the system alarms and priorities of the process alarms.
Stationary Operation: In the field control room setting. FOXBORO P0903CW can work stably for a long time with low failure rate through strict quality control and testing.
Clear Indication: The 32 LED/switch pairs are arranged in an 8-column by 4-row matrix, with polyester labels that can be inserted, making the indication clear and facilitating the identification of various statuses.
