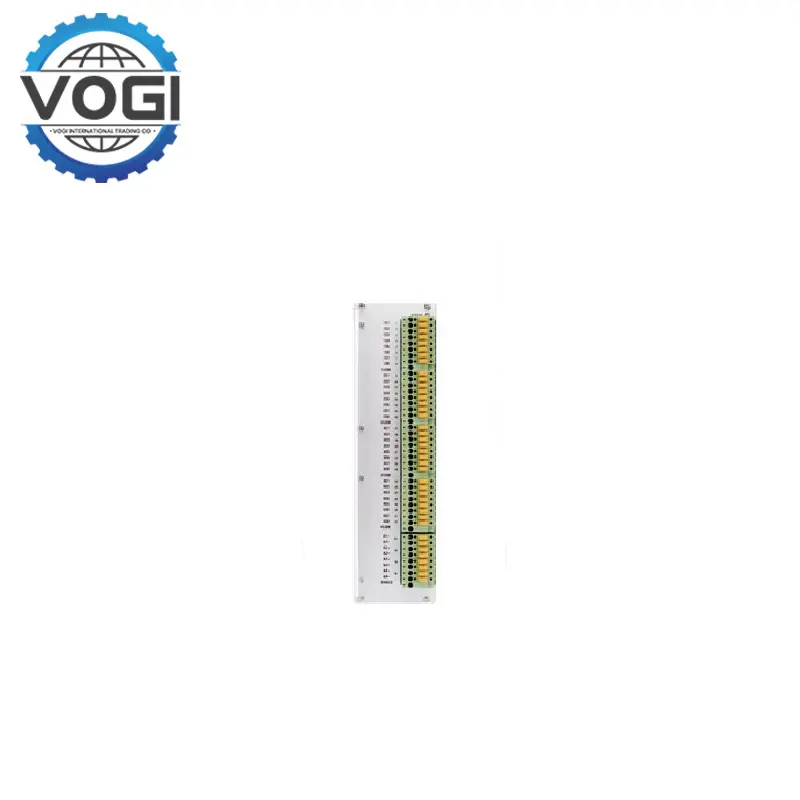

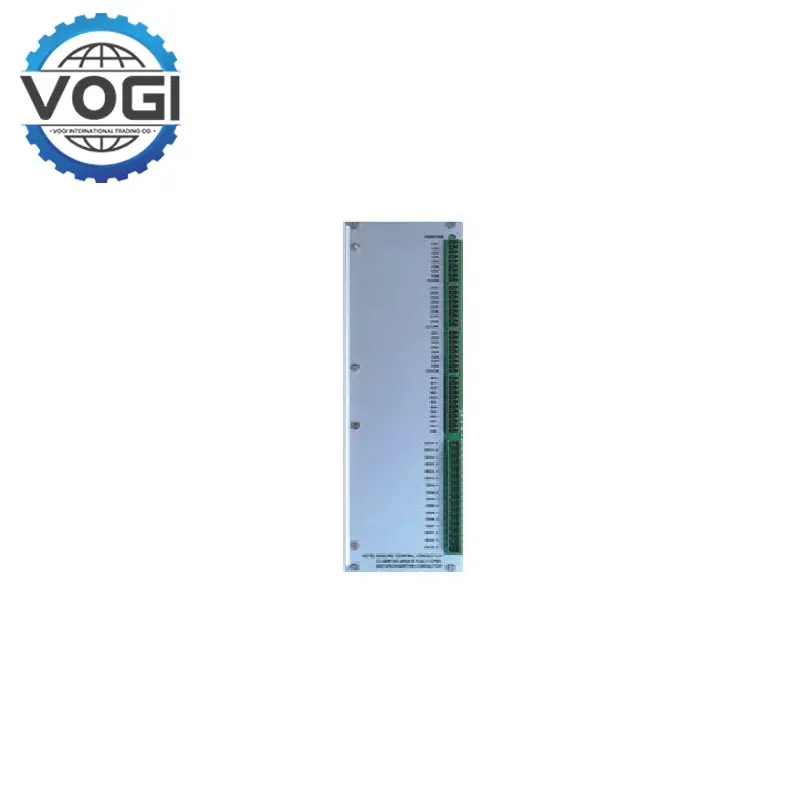

FOXBORO RTU50 Remote Terminal Unit
Key SpecificationsVogi
1.Intake Voltage: 18 - 164 V DC .
2. Power Consumption: 130 W input max .
3. Operating Temperature Range: -20°C to 60°C.
4. Storage Temperature Range: -40°C to 85°C.
5. Operating Humidity Range: 5% to 95%.
6. Network Protocols: DNP3 slave, DNP3 master, IEC 60870-5101 master.
7. Serial Ports: One dedicated RS-232 diagnostic port and one RS-232/RS-485 programmable serial port.
Functional FeaturesVogi
1.Software Configurability: Digital inputs programmable as accumulators, status monitors, or momentary detectors. Analog inputs enable auto-calibration and current-loop resistor configuration.
2. Input Protection: Digital inputs include optical isolation, filtering, and surge protection with de-bounce circuitry. Analog inputs feature noise suppression and multiplexed A/D conversion.
3. Output Flexibility: Configurable pulse/latched relays with hardware/software monitoring and security checks for control operations.
4.Security & Integrity: Pre-operation validation logic and adjustable output durations prevent errors, ensuring system reliability.
Freight Estimation(Part Of The Area)Vogi
|
Destination |
Freight |
|
Middle East |
$42 |
|
Southeast Asia |
$15 |
|
South Asia |
$55 |
|
South Africa |
$47 |
|
Europe and USA |
$27 |
|
Russia |
$50 |
Application AreasVogi
Power Systems: Substation monitoring of circuit breakers, transformers, and power lines; grid distribution and generation controls.
Oil & Fuel: It optimizes safety at wellheads, pipelines, and compressor stations by monitoring equipment efficiency.
Water Management: Manages pumps, valves, and treatment processes to maintain water quality and compliance with the operational needs.
Industrial Automation: Maximizes production in manufacturing, chemicals, and pharmaceuticals through equipment monitoring and data collection.
AdvantagesVogi
High Anti - Interference Ability: It protects the device from the external electromagnetic interference to ensure the input signal accuracy and stability.
Multiple Communication Protocols Supported: Its adaptability allows it to connect quickly with a range of central control systems or other devices, ensuring compatibility within diverse industrial automation ecosystems.
Different Modes of Communication: It enables users to choose communication methods flexibly based on different application scenarios, meeting the needs of both short - distance and long - distance communication.
Powerful Data Processing Ability: It can perform data filtering, conversion, calculation, etc. to meet the different data processing requirements of different applications.
