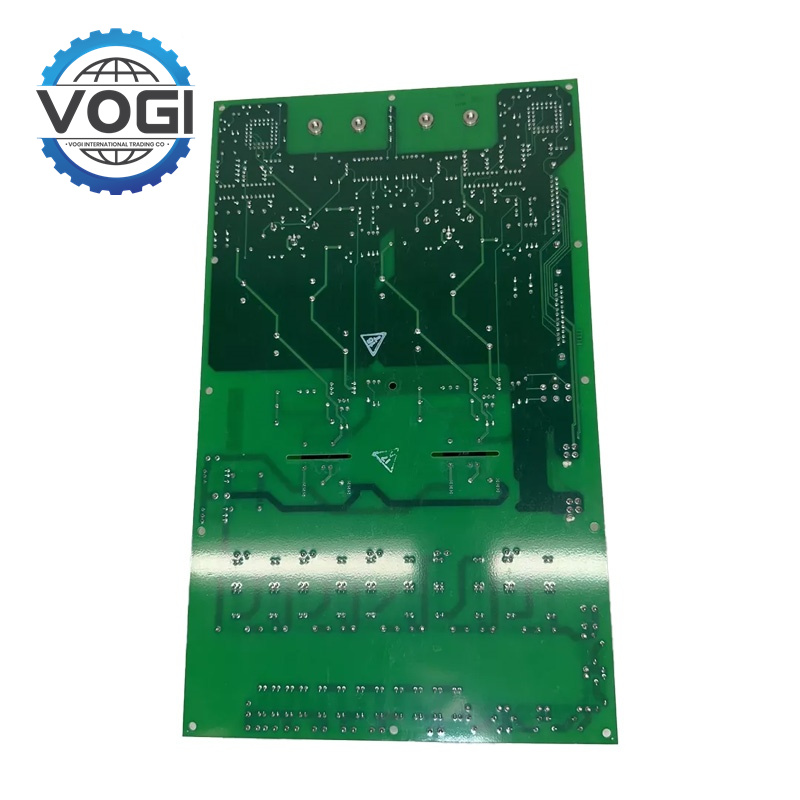

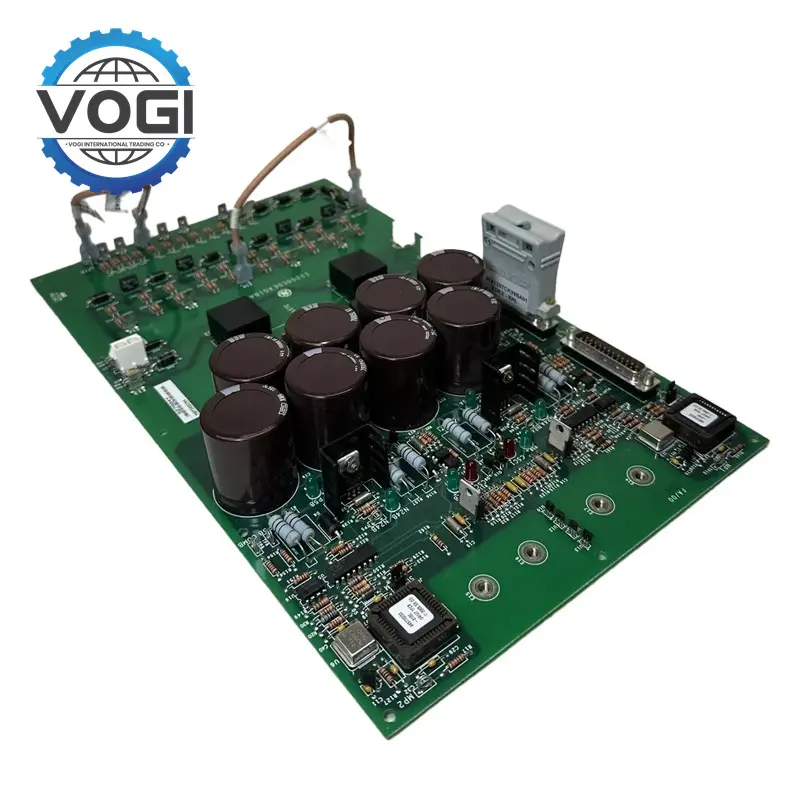

GE 151X1207CK02SA02 Exciter De Excitation Control Board
Key SpecificationsVogi
1.Analog Inputs:
Channels: 8 isolated analog input channels
Input Ranges: Supports 0–5V, 0–10V, ±5V, ±10V, and 4–20mA signals, ensuring compatibility with a wide range of sensors.
Accuracy: ±0.05% of full scale (FS), providing highly accurate measurements.
Resolution: 24-bit (16,777,216 discrete values), allowing for extremely fine signal differentiation.
Noise/Crosstalk: <0.01% FS noise and <0.02% FS crosstalk, significantly reducing signal interference.
2.Performance:
Response Time: 50ms, ensuring quick data acquisition.
Operating Temperature: -20°C to 85°C (-4°F to 185°F), making it suitable for a variety of industrial environments.
3.Power:
Supply: 24 VDC.
Power Consumption: 3.5W, designed for energy efficiency in industrial applications.
Key FeaturesVogi
1.Dissipation of Stored Energy During De-Excitation: The module dissipates the stored energy of the generator field inductance during de-excitation, thus ensuring safe shutdown of the generator.
2.SCR Firing: GE IS200EDEXG1BAA handles the firing sequence of the SCRs that enable properly controlled de-excitation.
3.De-Excitation Feedback: GE IS200EDEXG1BAA is relevant because the module provides conduction sense feedback that is free of the link degradation for de-excitation.
4.Voltage Retention: GE IS200EDEXG1BAA maintains voltage in the event of a power failure, allowing for uninterrupted use.
5.Excitation Control: Regulates field current of the generator to maintain a constant voltage output.
6.Signal Processing: Handles input signals from the sensors and control modules to determine proper responses from the system.
Freight Estimation(Part Of The Area)Vogi
|
Destination |
Freight |
|
Middle East |
$59 |
|
Southeast Asia |
$19 |
|
South Asia |
$79 |
|
South Africa |
$64 |
|
Europe and USA |
$35 |
|
Russia |
$72 |
ApplicationVogi
Electric Power Generation Plants: Excitation system for generator control to maintain stability and efficient generation.
Industrial Automation: Intended for reliable control and communication in complex industrial processes where reliable excitation control is needed.
StrengthsVogi
Versatility: Supports multiple input types (voltage, current) and is designed to operate in harsh environments.
Precision: Offers high accuracy (±0.05% FS) and resolution (24-bit), making it suitable for critical applications requiring precise measurements.
Robust Design: Features isolation, low noise, and wide temperature tolerance (-20°C to 85°C), ensuring reliability in demanding conditions.
This module is ideal for industries that require reliable, high-fidelity analog signal acquisition in challenging environments.
