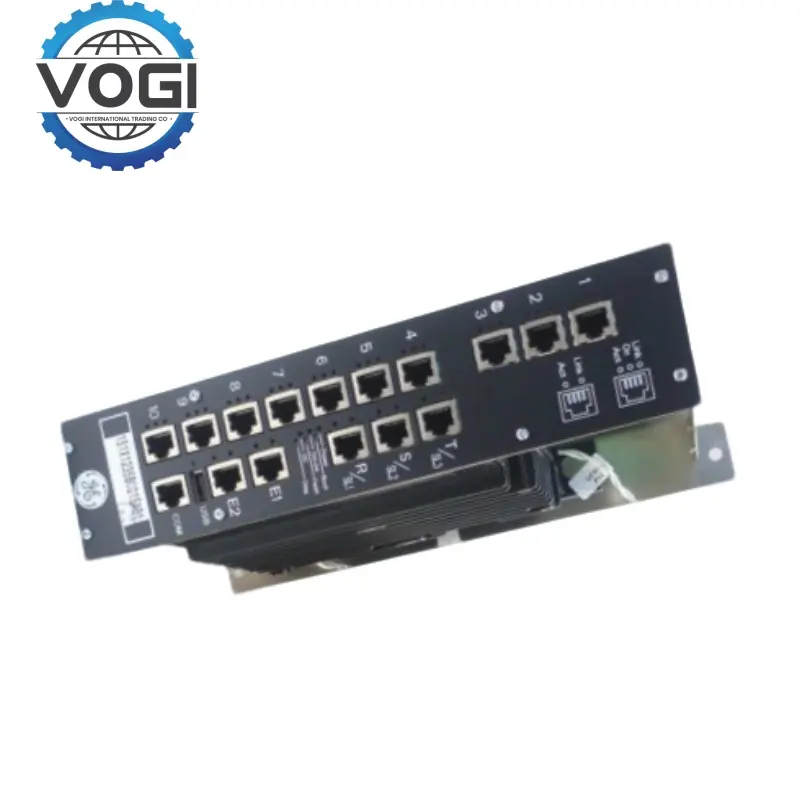

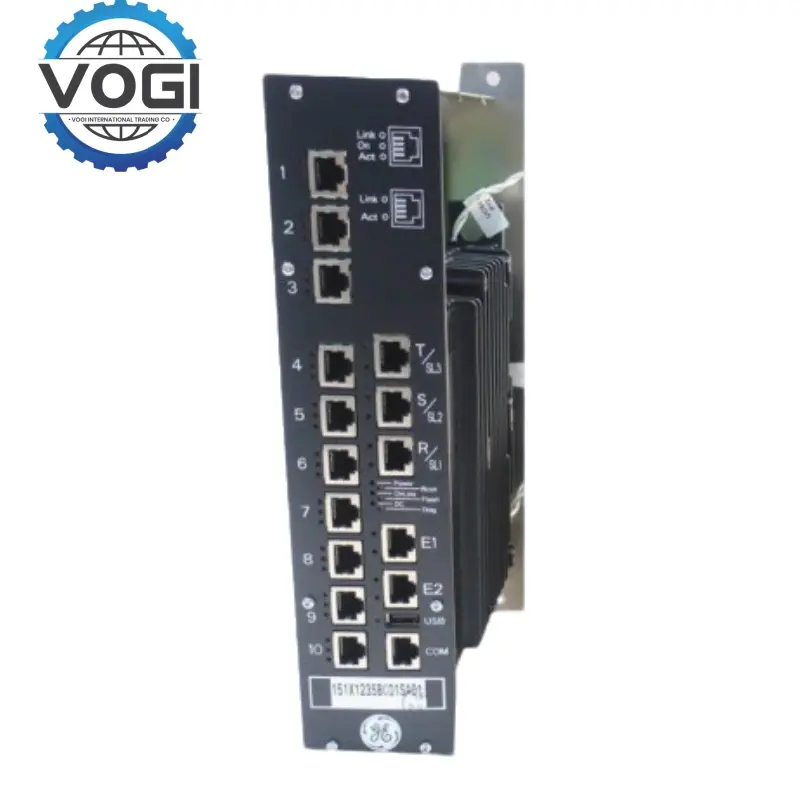

GE 151X1235BC01SA01 General Electric Ethernet Switch 10-slot
Key SpecificationsVOGI
Power input Main power supply: 230V AC ±10%, 50/60Hz
Backup power supply support: Optional dual redundant power supply, AC/DC mixed input to ensure uninterrupted operation of the system.
Communication protocol: Modbus RTU, support baud rate 1200-19200 bps, support multi-master communication.
Expansion interface: Reserved RS-485/RS-232 conversion module interface, compatible with third-party devices.
Operating temperature: -40°C to +70°C
Humidity range: ≤95% RH, IP66 protection level certified (dust and water spray);
Relay output: 2 independent SPDT relays, contact capacity AC250V/5A or DC30V/5A;
Digital input: 24 opto-isolated inputs.
Analog input: 16 differential inputs, 12-bit resolution.
Isolation characteristics: 2.5kVrms isolation between signal and power supply, strong anti-interference ability;
Installation method: DIN rail installation, supports vertical/horizontal installation.
Certification standards: Comply with CE, UL, RoHS certification, meet industrial safety specifications.
Key FeaturesVOGI
High-performance control algorithm: GE 151X1235BC01SA01 built-in adaptive PID control, supports multi-variable optimization, suitable for real-time adjustment of gas turbine combustion efficiency; supports floating-point operations, with a computing speed of 100μs/instruction, meeting high-speed control requirements.
Industrial-grade reliability: wide temperature design, fanless heat dissipation structure, adaptable to dust and vibration environment; key component redundant design, support online hot swap.
Real-time communication and monitoring: Modbus RTU supports periodic data acquisition, equipment status diagnosis and fault code reporting; compatible with OPC UA protocol, can be seamlessly integrated into the Industrial Internet of Things (IIoT) platform.
Safety and protection: GE 151X1235BC01SA01 built-in overvoltage, overcurrent, short-circuit protection, response time ≤20μs; supports dual-path grounding detection, in line with IEC 61508 SIL2 safety level.
Modular expansion: GE 151X1235BC01SA01 supports I/O module expansion, up to 256 channels; provides customized programming interface , supports user-defined functions.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$59 |
|
Southeast Asia |
$48 |
|
South Asia |
$78 |
|
South Africa |
$63 |
|
Europe and USA |
$35 |
|
Russia |
$71 |
APPLICATIONVOGI
Gas turbine control: real-time adjustment of fuel-air mixing ratio, optimization of power generation efficiency, and reduction of NOx emissions.
Waste heat recovery system: control valves through temperature/pressure sensors to improve energy utilization.
Industrial automation: production line monitoring, integrated sensor data, equipment failure prediction and preventive maintenance, compressor control: dynamic adjustment of motor speed, matching process requirements, and reducing energy consumption.
Distillation tower control: PID algorithm, stable temperature/pressure, and product quality assurance;
Safety interlock system: detect abnormal signals and trigger emergency stop.
Traction inverter control: adjust motor output torque to achieve smooth acceleration and braking;
Microgrid coordinated control: dynamically allocate power according to load changes to ensure power supply stability.
