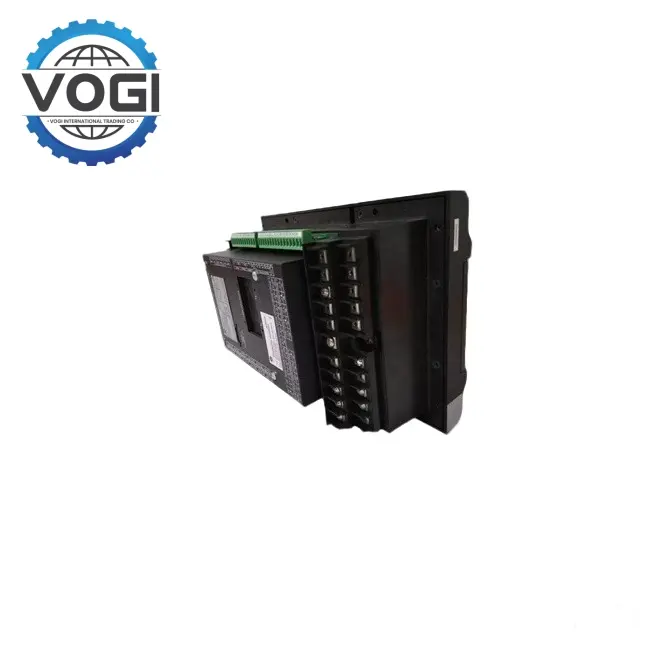

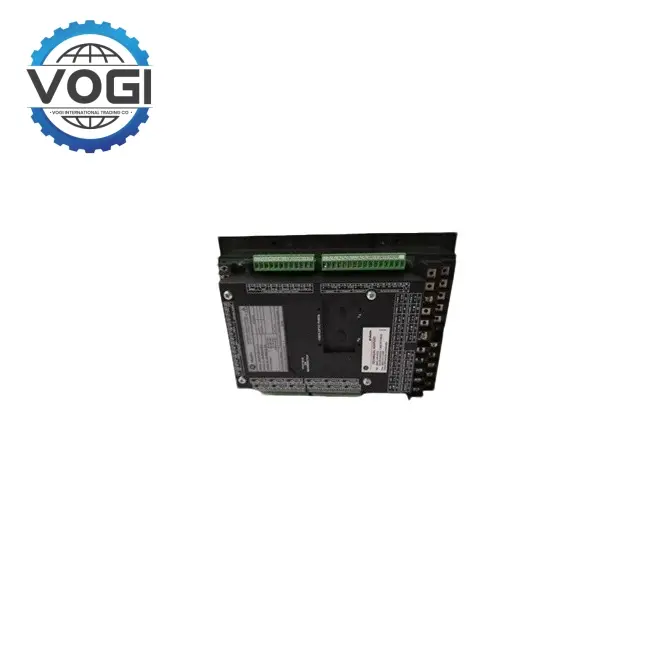

GE 369-HI-R-M-0-0-0-0 Motor Management Relay

Power supply: 50-300 VDC / 60-265 VAC.

phase current input: 1 A and 5 A secondary.

Auxiliary contacts: 2 normally open, 2 normally closed.

Rated current: 20 A.

Ultimate breaking capacity: 30 A.

Number of recordable events: 512 events.

Communication interface: Isolated RS232, RS485 port.

RTD input: 12, is of 3-wire, optional 100Ω platinum, 100Ω nickel, 120Ω nickel, or 10Ω copper.

RTD sensing current ：3mA.

The temperature measuring ranges：- 40°C to 200°C

Optional metering function, including 3 additional analog outputs, voltage transformer input, can measure kW-Hz-MWh Rs-kVA Variables such as.

Protection System Features: A short-circuit trip function can limit damage to motor components instead of exposing the motor to overcurrent scenarios. In so doing short-circuit time delays less than 200ms.

Motor Protection and Monitoring: The GE  369-HI-R-M-0-0-0-0 provides safe comprehensive protection for motors, overload protection, short-circuit protection, undervoltage protection, etc. Also, it accurately measures and monitors motor parameters like current, voltage, temperature, etc. Abnormal conditions in motor operation are detected timely through real-time monitoring of these parameters and alarms can be sounded before the fault occurrence effectively saving the motor from damage.

Event recording and analysis: GE 369-HI-R-M-0-0-0-0 has the event recording function, and on tripping, it direct uploads the cause of the trip and respective temperature and data values at the time of tripping, thus assisting customers to pinpoint the faults with speed and accuracy enabling users to perform corrections and system revisions with ease.

Safety function: GE 369-HI-R-M-0-0-0-0 is fully designed for safety; when it detects any abnormal conditions, it instantly cuts the power supply to prevent damage to the motor or system, thereby ensuring safe operation.

Aviation: Turbine blades, combustion chamber liners, etc. for civil or military aircraft engines.

Industrial: Hot end components of industrial gas turbines in power plants or industrial drive systems.

Energy: High temperature components in steam turbines or combined cycle power plants
