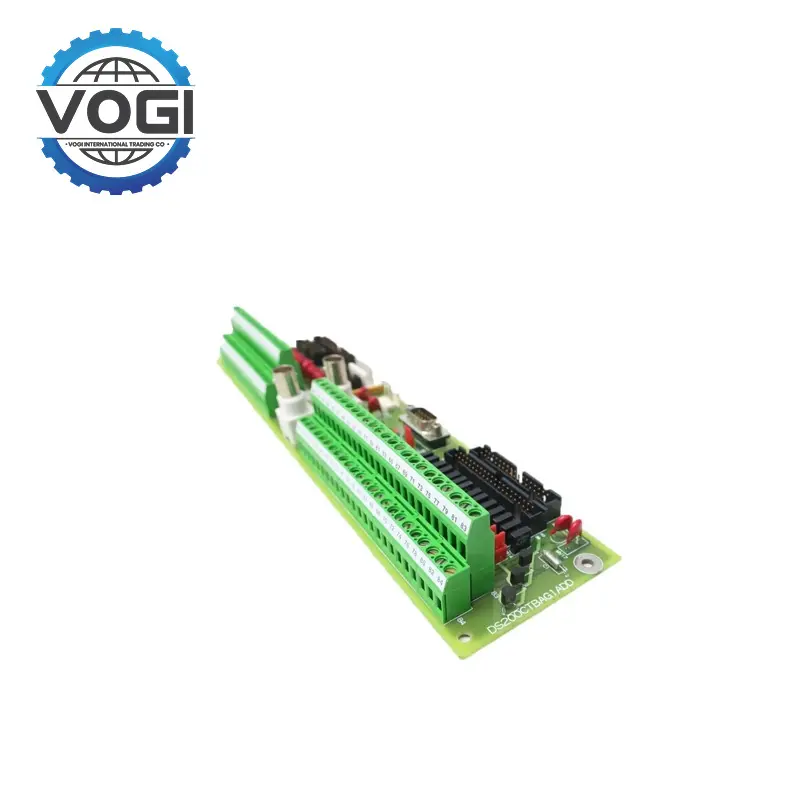

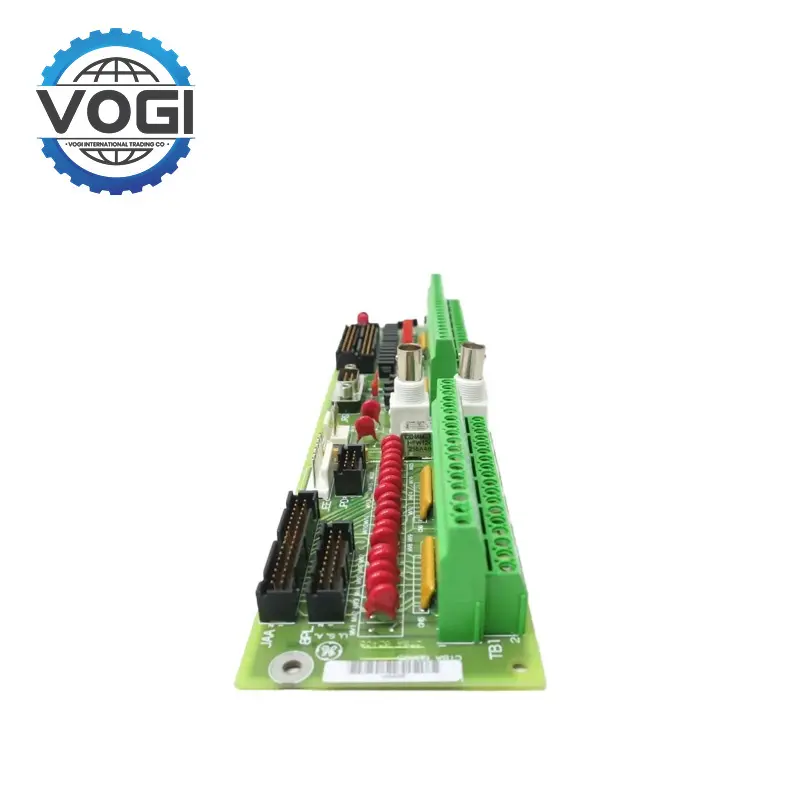

GE DS200CTBAG1ADD Termination Board

Key SpecificationsVogi

1.Input/Output Specifications:
Digital Inputs: 16 channels, with a voltage range of 10 - 30VDC for each channel. The input impedance is typically around 3 kΩ, ensuring proper signal reception.
Digital Outputs: 16 channels as well, capable of sourcing or sinking current up to 0.5A per channel. The output voltage levels are configurable within a range of 5 - 30VDC, providing flexibility for interfacing with different external devices.
Communication Interface:It features a high - speed serial communication port, usually operating at a baud rate of up to 115.2 kbps. This allows for efficient data transfer between the module and other control systems or devices. The interface protocol could be RS - 232, RS - 485, or a proprietary protocol depending on the specific application requirements.
2.Operating Parameters:
Temperature Range: Operates reliably within a temperature span of - 10°C to 60°C (14°F to 140°F). This makes it suitable for use in many indoor and some mildly outdoor industrial environments.
Power Supply: Requires a stable power source in the range of 24VDC ± 10%, consuming an average power of approximately 3W during normal operation. This power consumption level is relatively low, contributing to energy efficiency in larger systems.
3.Timing Characteristics:
Signal Response Time: For digital inputs, the response time is typically less than 1ms, enabling quick reaction to external changes. For digital outputs, the switching time is around 0.5ms, ensuring rapid actuation of connected devices.

Key FeaturesVogi

1.Processing Accuracy: provides high precision control. It enables high-resolution control of manufacturing processes.
2.Advanced Monitoring: The GE DS200CTBAG1ADD has built in diagnostic and monitoring functions. These functions can continuously monitor things like power usage, signal strength, and component temperature.
3.Fault Tolerance: Because it is designed to include redundant elements. If a component fails, the system can switch to a backup component or an alternative operating mode to ensure that it does not shut down.

Freight Estimation(Part Of The Area)Vogi

ApplicationVogi

Power Generation: turbine speed control, generator output monitoring, cooling control. It enables the efficient generation and distribution of power by keeping these essential components humming smoothly.
Oil and Gas Industry: It regulates valves, pumps, and distillation columns in refineries. Its fault tolerance and advanced monitoring capabilities are critical for helping avoid leaks, floods in such a harsh and unstable environment.

StrengthsVogi

Rich I/O Capabilities: With 16 digital input channels and 16 digital output channels, it provides extensive connectivity options.
Flexible Output Configuration: The digital output channels offer the flexibility to source or sink current up to 0.5A per channel and have configurable output voltage levels within 5 - 30VDC.
Efficient Communication: Its high speed serial communication port, operating at up to 115.2 kbps, ensures rapid data transfer.
Reliable Performance in Varied Environments: The operating temperature range of - 10°C to 60°C makes it suitable for both indoor and moderately outdoor settings.
Fast Signal Response: For digital inputs, a response time of less than 1ms means it can detect changes in the external environment almost instantaneously.

The GE DS200CTBAG1ADD is a highly versatile and reliable module that offers significant advantages for industrial automation and control applications.
