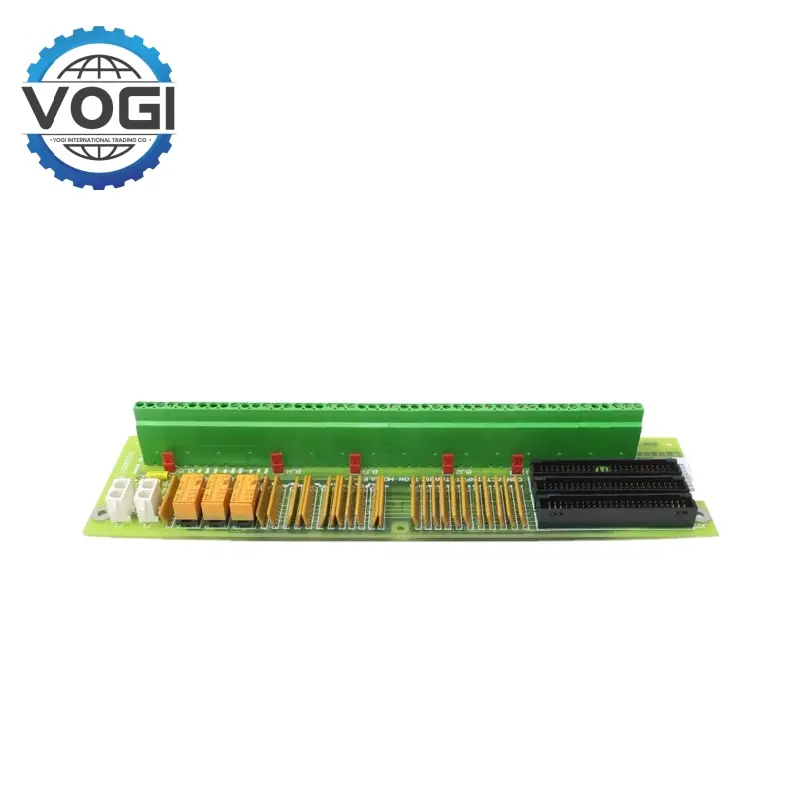

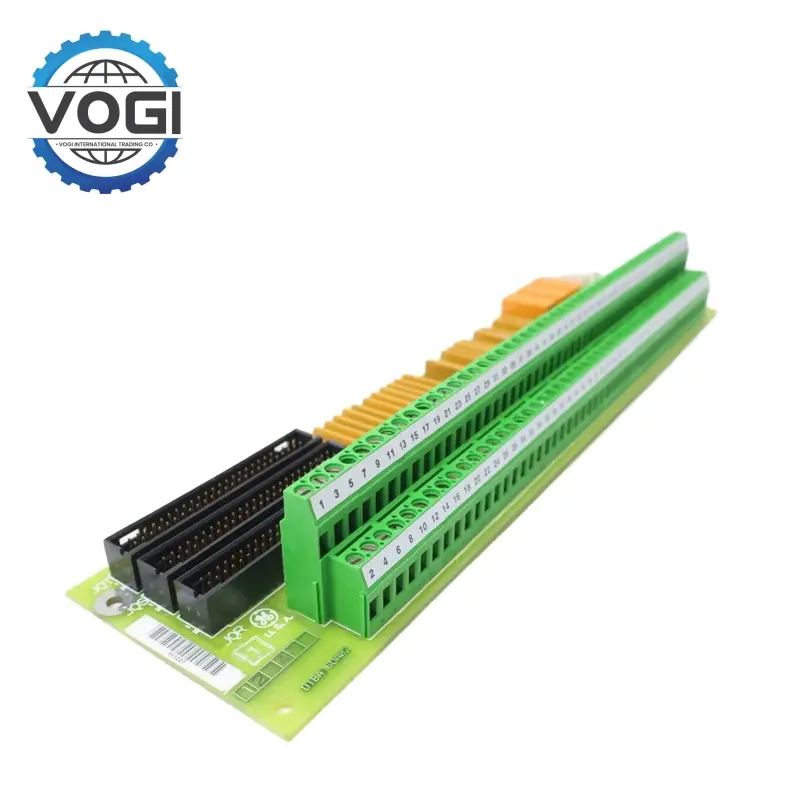

GE DS200DTBAG1AAA Digital Contact Terminal Board

Supply voltage: 24 V DC ±15%

Action current: ≤1.2 A

Release current: ≥0.6 A

Contact configuration: 2 groups of NO + 2 groups of NC (double-pole double-throw)

Load capacity: AC 250V/10A / DC 30V/15A

Protection level: IP67 (dustproof and waterproof)

Response time: action ≤8 ms / release ≤12 ms

Certification standards: IEC 61508 SIL2, EN ISO 13849-1 PLd, ATEX Zone 2

Mechanical life: ≥10⁷ times

Ambient temperature: -30°C ~ +70°C

Space saving Form Factor: Its compact and rugged design allows it to be integrated into tight control cabinets. At the same time, its solid construction with high-strength materials makes it effective in resisting shocks, vibrations, and corrosive products common in industrial environments.

Precision Signal Processing: Advanced circuitry for handling analog and digital signals. It can precisely amplify weak signals, reject noise and perform high-resolution conversions to ensure the integrity of processing data.

Usability:  Can flexible connectivity Since it can communicate with so many others, it can easily fit into the complex tangle that is an industrial network.

Generator differential protection: Tracks the difference in generator stator current to prevent internal short-circuit faults.

Transformer differential protection: Overcomes the thermal and mechanical effects of transformer winding faults and quickly disconnects abnormal currents.

Transmission and distribution line protection: Detects short circuits and ground faults and assists in reclosing control.

Industrial motor control: Used for motor overload and stall protection in the petrochemical/metallurgical industry.

New energy grid-connected monitoring: Power conversion and islanding effect detection in wind/photovoltaic power plants
