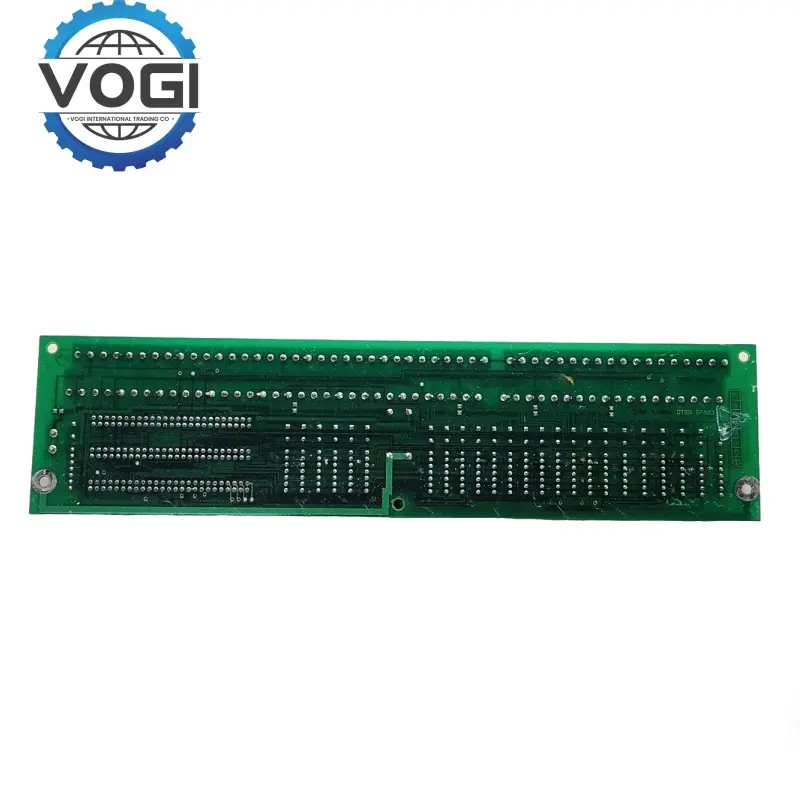

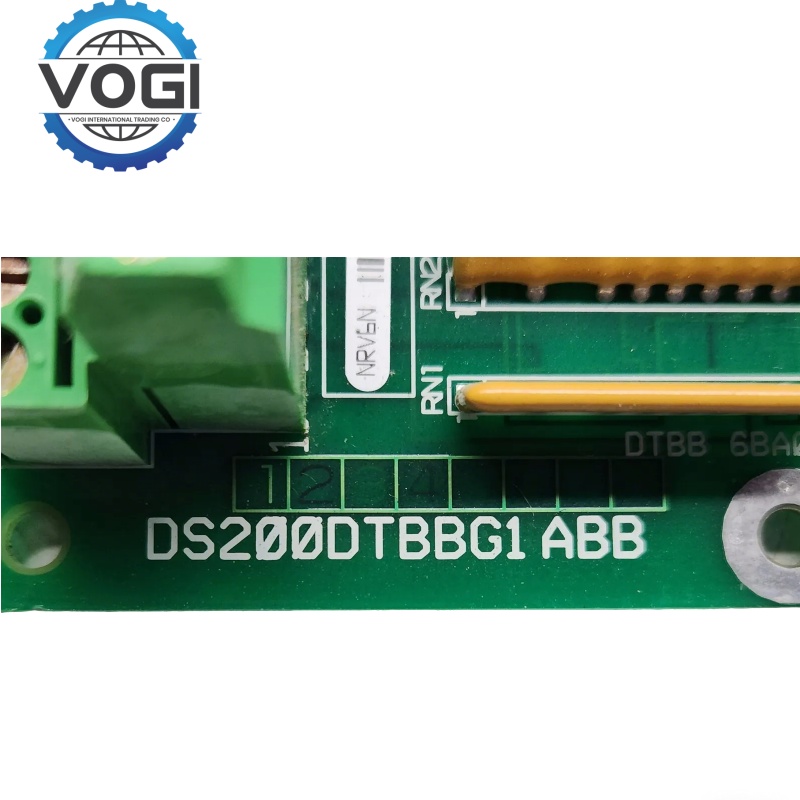

GE DS200DTBBG1ABB Mark V Speedtronic turbine control system

Power input: 100~240VAC ±15%, wide voltage range, supports AC and DC, typical power consumption is about 25W.

Communication interface: dual Ethernet port 10/100Mbps, supports Modbus TCP/IP, OPC UA, EtherCAT protocol, compatible with GE Mark VIe control system;

Control mode: supports three modes of position control, speed control, and force control, 0.1% control accuracy, 0.01% resolution.

Number of channels: 4 independent servo control channels, support 12-bit analog output and 6 LVDT position sensor input;

Digital input and output: 16 dry contact inputs with photoelectric isolation, 8 relay outputs (250VAC/5A or 30VDC/5A).

Operating temperature: -20°C to +60°C in non-condensing environment, storage temperature -40°C to +85°C;

Protection level: Terminals are IP20; Housing is NEMA 1; Suitable for installation in industrial control cabinets.

Processor: Freescale PowerPC 667MHz, supports real-time multitasking, built-in turbine emergency protection algorithm.

Memory: 256MB DDR SDRAM, supports program expansion and online diagnosis.

High reliability redundant design: supports dual power input and CPU redundancy to ensure continuous operation of key systems; built-in temperature sensor and overload protection can monitor module status in real time and automatically trigger fault isolation.

Multi-protocol compatibility: GE DS200DTBBG1ABB supports industrial standard protocols such as Modbus, Profibus, EtherCAT, etc., and is suitable for a variety of control systems; parameters can be adjusted online through Control System Toolbox, and it is flexible to adapt to different application scenarios.

High-precision control capability: 12-bit analog output resolution, 0.1% control accuracy, suitable for precision servo systems such as gas turbine valve positioning; supports automatic/manual configuration, compatible with GE Mark VIe series modules, and can expand distributed I/O terminal boards.

Real-time monitoring and protection: GE DS200DTBBG1ABB has built-in real-time monitoring algorithms for parameters such as turbine overspeed and vibration, with a response time of less than 1ms; supports fault diagnosis and remote configuration, and LED indicators can quickly locate abnormal conditions.

Modular expansion capability: GE DS200DTBBG1ABB supports vertical stacking installation, saving cabinet space and is suitable for complex industrial environments; it can be connected to the VSVO processor board via a 37-pin cable to achieve multi-module collaborative control.

Energy industry: gas turbine, steam turbine servo valve control, power substation automation system; wind turbine pitch control system, hydroelectric power station speed governor control.

Industrial manufacturing: precision mechanical motion control such as CNC machine tools, robot arms, production line synchronous drive, packaging equipment servo motor control.

Petrochemical: refinery compressor flow regulation, chemical plant pump equipment pressure control; oil and gas extraction platform valve positioning system, pipeline transportation monitoring.

Railway transportation: train braking system, door servo control; high-speed rail traction motor status monitoring and fault diagnosis.

Infrastructure: water treatment plant valve positioning, fan speed control; intelligent building HVAC system
