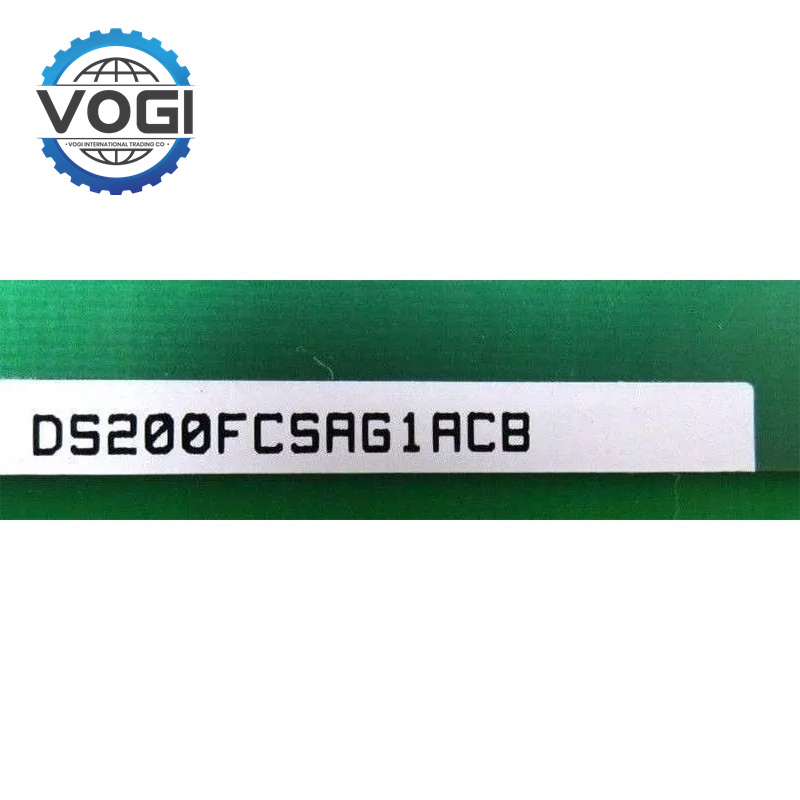

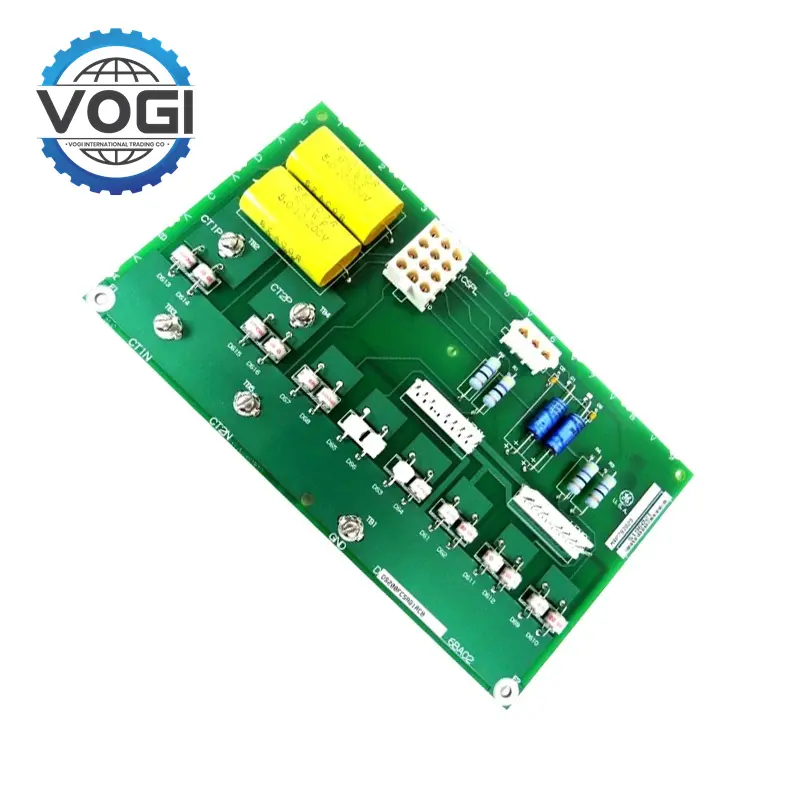

GE DS200FCSAG1ACB Current Sensing Feedback Board

Key SpecificationsVogi

1.Analog Outputs:
Channels: 4 isolated analog output channels.
Output Ranges: It offers flexible output ranges including 0 - 5V, 0 - 10V, and ±10V.
Accuracy: ±0.1% of full scale (FS). This high level of accuracy ensures that the output signals closely match the intended values.
Resolution: 16 - bit (65,536 discrete values).
2.Digital Inputs:
Channels: 8 digital input channels. These can be used to receive binary status signals from external switches, sensors, or other digital devices.
Voltage Levels: Accepts input voltages in the range of 10 - 30VDC.
Response Time: Less than 1ms. This rapid response time allows the module to quickly react to changes in the digital input signals.
3.Operating Temperature:
Range: - 20°C to 85°C (- 4°F to 185°F).
4.Power Supply:
Input: 24VDC ± 10%. It requires a stable 24 - volt direct current power source with a tolerance of ±10% to operate optimally.
Power Consumption: Approximately 2.5W. Its relatively low power consumption is beneficial for energy efficient industrial setups

Key FeaturesVogi

1.Control Logic Execution: acts as a central control unit and executes pre-defined control logics. It fast on processing and execute the complex algorithms and make decisions based on input signals which.
2.Module Data Acquisition and Monitoring: Module capable of acquiring data from several sensors or other connected devices. allows online monitoring of temperature, pressure, flow rate, and other parameters.
Communication Interface: Ethernet, RS-232,  or RS-485, etc. This enables it to integrate easily with other control systems, PLC Programmable Logic Controller or upervisory Control and Data Acquisition systems.

Freight Estimation(Part Of The Area)Vogi

ApplicationVogi

Automation: Various inflow process controllers were used to control automated production lines in factories.From robotic arms that create products to conveyor belts that move materials.
Power Generation Plants: used to run control systems of power plants. It also has the ability of monitoring and controlling equipment like boilers, turbines and generators.
Process Process Industries: Used in chemical plants, refineries, and water treatment, these systems monitor and control the flow of fluids, regulate chemical reactions, and manage pump and valve operations.

StrengthsVogi

Versatile Analog Outputs: It offers 4 isolated analog output channels, allowing for independent control of multiple analog signals.
High Precision Analog Output: With an accuracy of ±0.1% of full scale (FS), it ensures highly precise analog signal output.
Reliable Digital Inputs: It has 8 digital input channels that can receive binary status signals from external switches, sensors, or other digital devices.
Robust Performance in Harsh Environments: The operating temperature range of - 20°C to 85°C (- 4°F to 185°F).
Energy Efficient and Stable Power Supply: The module operates on a 24VDC ± 10% power supply, a common voltage in industrial setups.

This module is ideal for industries requiring precise, reliable, and versatile analog and digital signal handling in demanding industrial conditions.
