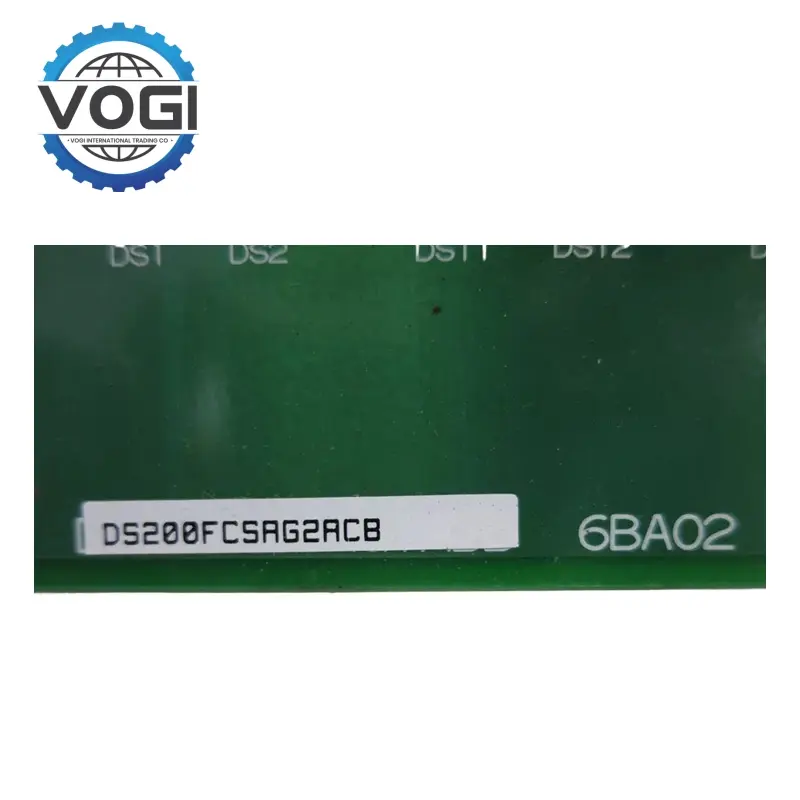

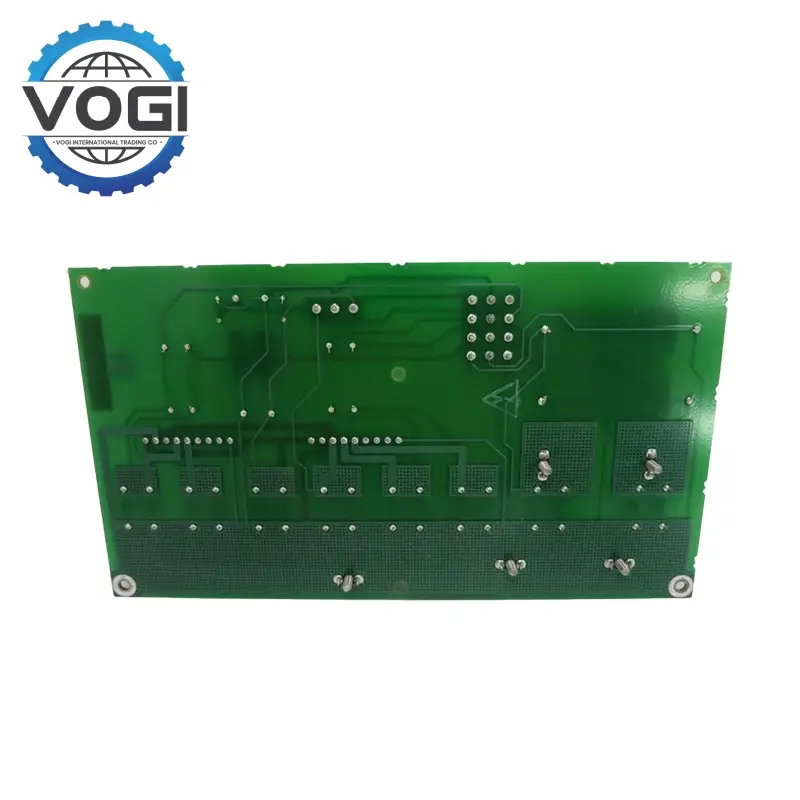

GE DS200FCSAG2ACB Control Current Sensing Interface Board

Input Voltage: The board operates with an input voltage of 24V DC.

Connectors: Equipped with two sub-D pin connectors:

LEMPS Connector: A 3-pin connector.

CSPL Connector: A 12-pin connector.

Operating Temperature: -40°C to +85°C.

Signal Frequency Response: It can handle signal frequencies up to a certain limit.

Current Consumption: The module has a designed current consumption level.

Communication Protocol: Supports high-speed communication protocols for seamless integration with other control system components.

Signal Processing: Capable of handling analog and digital signals with high precision, ensuring accurate control and monitoring.

Redundancy: Features redundant communication paths to enhance system reliability and minimize downtime.

Control Logic Execution:  GE DS200FCSAG2ACB acts as a central control unit and executes pre-defined control logics. It fast on processing and execute the complex algorithms and make decisions based on input signals which is the key parameters to automate the industrial operations. For example, GE DS200FCSAG2ACB may control the order of a manufacturing process, allowing each step to happen in the configured sequence.

Module Data Acquisition and Monitoring: Module capable of acquiring data from several sensors or other connected devices. GE DS200FCSAG2ACB allows online monitoring of temperature, pressure, flow rate, and other parameters. This enables proper operating conditions and detection of abnormal situations based on the data flow up to Octuber 2023.

Communication Interface: Ethernet, RS-232,  or RS-485, etc. This enables it to integrate easily with other control systems, PLC (Programmable Logic Controller) or SCADA (Supervisory Control and Data Acquisition) systems. This involves transferring data and commands between different layers of an industrial network.

Gas turbine control system: It plays an indispensable role in gas turbine control systems, helping to measure current and feedback signals to maintain the stability and efficiency of gas turbine control operations.

Power system: In the application of power system in power generation, transmission and distribution, we use it to monitor the current of power equipment and control it.

Large motor drive system: GE DS200FCSAG2ACB measures the motor current of large motor-driven rotating equipment in real time to help extend the service life of the motor and reduce the overall equipment failure rate.
