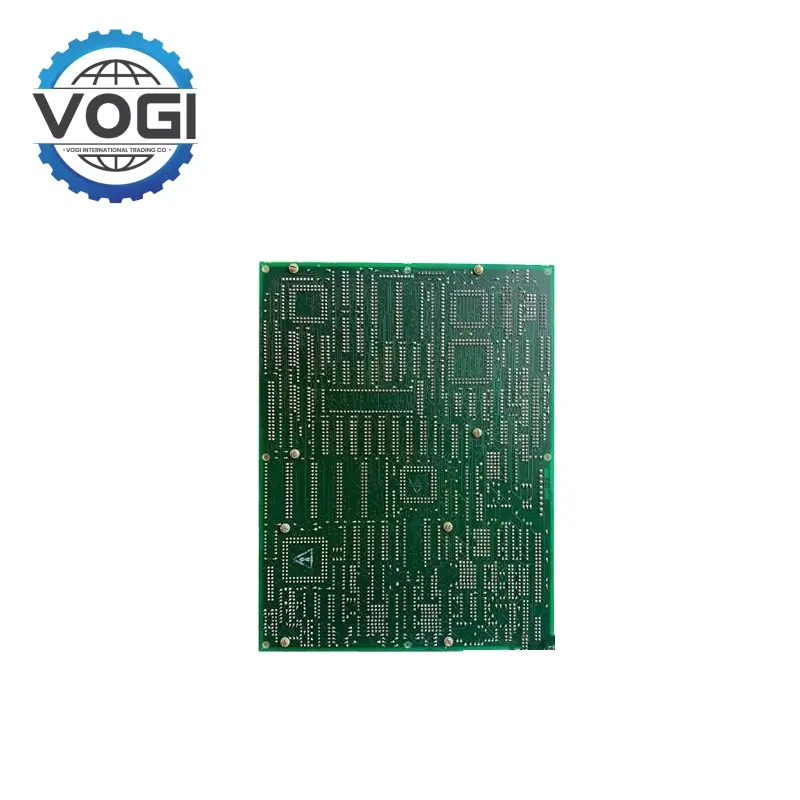

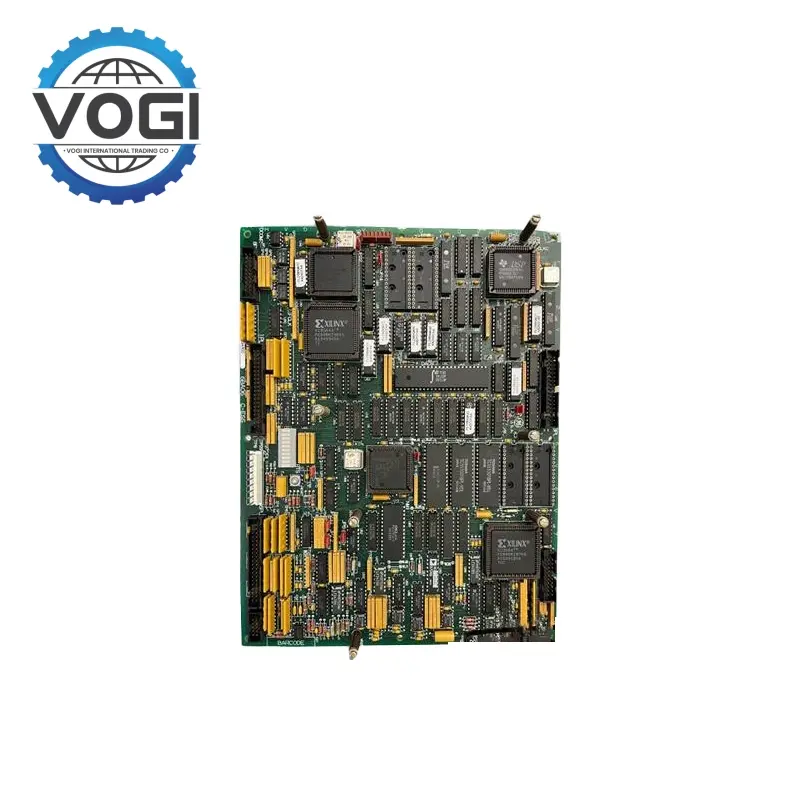

GE DS200SDCCG4AGD Electric Drive Control Board

Input type: 24 dry contact inputs

Processor: 3 onboard microcontrollers.

Isolation characteristics: Through the group isolation function, GE DS200SDCCG4AGD can isolate signals and prevent interference and fault propagation.

Memory: Powerful RAM construction, which can be accessed by multiple microprocessors at the same time

Power test point: +15V power supply

LED indicator: There are 10 LED indicators on the board

Field environment: Mark V series turbine control system

Precise signal processing: GE DS200SDCCG4AGD supports precise processing of mixed signal types, including digital and analog, it can instantly and accurately detect the unique logic state of digital signals, allowing uninterrupted data transmission for monitoring and control. If it is an analog signal, it can be finely sampled and converted in real time to reduce the probability of error and maintain high data accuracy.

Excellent reliability: Made of high-end materials and advanced manufacturing technology, the GE DS200SDCCG4AGD can work reliably even under harsh industrial conditions. Its internal circuits are highly resistant to electrical noise, voltage fluctuations and temperature changes. In addition, over current protection, overvoltage protection, short-circuit protection, etc. are designed internally, which greatly reduces the risk of failure and ensures long-term stable and continuous operation.

Powerful diagnostic capabilities: It has built-in diagnostic functions that can continuously diagnose the operating status of the device itself and its connected modules, and promptly diagnose and point out problems such as abnormal signal patterns, component failures, or communication errors. When corrective actions are taken for abnormalities, it can provide detailed diagnostic information to help technicians effectively identify and solve problems, thereby reducing downtime and reducing repair costs.

Steam field: GE DS200SDCCG4AGD is the core drive control board of the control system of power generation equipment such as gas turbines and steam turbines, and undertakes the key monitoring task of the operation status of the steam turbine.

Industrial automation field: It can be used to control servo motors, encoders, resolvers and other equipment to achieve precise control of parameters such as position, speed, angle, etc. during the production process, thereby improving efficiency and product quality.

Motion control field: It can be used for robot joint drive, machine tool feed motion control, automated logistics equipment operation control, etc.
