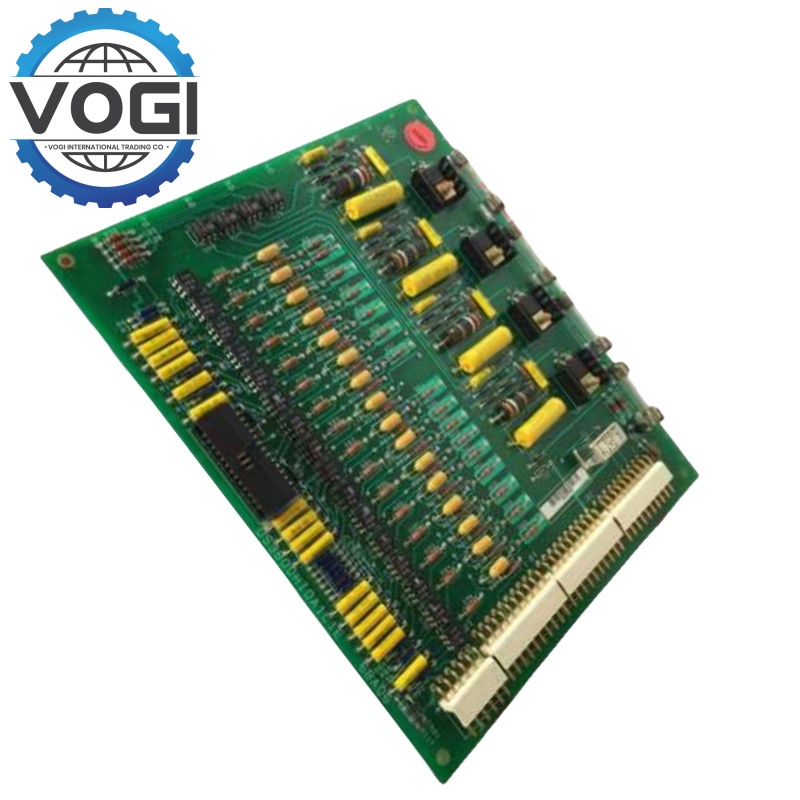

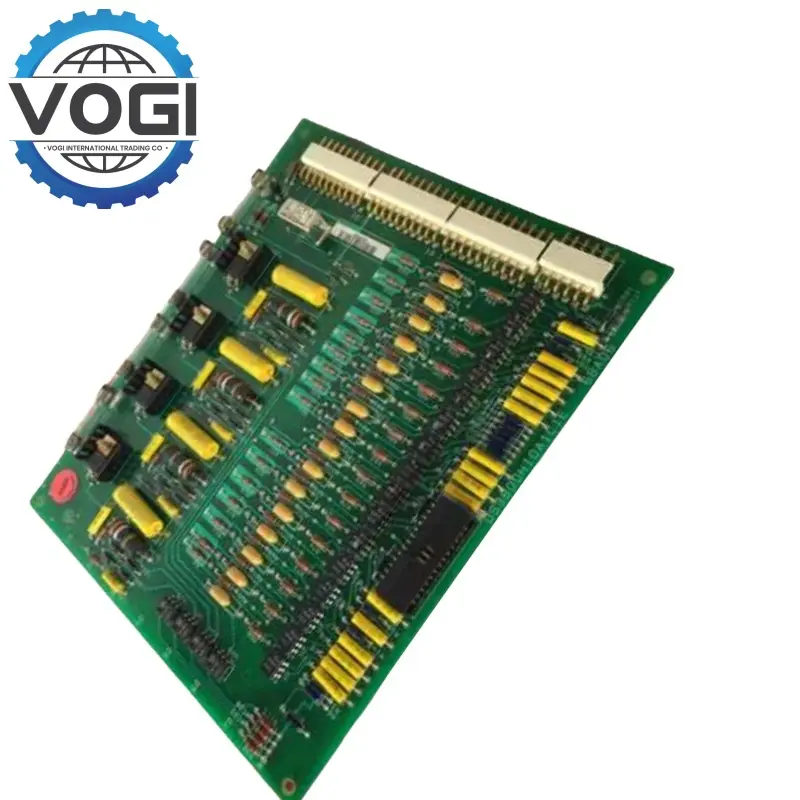

GE DS200SSBAG1A Drive Snubber Board

Battery Rating: 660 VAC.

Connector Type: 2-pin FCPL connector.

Vibration Operating: 10 to 500 Hz, 5G, 0.030 inches maximum peak-to-peak.

Shock Operating: 30G panel mounted.

Relay Operation: 2G.

C-UL Certified: Under CSA C22.2 No. 142

UL 508 Listed: CE and C-Tick compliant for all applicable directives.

Hazardous Environment: Class I, Division 2, Hazardous Location, Groups A, B, C, D

Snubber Function: GE DS200SSBAG1A is mainly used to suppress voltage spikes and transient over-voltages of DC 300/2000drive system. It can effectively protect the voltage spikes in power transient devices, such as power transistor or thyristor.

Power Backup: The two AZ Cap K 90017-437 batteries help to provide the power and backup to ensure that the board will function stably when the powersupply fails or the voltage fluctuates.

Energy Dissipation：The snubber circuit on GE DS200SSBAG1A can dissipate excess energy in the form of heat, absorbing andthen releasing energy in a controlled manner to ensure that voltage spikes do not build up.

Noise Rejection: Logic Divider Circuit minimizes electromagnetic interference (EMI), and electrical noise created as a result of the switching events, whichis good for the optimal operation of nearby electronic equipment and telecommunication information systems.

Gas turbine control: As the core component of the GE Mark V Speedtronic system, it is used to adjust the turbine speed and power output.

Industrial motor drive: Adapts to DC 300/2000 drives to support precise speed regulation of heavy equipment such as metallurgical rolling mills and oil drilling rigs.

Energy management system: Realizes efficient coordinated control of energy storage units and power grids in distributed energy power stations.
