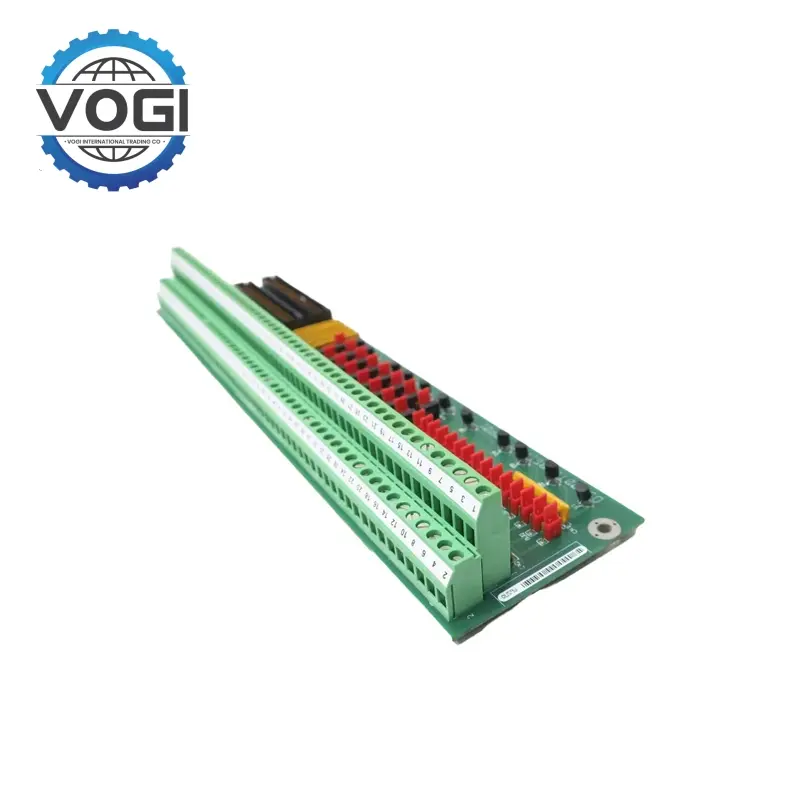

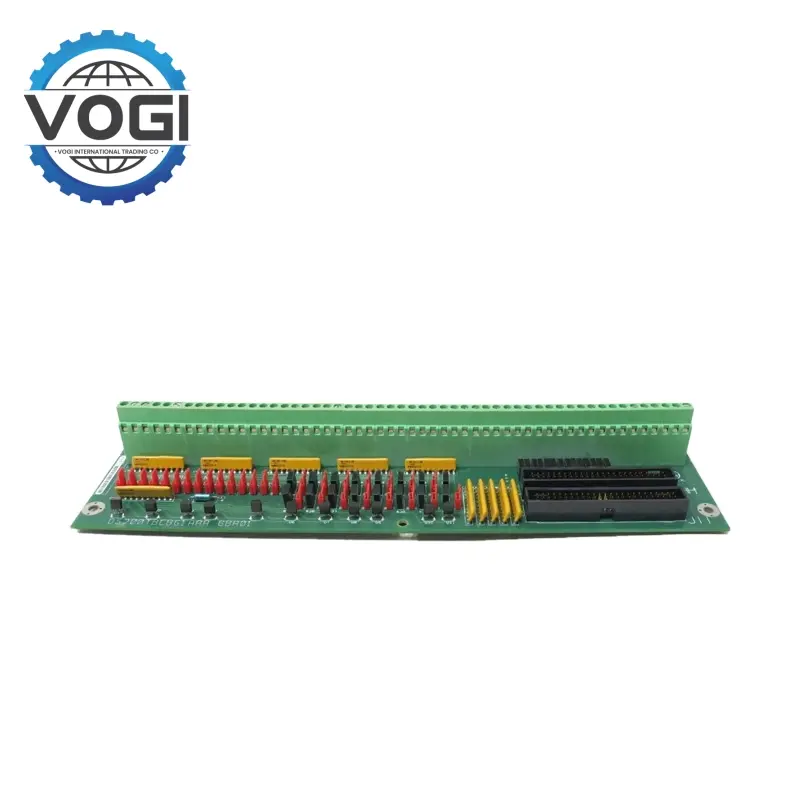

GE DS200TBCBG1AAA Analog Input Terminal Board

Current Input: Supports 4-20mA.

Field Power: Accepts isolated 21 volt DC field power input.

Signal Conversion: BJ23 - BJ30 input signals convert 15 - 22 signals to 0 - 1mA current range.

Function: A terminal simulation card that receives input signals and transmits them to the TCCB board

Powering Up: When the GE DS200TBCBG1AAA is powered, it immediately initiates an extensive self-test sequence. It means the microprocessors check all internal parts, such as memory, storage, and communication interfaces, for working properly. After the successful self-check, it goes into a stand-by mode where it is ready to receive commands and data from other systems.

Intelligent Decision-Making and Control: It can use smart algorithms stored into the device memory stockpiles and evaluates the data processed. It figures out what to do to keep system stability and performance. GE DS200TBCBG1AAA then produces precise control signals based on these decisions and sends them to actuators like motors, solenoids, and servo valves.

Actuator Feedback and System Monitoring：GE DS200TBCBG1AAA  monitors the values of the controlled parameters and modifies the control signals accordingly. Using GE proprietary control software, operators can monitor and control the entire process with visualizations of system status, alarms, and historical data.

Power system protection: for overload, short circuit and ground fault protection of medium and high voltage distribution systems.

Industrial applications: for motor protection, inverter control and production line distribution monitoring.

Building power distribution management: GE DS200TBCBG1AAA supports power quality monitoring, emergency power management and energy efficiency optimization in building automation.

Renewable energy grid connection: GE DS200TBCBG1AAA suitable for grid access and harmonic suppression of photovoltaic inverters and energy storage systems.
