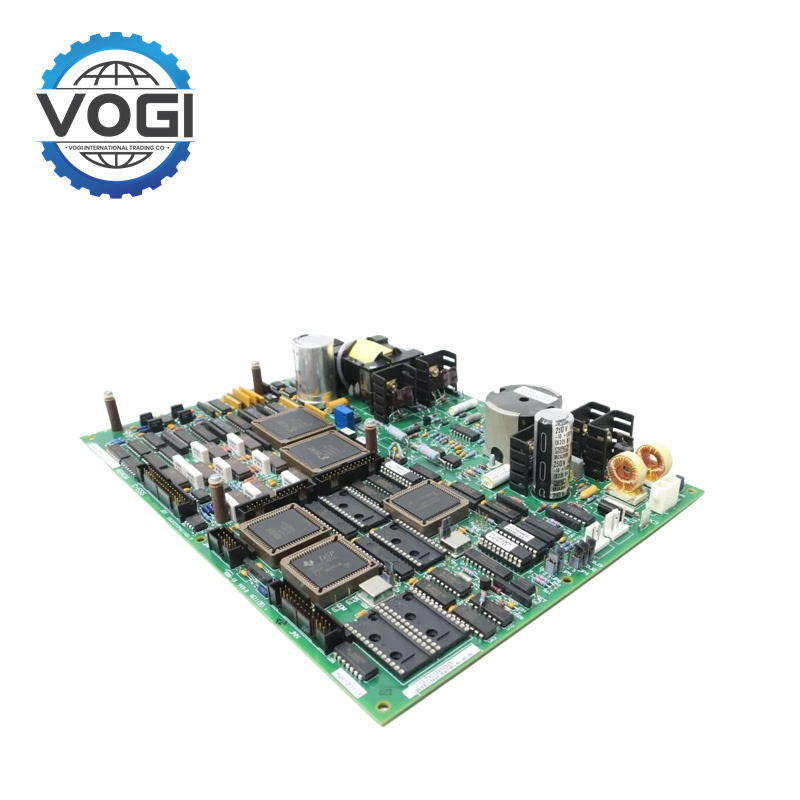

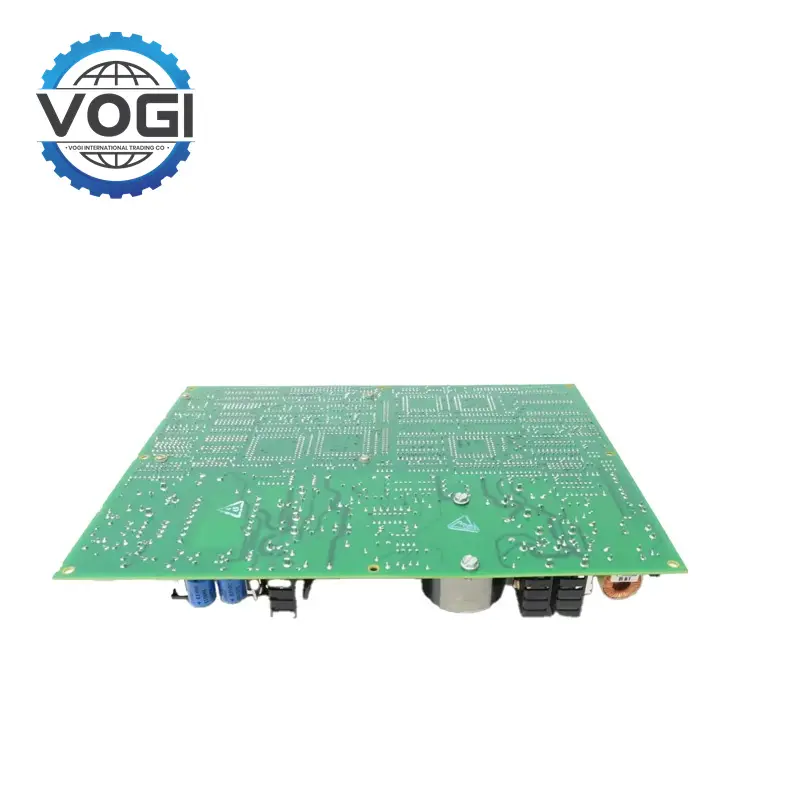

GE DS200TCPAG1AJD Turbine Control Processor Board
Key SpecificationsVogi
1. Processor Characteristics:
Type: High speed microprocessor
Clock Speed: 100 MHz, enabling rapid data processing.
Memory: 16 MB RAM, providing sufficient storage for operational data.
2. Communication Ports:
Ethernet: 10/100Base - T, supporting fast and reliable network connections.
Serial Ports: 2 RS - 232/485 ports, facilitating communication with various devices.
3. Input/Output (I/O) Capabilities:
Digital Inputs: 16 channels, accepting standard TTL/CMOS levels.
Digital Outputs: 16 channels, capable of driving relays or other loads.
Analog Inputs: 8 channels, with 12 - bit resolution for accurate signal acquisition.
4. Operating Environment:
Temperature: - 20°C to 70°C (- 4°F to 158°F), suitable for most industrial environments.
Humidity: 5% - 95% non - condensing, ensuring reliable operation in various humidity conditions.
5. Power Requirements:
Supply: 12 - 24 VDC, providing flexibility in power source selection.
Power Consumption: 5W, energy - efficient for continuous operation.
Freight Estimation(Part Of The Area)Vogi
|
Destination |
Freight |
|
Middle East |
$42 |
|
Southeast Asia |
$15 |
|
South Asia |
$55 |
|
South Africa |
$47 |
|
Europe and USA |
$27 |
|
Russia |
$50 |
FeaturesVogi
Powerful processing capability: Can process large amounts of data and complex control algorithms quickly and accurately. Realize online monitoring and precise control of turbine operating status, so that the turbine can operate stably and efficiently.
Reliable signal processing and transmission: Can process various signals from the entire turbine, such as speed signal, temperature signal, pressure signal and vibration signal. It is able to correctly convert and transmit these signals to the control system, and provide the control system with the correct decision making and control basis.
Flexible configuration: Enables users to customize control logic and parameters according to specific turbine models and operating constraints. With this advanced new technology, more agitator configurations can be provided for various turbine control applications, allowing the system to adapt to different working conditions and customer requirements.
High reliability and high stability: GE DS200TCPAG1AJD has strong anti interference ability and can be used stably in harsh industrial environments. The control unit has self diagnosis and fault tolerance functions, which can detect and handle faults in time to ensure the reliability and safety of the turbine control system.
APPLICATIONSVogi
Power generation industry: Commonly used in gas turbine and steam turbine power station. When large machines operating in industrial power plants, by properly adjusted the turbine, it contributes to the efficiency and stability of power generation, while also prevent industrial failure and accident occurred.
Petrochemical industry: Typically applied in compressors, pumps and other machinery in the petrochemical sector. Train on these turbines, used to make these turbines normal operation speed and power, to ensure the normal working of equipment and production security process.
Other industries: Can be applied in other industrial fields using turbines, such as metallurgy, papermaking and shipbuilding, etc.
STRENGTHSVogi
Versatility: Supports multiple communication protocols (Ethernet, serial) and various industrial applications.
Precision: High accuracy (±0.05% FS) and resolution (32 - bit) for precise control and monitoring.
Robust Design: Redundant power supply, fault tolerant architecture, and wide temperature tolerance enhance reliability.
