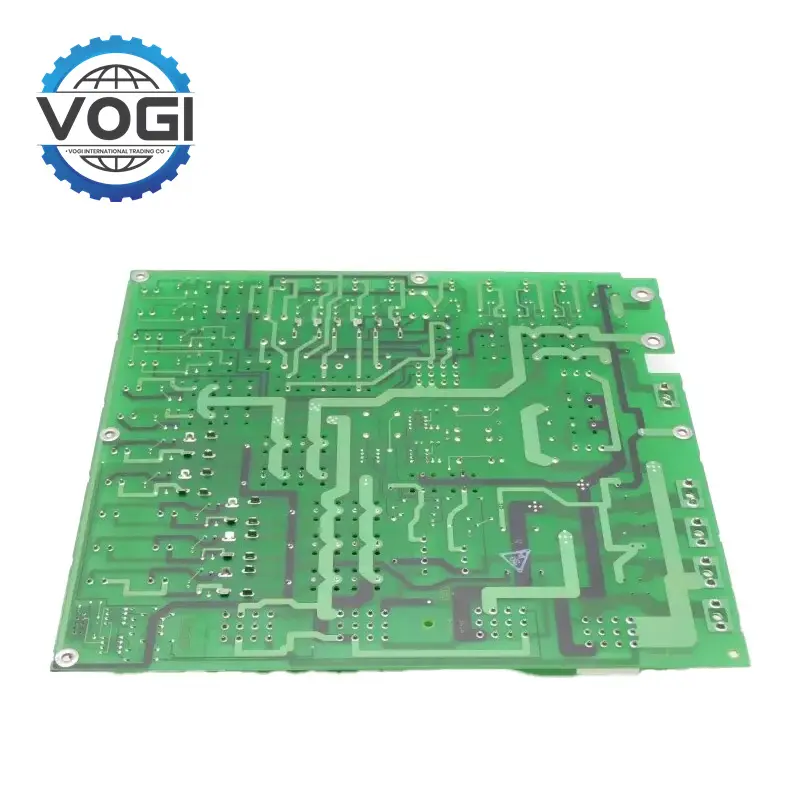

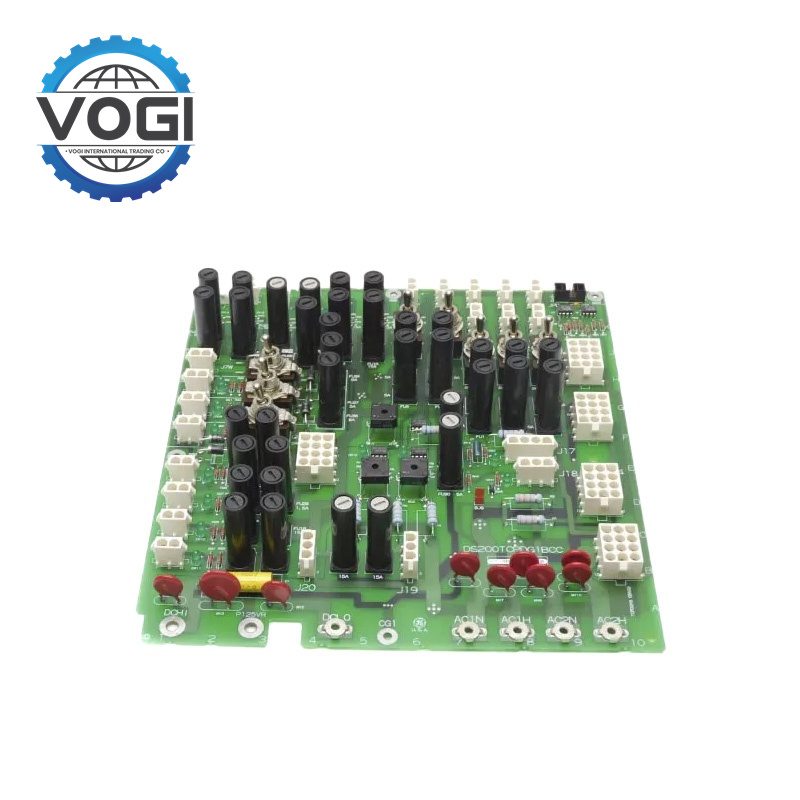

GE DS200TCPDG1BCC Power Distribution Module
Key SpecificationsVogi
1.Analog Inputs:
Channels: 8 isolated analog input channels
Input Ranges: Supports 0–10V, ±10V, and 4–20mA signals, ensuring compatibility with a wide range of sensors.
Accuracy: ±0.1% of full scale (FS), providing high precision in measurements.
Resolution: 16-bit (65,536 discrete values), allowing for detailed signal differentiation.
Noise/Crosstalk: <0.1% FS noise and <0.05% FS crosstalk, ensuring minimal signal interference.
2.Performance:
Response Time: 100ms
Operating Temperature: -40°C to 85°C (-40°F to 185°F), designed for operation in extreme environments.
3.Power:
Supply: 24 VDC
Power Consumption: 3.5W, optimized for energy efficiency in industrial applications.
ApplicationVogi
1.Effective power distribution: It also sends power to the TCPS board of each I/O core and the control engine core separately. Provide the TCEA board in the core with the power it deserves.
2.Fully integrated components: Using 8 toggle switches, the user can shut down each core independently.
3.Adaptive hardware setup: Its board has a BJS jumper that can be switched to isolate the ground reference, which is ideal for external reference systems and is flexible to meet installation and operation needs.
4.Extensive connector capabilities: The board's extensive connector capabilities enable it to interface with multiple boards and subsystems in the larger Mark V turbine control system, providing an efficient and reliable method for establishing data and power transmission between different components.
Freight Estimation(Part Of The Area)Vogi
|
Destination |
Freight |
|
Middle East |
$42 |
|
Southeast Asia |
$15 |
|
South Asia |
$55 |
|
South Africa |
$47 |
|
Europe and USA |
$27 |
|
Russia |
$50 |
ApplicationVogi
Generator of power generation industry: Responsible for the turbine control system to the respective control and monitoring components of the power distribution.
Industrial Manufacturing: This is used in these manufacturing processes which conduct these processes providing stable power distribution for them to run smoothly without any errors and to be more productive.
Petrochemical and Chemical Processing: Powers the control systems of pumps, compressors, valves and other monitoring equipment used to manufacture and transport chemicals and petroleum products.
HVAC and Building Automation: It can be integrated into heating, ventilation and air conditioning systems as well as into complete building automation systems. It controls temperature, humidity and air quality in the building by driving controllers, sensors and actuators.
StrengthsVogi
Versatility: The offers high versatility in power distribution.
Precision: In terms of precision, the board is designed with careful attention to component layout and electrical isolation.
Robust Design: The design of the is robust, with a focus on reliability.
Enhanced Safety: The board's design includes features that enhance safety.
Efficient Power Management: It features efficient power management by distributing power precisely to the required components.
Ease of Maintenance:The board's design simplifies maintenance tasks.
This module is ideal for industries requiring reliable, high fidelity power distribution and management in demanding conditions.
