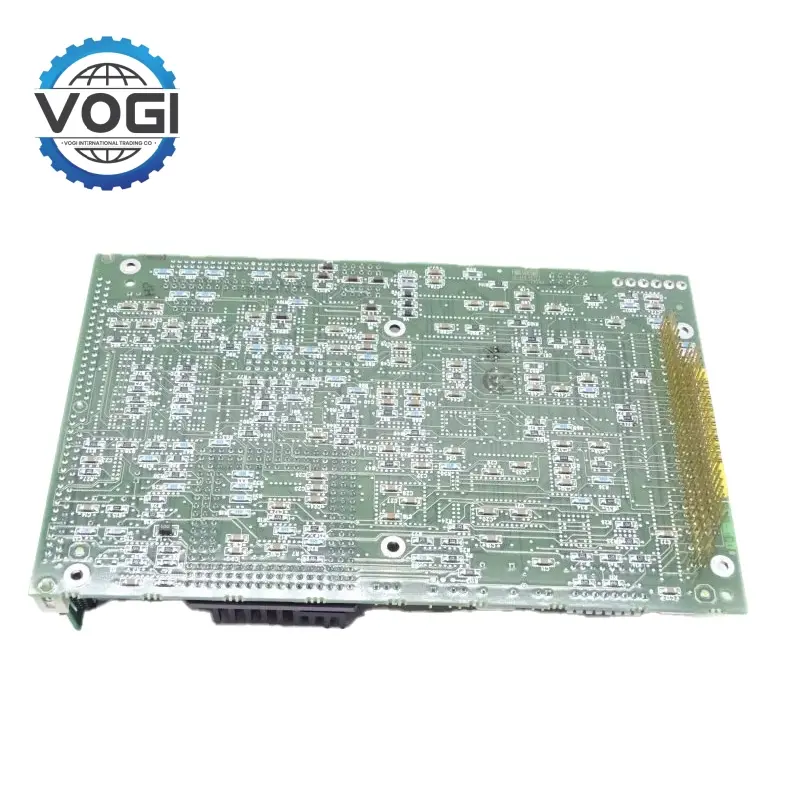

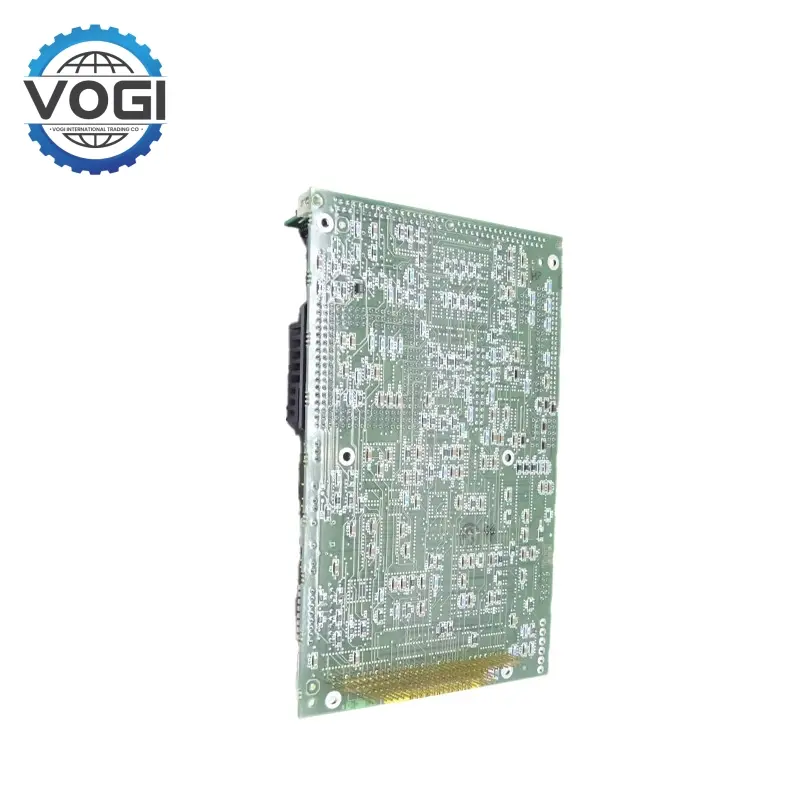

GE DS200UCPBG5AFB I/O Engine CPU Board

Nominal input voltage: 24 VDC ±10%

Operational Temperature: -20°C - 60°C.

Processing Output: 600 MIPS

RAM/Flash : 256 MB of RAM and 1 GB of application program files.

Communications: Ethernet/IP, Profibus-DP, Modbus TCP and RS-485.

Analog Output Channels: 8 digital output channels and 16 analog output channels.

MTBF (Mean Time Between Failures): more than 50000 hours.

Ultra-fast data collection: It has an advanced data capture system that can sample many input signals at very fast speeds. In power grid sensing, it can quickly collect information from voltage and current sensors, instantly providing a broad view of the power grid condition. This can detect surges or power drops early and take corrective actions immediately.

Multi-protocol communication: The GE DS200UCPBG5AFB is based on a multi-protocol communication platform, enabling it to support a wide range of communication protocols, such as Ethernet/IP, Profibus-DP, and Modbus TCP. This adaptability allows seamless merging with different industrial control structures such as programmable logic controllers (PLCs) and distributed control systems (DCSs). It can also automatically share data with other machines in a plant or factory, improving the cohesion of the entire system.

Fault Detection and Diagnostics: An integrated fault detection utility continuously monitors the internal parts and operating parameters of the equipment. When a problem occurs, it can quickly pinpoint the root cause — a faulty sensor, lost communications, overheating, or other reasons that led to the failure.

Power plants: Steam turbine control in thermal and combined cycle power plants.

Oil and gas: Remote control of compressor stations and pumping stations.

Heavy industry: Anti-cycling and protection of large motors and fans.
