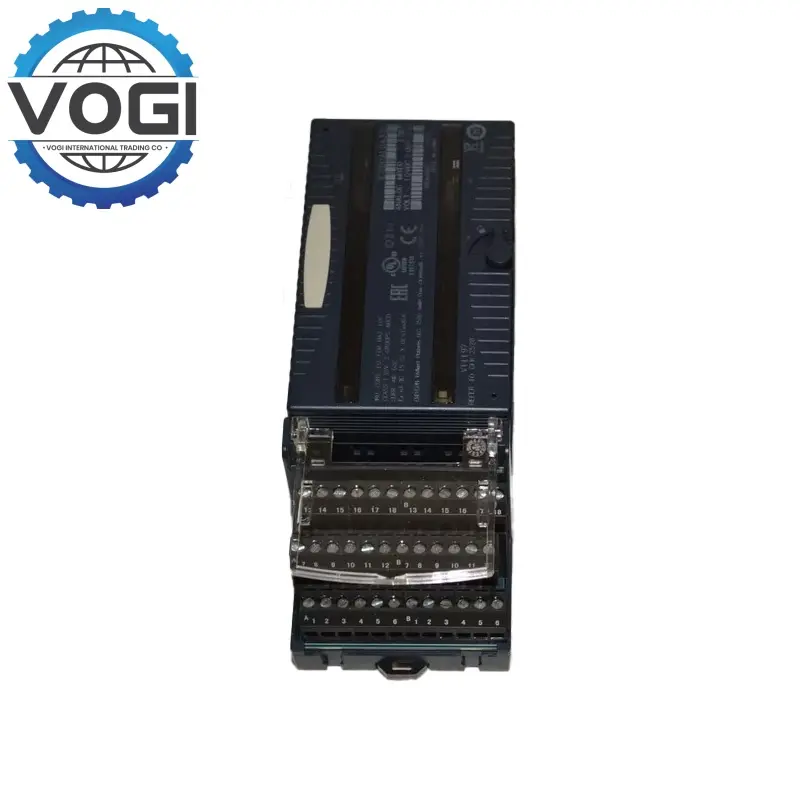

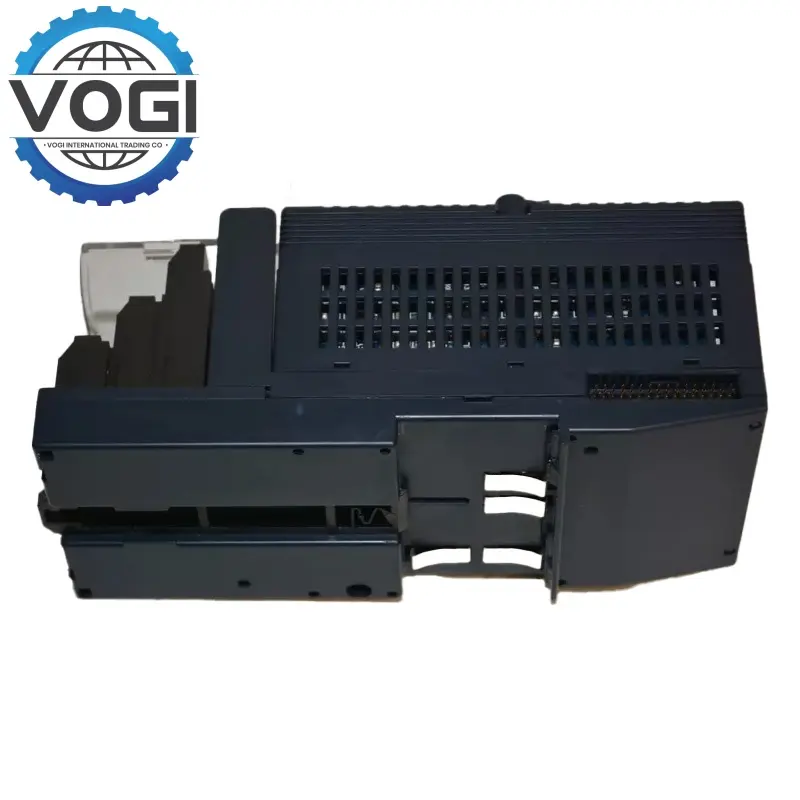

GE IC200ALG432 Analog Input Modules
Key SpecificationsVOGI
Input type: 4-channel single-ended analog input, voltage range -10 VDC to +10 VDC, resolution 12 bits
Output type: 2-channel single-ended analog output, voltage range -10.24 VDC to +10.24 VDC, resolution is also 12 bits
Update rate: 0.4 ms / channel
Input response time: 5 ms (after filtering)
External power supply: supports 18-30 VDC or 9.6-15 VDC
Output power supply: requires independent external 24 VDC power supply, total current consumption 160 mA
Operating temperature: 0°C to +60°C
Storage temperature: -40°C to +85°C, supports wide temperature environment operation.
Humidity: 5%-95% non-condensing, adapt to high humidity environment.
Vibration and shock: can withstand 10-500 Hz, 5G vibration (operating state) and 30G shock
Key FeaturesVOGI
High-performance signal processing capability
High-precision analog conversion, GE IC200ALG432 can accurately capture tiny signal changes, suitable for chemical, energy and other scenarios with strict precision requirements; high-speed dynamic response, can track fast-changing industrial processes in real time, such as real-time speed control of motor drive systems; mixed signal integration, compatible with sensors, actuators and other equipment.
Industrial-grade reliability design
Wide environmental adaptability, GE IC200ALG432 can adapt to extreme industrial environments such as high and low temperatures; anti-interference ability, effectively resist electromagnetic interference (EMI) and voltage transients; high stability and life, MTBF up to 100,000 hours; PCB board treated with moisture-proof and anti-corrosion coating, can operate stably in high humidity, dusty and corrosive environments; intelligent diagnosis and protection, support detection of user-side power loss and trigger alarms.
Flexible system compatibility
Modular collaboration, GE IC200ALG432 can be mixed with modules such as IC200ALG320 (current output) and IC200ALG322 (universal analog input) to build complex control systems. For example, in petrochemicals, temperature and pressure input modules can be combined to achieve multivariable closed-loop control.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$67 |
|
Southeast Asia |
$20 |
|
South Asia |
$90 |
|
South Africa |
$72 |
|
Europe and USA |
$41 |
|
Russia |
$81 |
APPLICATIONVOGI
Process control
IC200ALG432 is used in the chemical and pharmaceutical industries to adjust valve opening, reactor temperature/pressure closed-loop control, and ensure accurate adjustment of process parameters.
Energy management
Photovoltaic inverter power regulation, energy storage system charge and discharge control, IC200ALG432 improves energy efficiency through real-time monitoring and adjustment.
Motor drive
Inverter speed setting, servo system position control, IC200ALG432 uses high-speed response characteristics to achieve precision motion control.
