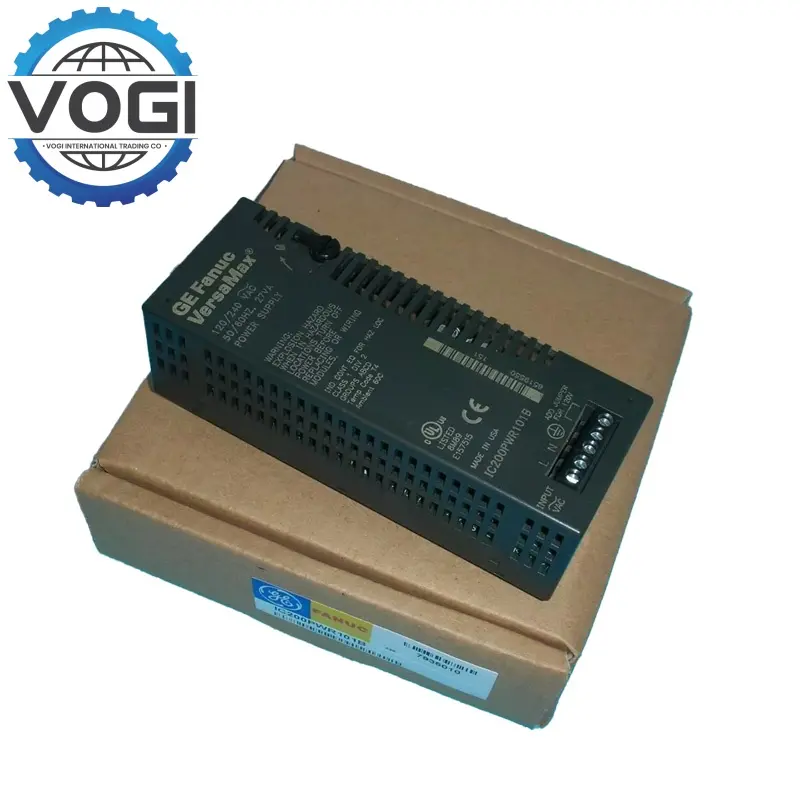

GE IC200PWR101 Power Supply Module

Inputvoltage: 120/240V AC; jumper selectable

120V mode: 85-132V AC (jumper cap needed)

– 240V operation: 176-264V AC (no jumperrequired)

Input frequency: 47-63Hz

Input power: 27VA (typical)

Output Rating: 5V/DC (Direct Current) (Primary Output) 3.3V/ DC (Direct Current)Polarity Pin 4 and 9/- DC (Direct Current) Plug This has been tested to ensure that this does not damage the Adapter.

Output Current: - 5V: <=1.5A (needs to remove 3.3V load; -3.3V: <=0.25A

Hold time: ≥20ms

Protect: short circuit protection, overloadprotection

Protection level: IP20

Operating temperature range: 0°C to+60°C

Temperature of storage:-40°C to+85°C

Humidity:5 to 95% (non-condensing)

Resistant to vibrations: 10-55Hz,0.5g (IEC 60068-2-6)

85-264V AC: The IC200PWR101 supports global power grid standards and can work in voltage fluctuation environment along without any extra voltage stabilization device(such as under-voltage or transient shocks).

​Frequency compatibility​: 47-63Hz, applicable to mostregions.

Efficient output and power​

24V DC fixed output, IC200PWR101 with 5A current, up to 120W Power, suitable for smalland medium PLC systems.

Energyefficient design: At least 85% energy conversion efficiency, significantly reducing energy consumption and one of the leading images to help the planet.

Modular and compact design​

Size reduction​: Standard VersaMax modulardesign, a certain size must be referred to the manual, which saves space for the control cabinet.

​Hot swap​: IC200PWR101 supports hot swapping, providing active replaceand increasing maintainability of the system.

Numerous ways to staysecure

Over current / over voltage / short circuit protection：Cut off or limit the current of the equipmentto avoid damage.

​Extendable protection Over-heat protection will likely be available (to be confirmed) to work in those high heat environments.

Industrial-grade durability

Operating temperature:-20 simplewan - 70 Degree Celsius, suit for tough environment(outdoor or high temperature workshop)

​Solid immunity:GE IC200PWR101 is EMC-approved to prevent electromagnetic interference in an industrial setting.

Industrial Automation -IC200PWR101: supplies reliable power for your PLC, Sensor,and Actuator..

Distributed I/O Systems: IC200PWR101 iscompatible with auxiliary power supply modules for extending power supply capacity.

Key Equipment: IC200PWR101 has the capacity of redundant configuration, used in medical, energy andother sectors.
