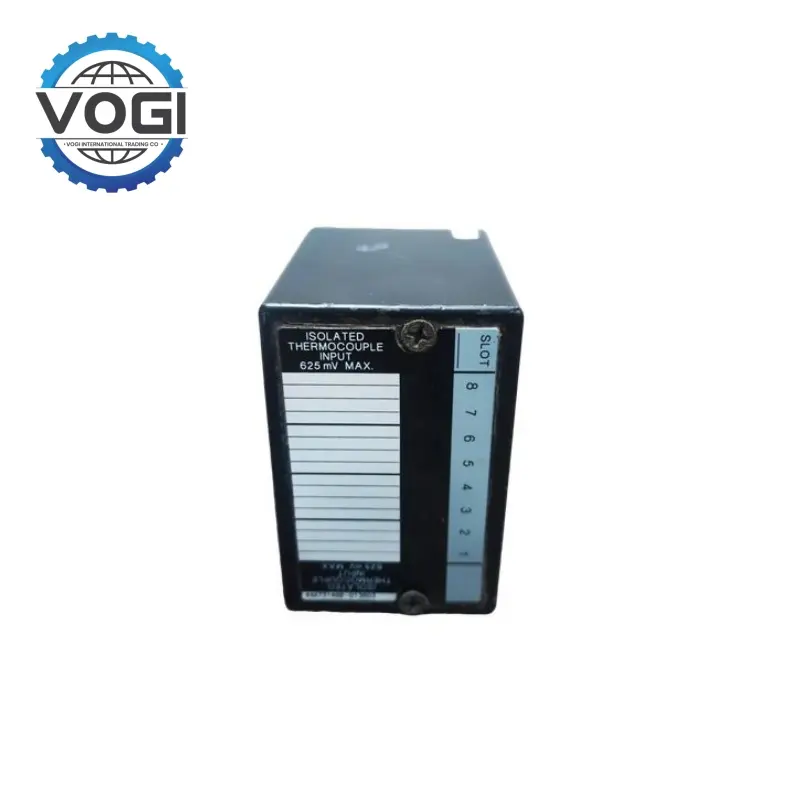

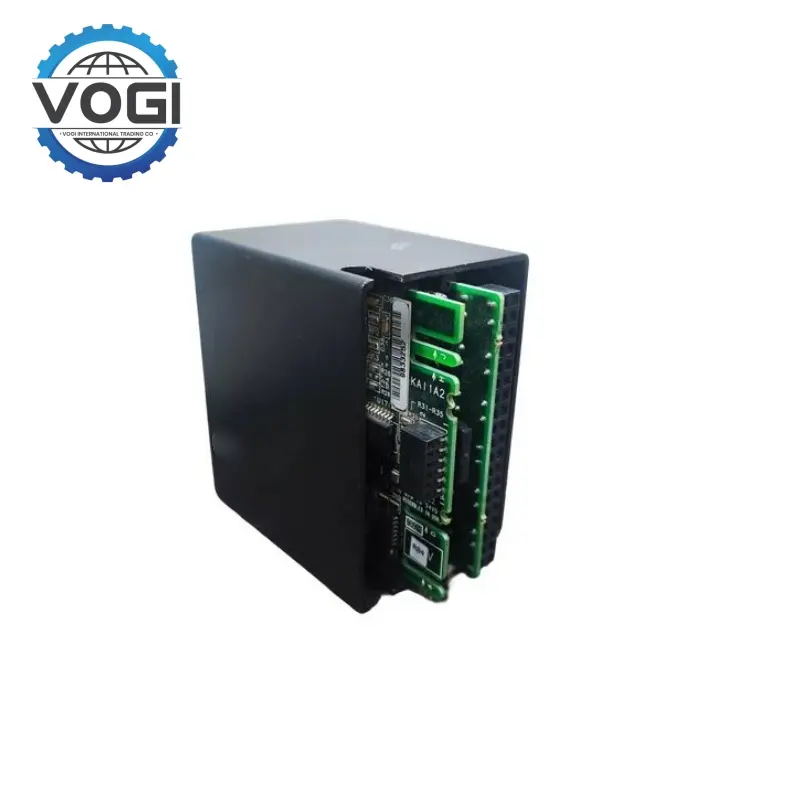

GE IC670ALG630 Field Control Thermocouple Input Module
Key SpecificationsVOGI
Number of Channels: 8.
Converter Resolution: 15 bits + sign.Accuracy: ±0.1% of reading and ±0.05% of span for J, K, T, and E thermocouple types at 25°C
Normal Mode Rejection: 60 dB at 50/60 Hz, 100% span.
Common Mode Rejection: 120 dB at 50/60 Hz, 100 Ohm imbalance.
Maximum Voltage between Channels: 250 VAC
Current Drawn from BIU Power Supply: 195 mA maximum
Operating Temperature Range: 0 to 60°C.
Key FeaturesVOGI
High Resolution Conversion: GE IC670ALG630 has a 15-bit plus sign converter resolution, complete with an integrated circuit to convert the analog thermocouple signal into a digital form, to deliver high-precise temperature measurement data.
High Isolation Voltage: The isolation voltage of the module is 1500 volts ac for 1 minute and 250 volts ac, and the isolation voltage between channels is also 250 volts, which can effectively isolate the channels from each other and prevent crosstalk and interference between channels.Individual Channel Configuration: Each of its 8 channels of GE IC670ALG630 can be configured to report the sensor reading as either a temperature type or millivolt type reading, addressing various measurement and control needs.
Alarm and Range Configuration:The configurable high/low alarm levels and millivolt ranges enable the alarm module to monitor the measured value in real time and issue the corresponding alarms when the measure value exceeds the limit range
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$51 |
|
Southeast Asia |
$15 |
|
South Asia |
$56 |
|
South Africa |
$46 |
|
Europe and USA |
$27 |
|
Russia |
$51 |
APPLICATIONVOGI
Temperature measurement: GE IC670ALG630 can be connected to different thermocouples with a measurement range of -270℃ to +1800℃. It is widely used in muffle furnaces, heat treatment instruments, chemical industry and other occasions that require automatic temperature control.
Process monitoring: In the production process of chemical, petroleum, pharmaceutical and other industries, temperature parameters can be monitored in real time, and accurate data can be used to support process control to ensure the stability of the production process and product quality.Safety: In addition to the acceptance of GE IC670ALG630, this equipment does not have the function of protecting and monitoring the temperature of key equipment. When the temperature exceeds the preset safety value, an alarm indication signal is issued, an alarm is issued in time, and the load is cut off to avoid equipment damage or accidents.
