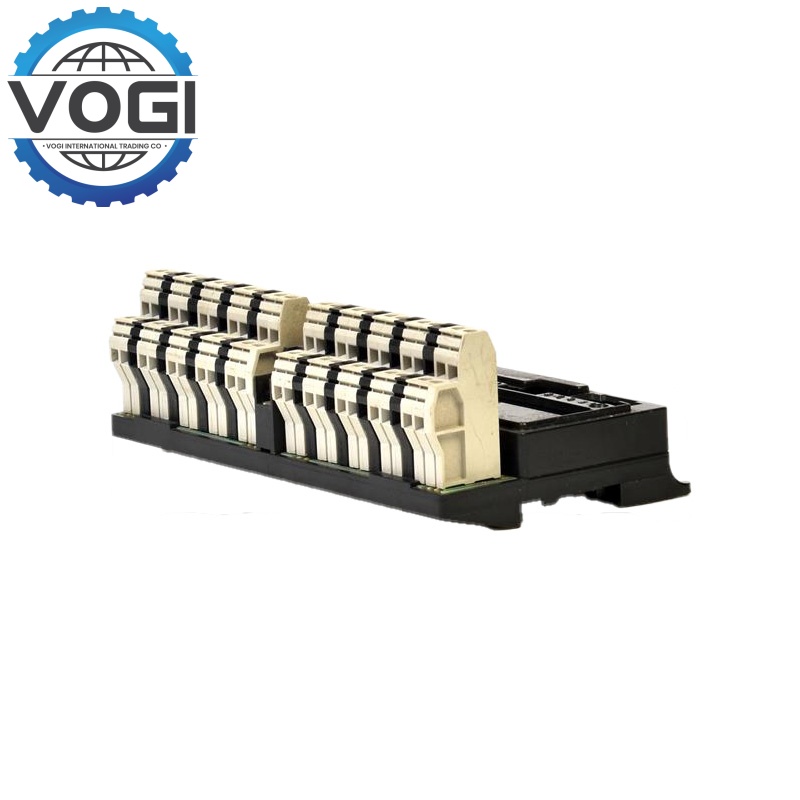

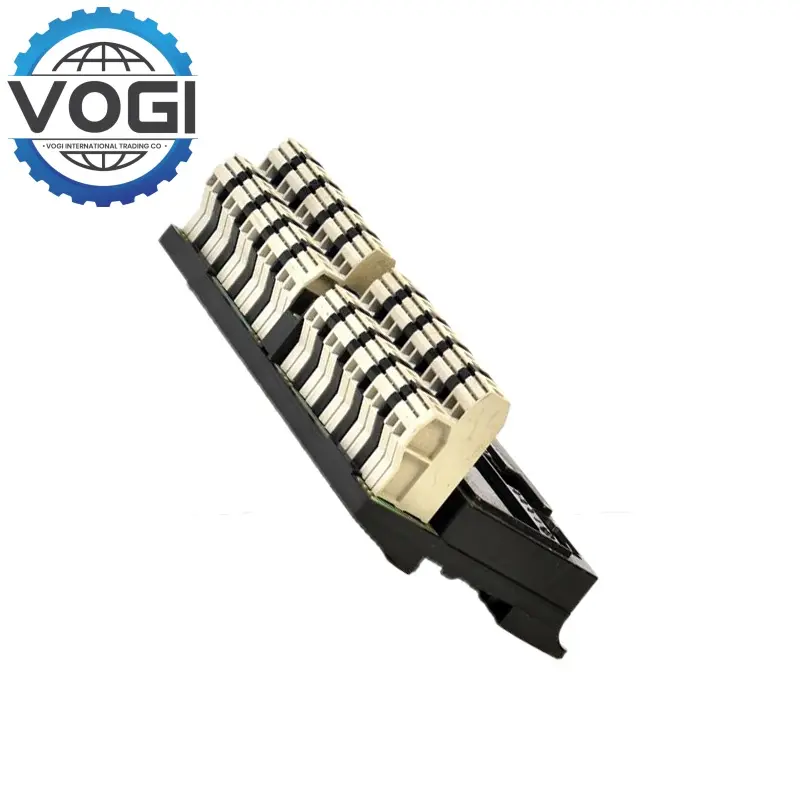

GE IC670CHS002 I/O Terminal Block

Backplane power supply: +5V DC

External power supply (optional): 24V DC

DeviceNet interface

Communication rate: Supports 125 kbps, 250 kbps, 500 kbps

Node capacity: Supports up to 63 slave devices (Node 0-63)

Data exchange: Supports I/O polling and explicit message communication.

Interface type: 5-pin detachable terminal (DeviceNet compliant)

Environmental adaptability

Operating temperature: 0°C to 60°C (storage temperature: -40°C to 85°C)

Humidity: 5% to 95% (non-condensing)

Power supply and power consumption

Backplane power consumption:

Typical value 1.5W (5V DC backplane power supply)

DeviceNet network power supply:

Requires external 24V DC power supply (maximum current depends on network load)

DeviceNet master communication function

Compatible with CIP (Common Industrial Protocol), IC670CHS002 supports explicit messages (parameter configuration) and implicit I/O data (real-time control).

Multi-rate adaptation: The communication rate can be configured to 125/250/500 kbps to adapt to different network scales and real-time requirements.

Large-scale node management: Supports up to 63 slave nodes to meet the device access requirements of medium and large distributed control systems.

Seamless integration and plug-and-play

VersaMax compatibility: GE IC670CHS002 can be directly plugged into the VersaMax backplane, seamlessly collaborate with GE PLC/PACSystems controllers, and automatically assign I/O mapping.

Powered by the backplane (+5V DC), it simplifies system power supply design.

Network automatic scanning: Supports online scanning of DeviceNet network nodes, automatically identifies slave devices and generates configuration templates, reducing manual setting time.

Real-time diagnosis and reliability

Status visualization: GE IC670CHS002 has built-in LED indicators (power, network status, fault) to quickly locate communication interruptions or node abnormalities.

Supports viewing detailed network diagnostic information (node offline, data conflict, etc.) through software (such as Proficy ME).

Anti-interference design: GE IC670CHS002 complies with EMC industrial standards, resists electromagnetic interference, and ensures stable communication in harsh electrical environments.

Flexible configuration and management

Parameter programmability: IC670CHS002 can configure the I/O data length, polling cycle and fault timeout strategy of each slave station to optimize network load and response speed.

Supports predefined master-slave connections (PDO) to simplify real-time data exchange logic.

Firmware upgradeable: Update firmware through software tools to be compatible with future DeviceNet protocol expansions or function enhancements.

Industrial-grade durability

Harsh environment adaptability: Operating temperature range 0°C to 60°C, suitable for high-temperature workshops or low-temperature storage environments. Anti-vibration/shock design, in line with IEC 60068-2 industrial environment standards.

Compact modular design: Standard VersaMax size, saves control cabinet space, supports multi-module parallel expansion.

Distributed control: GE IC670CHS002 is suitable for production lines that require distributed I/O (such as automotive manufacturing, food packaging), reducing wiring costs.

Device interconnection: GE IC670CHS002 connects to third-party DeviceNet devices (such as inverters, valve controllers) to achieve collaborative control of multi-brand devices.
