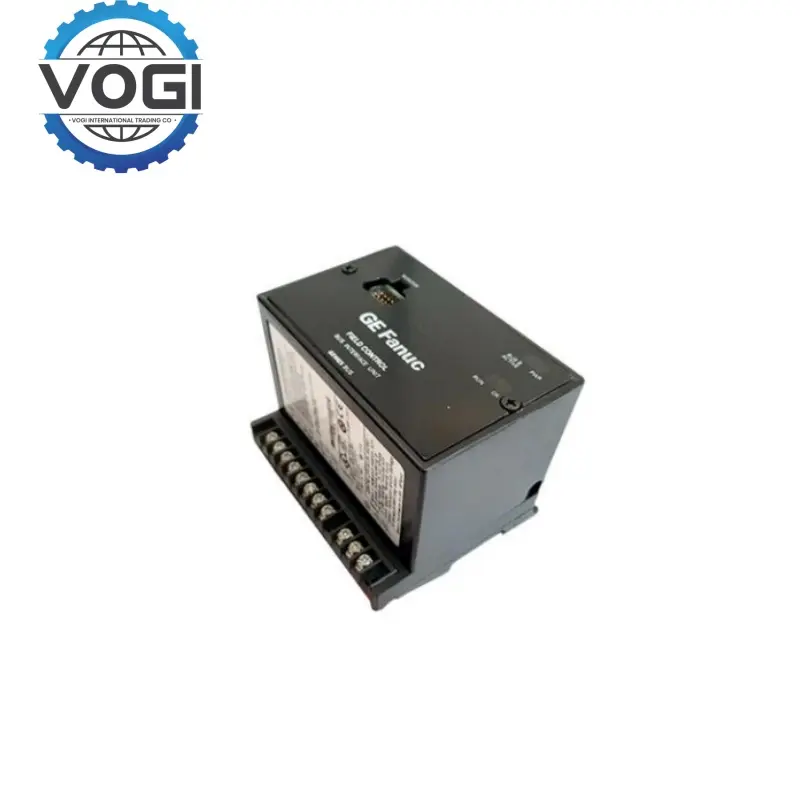

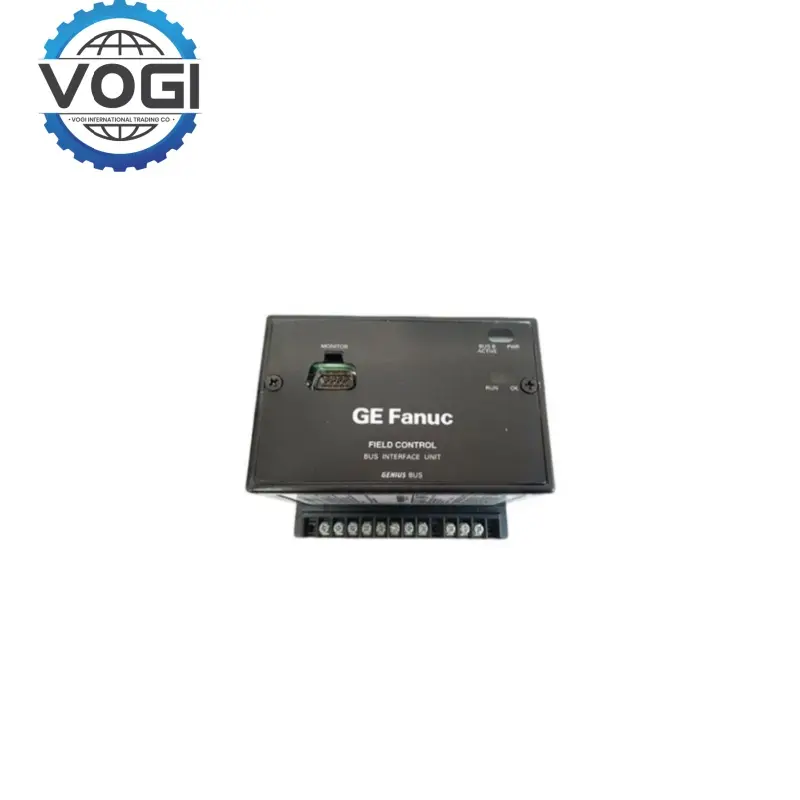

GE IC670GBI002 Bus Interface Unit

Main power: 18-30 VDC (nominal 24 VDC);

Power consumption: 16.8 W (continuous), surge current 15-50 A (peak, 3 ms).

Genius bus protocol, supports data exchange with the main PLC or computer.

Supports 128 bytes of input and 128 bytes of output, adapting to discrete or analog signals.

A single module hosts up to 8 field I/O modules to meet the needs of distributed control systems.

UL, CE, FCC certified, in line with industrial electromagnetic compatibility standards.

MTBF (mean time before failure): 183,000 hours, redundant CPU configuration supports hot standby.

Power output: 6.5 VDC, maximum current 1.4 A, hold time 10 ms.

Non-hazardous locations, external protection equipment is required for use in hazardous areas;

Compatible with GE 90-30/70 series, Six series, Five series PLCs.

As a bus interface unit (BUI), it realizes high-speed data exchange with the main PLC or computer through the Genius bus, supports 128 bytes of input/output data capacity, and meets the needs of industrial real-time control.

A single module can host up to 8 field I/O modules (such as discrete and analog modules), supports hot swapping, and adapts to the flexible expansion of distributed control systems.

High reliability and redundant design

Industrial-grade wide temperature (0°C to + 55°C), dustproof design, MTBF up to 183,000 hours, supports redundant CPU configuration and dual bus architecture to ensure the continuity of critical systems.

Intelligent diagnosis and remote management

Built-in self-diagnosis function, real-time monitoring of module and I/O status, and quick fault location through LED indicators; supports remote parameter configuration and firmware update to simplify maintenance processes.

Main power supply 18-30VDC (nominal 24VDC), supports 6.5VDC/1.4A output for I/O modules, with surge current protection (15-50A peak) and 10ms hold time.

Certified by UL, CE, FCC, in line with industrial electromagnetic compatibility standards, suitable for non-hazardous locations, and external protection devices are required in hazardous areas.

DIN rail installation (≥108mm), supports terminal block wiring and wire-to-board connectors, and supports hot removal without affecting system operation.

Signal acquisition and execution control of manufacturing production lines and robot systems, and discrete/analog signal processing in conjunction with GE 90-30/70 series PLCs.

Equipment status monitoring and control (such as transmitter signal conditioning) of power plants and substations, data acquisition and inverter control of new energy grid-connected systems.

Distributed control systems (DCS) in the fields of oil refining, chemical industry, pharmaceuticals, etc., drive actuators such as regulating valves and inverters, and support explosion-proof environment expansion.

Environmental parameter monitoring (such as temperature, humidity, and pressure) of transportation hubs such as subways and airports, as well as intelligent linkage of heating, ventilation, and air conditioning (HVAC) and lighting systems.

Key scenarios (such as water treatment and large manufacturing workshops) that require dual-machine hot standby or dual-bus configurations ensure seamless switching in the event of system failures.

Integrated into the Building Automation System (BAS) to achieve remote monitoring of equipment and energy consumption optimization, and support data upload of the Industrial Internet of Things.
