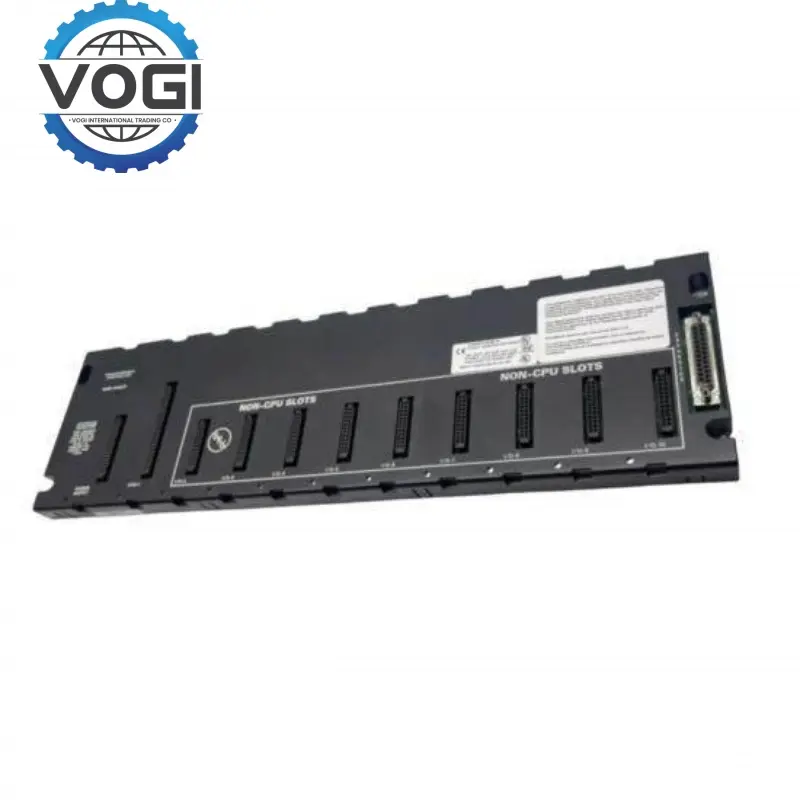

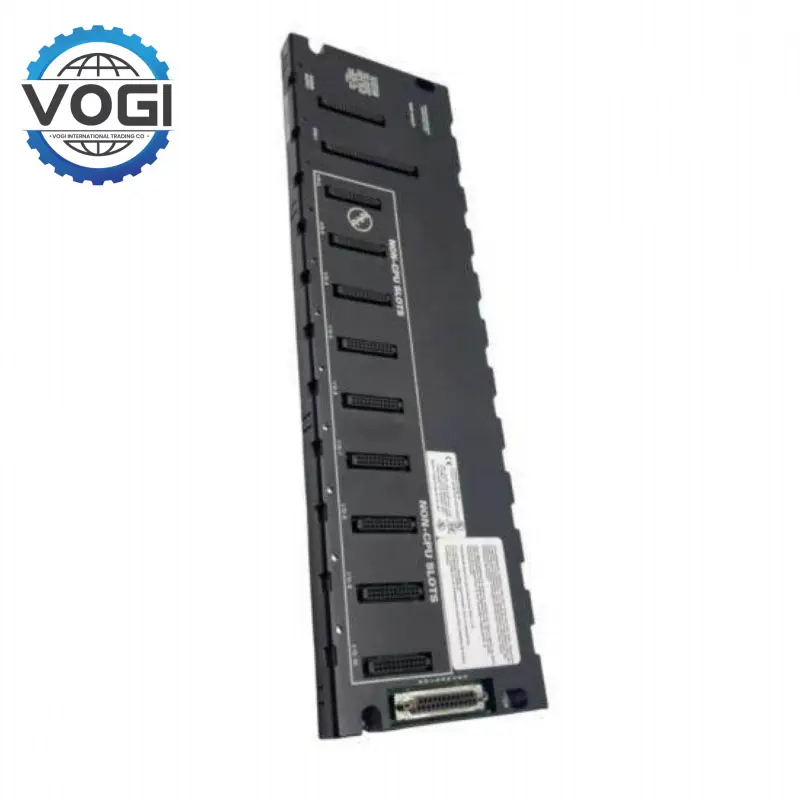

GE IC693CHS392 Expansion Baseplate
Key SpecificationsVOGI
Power input: 24VDC ±15% , supports dual power redundant input , typical power consumption is less than 10W.
Communication interface: Dual Ethernet ports , supports Modbus TCP/IP, SNMP, EtherNet/IP protocols, compatible with GE PACSystems control system.
Processor: 600MHz Pentium-M microprocessor, supports real-time multitasking, built-in turbine protection algorithm.
Memory: 64MB user memory + 64MB flash memory , supports program expansion and online diagnosis.
Digital I/O capability: supports up to 32K bits of discrete input/output ; 32K words of analog input/output , 12-bit resolution.
Serial interface: RS232/RS485, supports Modbus RTU, SNP, Serial I/O;
Supports SRTP secure real-time transmission protocol and EGD;
Operating temperature: -20°C to +60°C, storage temperature -40°C to +85°C;
Humidity range: ≤95% RH, in line with industrial protection standards
Expansion capability: supports 8 rack expansions, suitable for hazardous location certification.
Key FeaturesVOGI
High-performance processing capability: GE IC693CHS392 600MHz Pentium-M processor supports complex logic operations and real-time control, with a Boolean execution speed of 0.069ms/thousand steps; GE IC693CHS392 built-in real-time monitoring algorithms for turbine overspeed, vibration and other parameters, with a response time of less than 1ms.
Multi-protocol compatibility: Dual Ethernet ports support industrial standard protocols such as Modbus TCP/IP and EtherNet/IP, and are flexible to adapt to different application scenarios.
Modular expansion capability: GE IC693CHS392 Supports vertical stacking installation, saves cabinet space, and is suitable for complex industrial environments; VSVO processor boards can be connected via 37-pin cables to achieve multi-module collaborative control.
High-reliability redundant design: Dual power input and CPU redundancy ensure continuous operation of critical systems;Built-in temperature sensor and overload protection can monitor module status in real time and automatically trigger fault isolation.
Remote monitoring and diagnosis: GE IC693CHS392 Supports FTP and HTTP protocols, and can be remotely configured and monitored through the Web interface; LED indicators can quickly locate abnormal conditions, support fault diagnosis and remote firmware upgrades.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$43 |
|
Southeast Asia |
$31 |
|
South Asia |
$56 |
|
South Africa |
$46 |
|
Europe and USA |
$27 |
|
Russia |
$51 |
APPLICATIONVOGI
Energy industry: gas turbine, steam turbine servo valve control, power substation automation system;
wind turbine pitch system, hydropower station governor control.
Industrial manufacturing: precision mechanical motion control; production line synchronous drive, packaging equipment servo motor control.
Petrochemical: refinery compressor flow regulation, chemical plant pump equipment pressure control; oil and gas extraction platform valve positioning system, pipeline transportation monitoring.
Railway transportation: train braking system, door servo control; high-speed rail traction motor status monitoring and fault diagnosis.
Infrastructure: water treatment plant valve positioning, fan speed control; intelligent building HVAC system.
