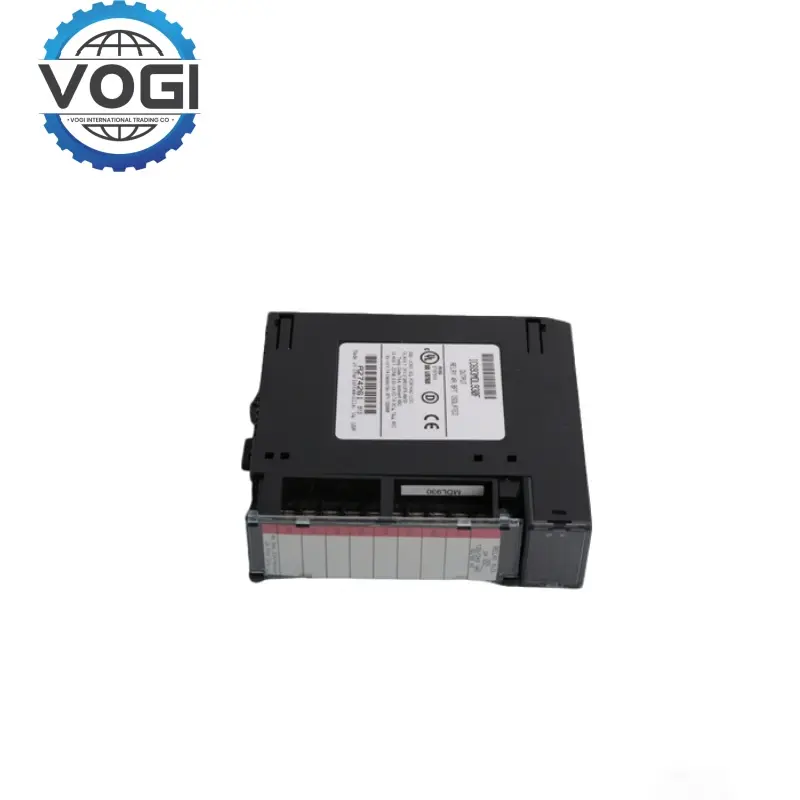

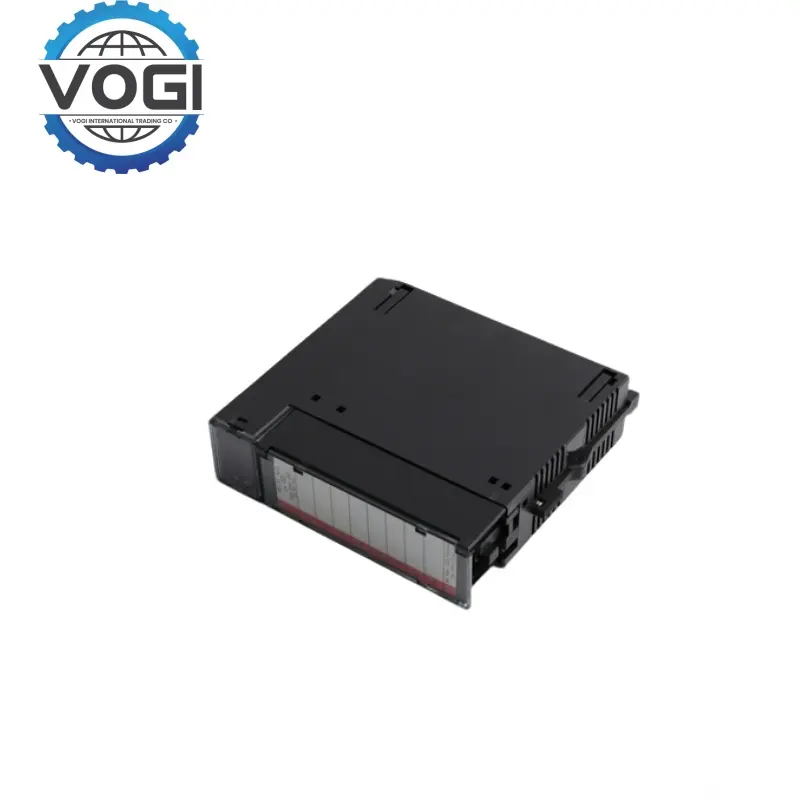

GE IC693MDL930 Relay Output Module
Key SpecificationsVOGI
Power input: 24VDC±15%
Output channel: 8 analog outputs
Current output: 0-20mA, 4-20mA, load capacity ≤500Ω.
Voltage output: 0-10V, ±10V, output impedance ≥100kΩ.
Resolution: 12 bits (voltage mode) /12 bits (current mode);
Accuracy: ±0.1% FS
Isolation level: in line with IEC 61131-2 standards;
Update rate: 8ms/ channel.
Load protection: short circuit protection (current mode), overvoltage protection (voltage mode);
Operating temperature: 0℃~ +60℃
Humidity range: ≤ 95%RH, in line with EN 50178 standard;
Installation method: DIN rail or panel mounting, hot swappable;
Key FeaturesVOGI
High precision and flexibility: 12-bit resolution supports fine control and is suitable for equipment that requires precise adjustment. Channels are independently configured with voltage/current output and are compatible with a variety of industrial standard signals.
Reliable isolation and protection: GE IC693MDL930 500V DC channel-to-channel isolation effectively resists electromagnetic interference in industrial sites and prevents signal crosstalk; built-in short-circuit and overvoltage protection extends module life and reduces maintenance costs.
Fast response and stability: 8ms high-speed update rate meets real-time control requirements. Temperature drift compensation technology ensures output stability over the full temperature range.
Modular expansion capability: GE IC693MDL930 Compact design supports multi-module stacking and is compatible with GE 90-30 series digital, analog and special function modules; supports hot-swap, no downtime for maintenance, and reduces production interruptions.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$35 |
|
Southeast Asia |
$23 |
|
South Asia |
$45 |
|
South Africa |
$37 |
|
Europe and USA |
$24 |
|
Russia |
$41 |
APPLICATIONVOGI
Process control: temperature/pressure regulation of chemical reactors, liquid level control of fractionation towers in refineries; pH value regulation of fermentation tanks in the food and beverage industry, flow control of filling equipment.
Energy and power: output control of reactive power compensation devices in substations; MPPT signal regulation of photovoltaic inverters.
Industrial automation: robot motion control; closed-loop control of printing press tension systems, hydraulic servo drive of injection molding machines.
HVAC: damper opening control of VAV systems in intelligent buildings; chiller flow regulation of chilled water, PID control of temperature and humidity in air conditioning systems.
Test and measurement: signal output of laboratory equipment; automotive electronic test bench.
