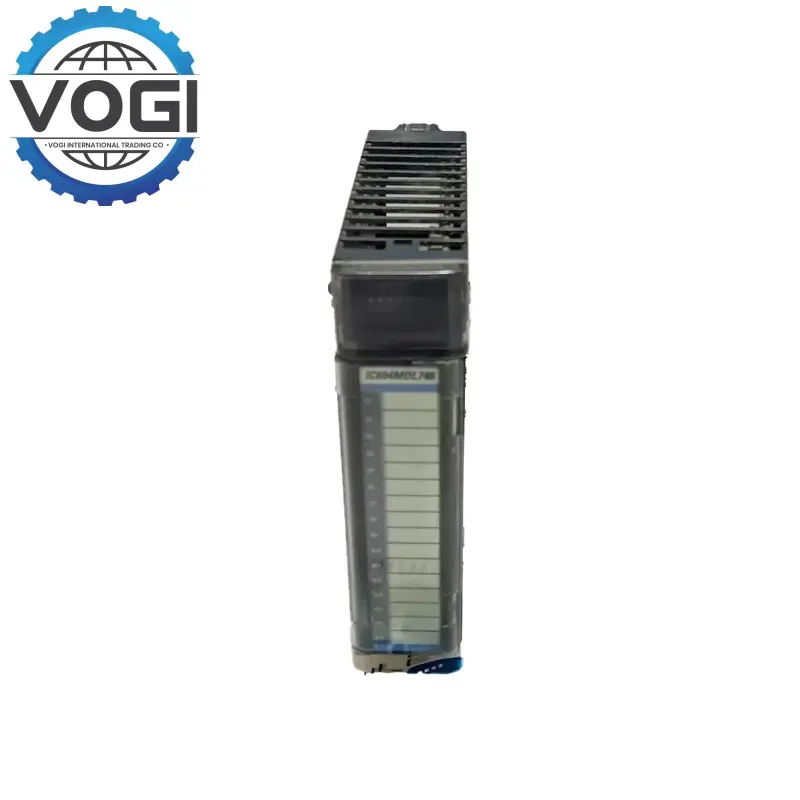

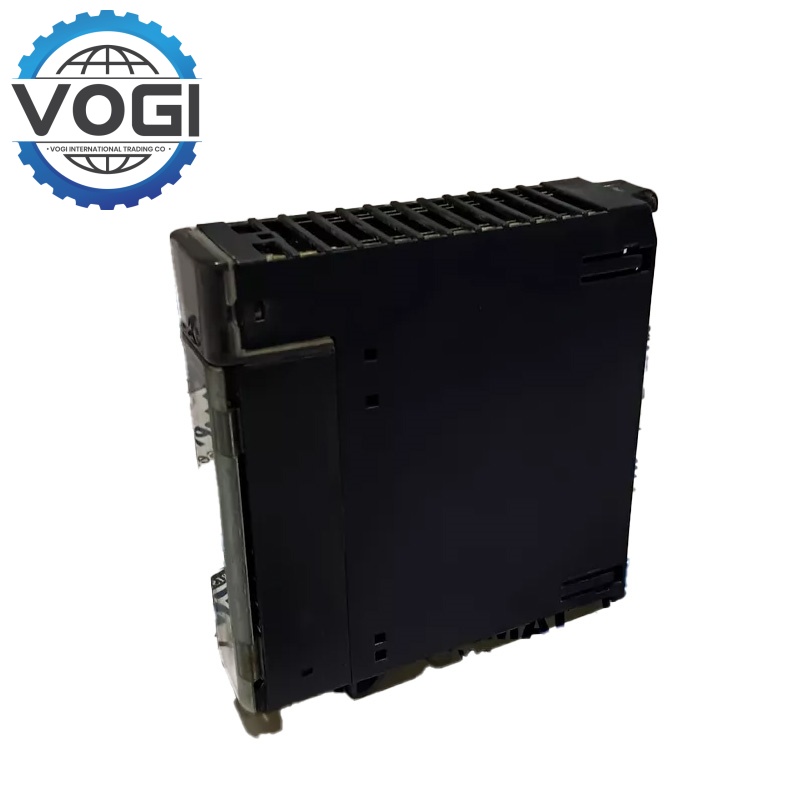

GE IC694MDL740 Positive Logic Output Module
Key SpecificationsVOGI
Input channels: 16/24 points DC input
Output channels: 16 points relay or transistor output
Isolation: Group isolation or channel isolation
Voltage range: 24V DC ±10%
Input current: Typical 4-8mA (on)
Response time: ≤1ms
Relay: 2A @ 230V AC / 2A @ 30V DC
Transistor: 0.5A @ 24V DC
Operating temperature: 0°C to 60°C
Storage temperature: -40°C to 85°C
Humidity: 5-95% (non-condensing)
Key FeaturesVOGI
Module Type
Digital Mixed I/O: Integrating digital input and output channels in one, IC694MDL740 is suitable for scenarios that require both signal acquisition and control.
Isolation and Protection
Photoelectric Isolation: Photoelectric isolation is used between the input/output channels and the logic circuit to enhance anti-interference capabilities; Overload Protection: The output end has short circuit and overload protection functions to improve system reliability.
System Compatibility
VersaMax Series Integration: IC694MDL740 is compatible with the VersaMax series PLC system and supports seamless communication with the main frame through the backplane bus.
Modular Expansion: IC694MDL740 supports the use with other VersaMax I/O modules (such as analog and communication modules) to flexibly expand system functions.
Configuration Flexibility
Programmable Logic Integration: IC694MDL740 is logically programmed through PACSystems or Proficy software to adapt to complex control needs.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$42 |
|
Southeast Asia |
$15 |
|
South Asia |
$56 |
|
South Africa |
$46 |
|
Europe and USA |
$27 |
|
Russia |
$51 |
APPLICATIONVOGI
Production line automation control
Collect sensor signals (such as photoelectric switches, limit switches, button status) through input channels, and control actuators (such as motor start and stop, cylinder movement, indicator lights) through output channels.
Packaging machinery
Monitor material position (input signal), control sealer, labeler, conveyor start and stop (relay output).
Material conveying system
Receive conveyor speed/position signal (input), control inverter or motor contactor (output).
Equipment status monitoring and alarm
Collect equipment fault signals (such as overload, temperature limit), trigger alarm lights, buzzers or shutdown protection (output).
Building automation
Monitor lighting, air conditioning, access control switch status (input), control relay drive load on and off (output).
