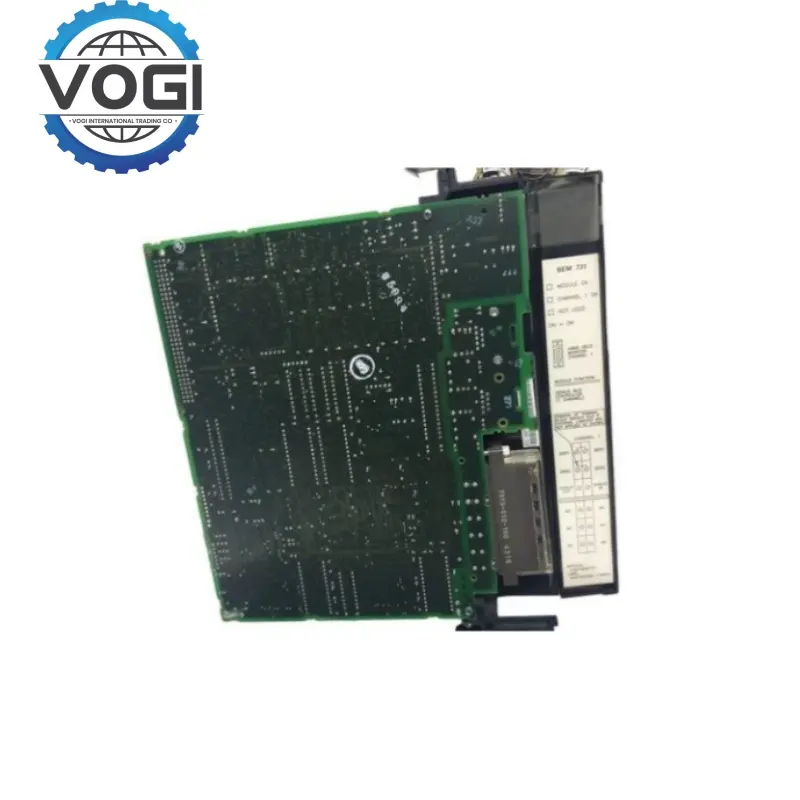

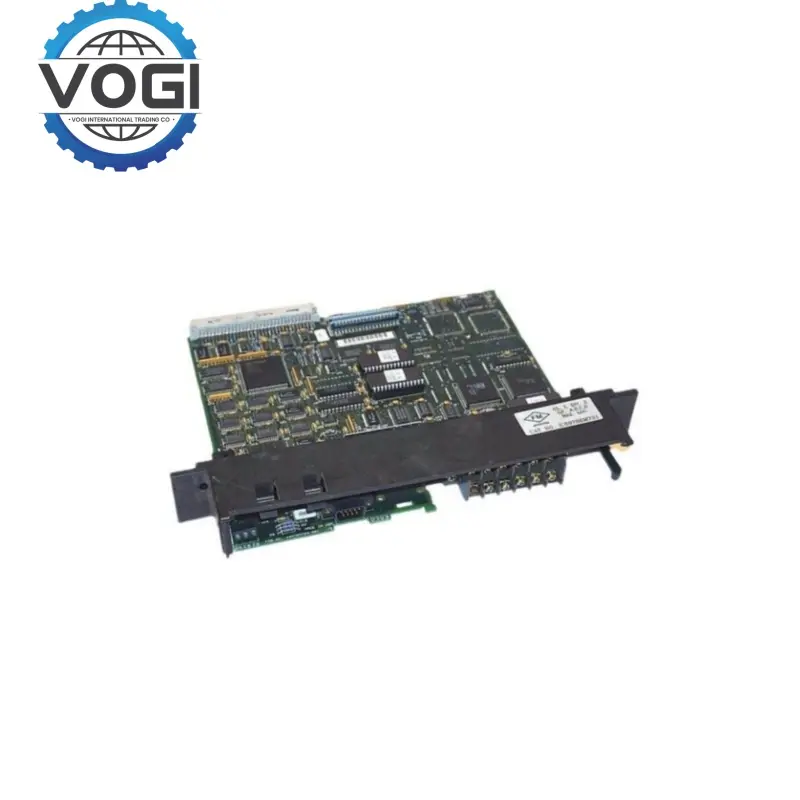

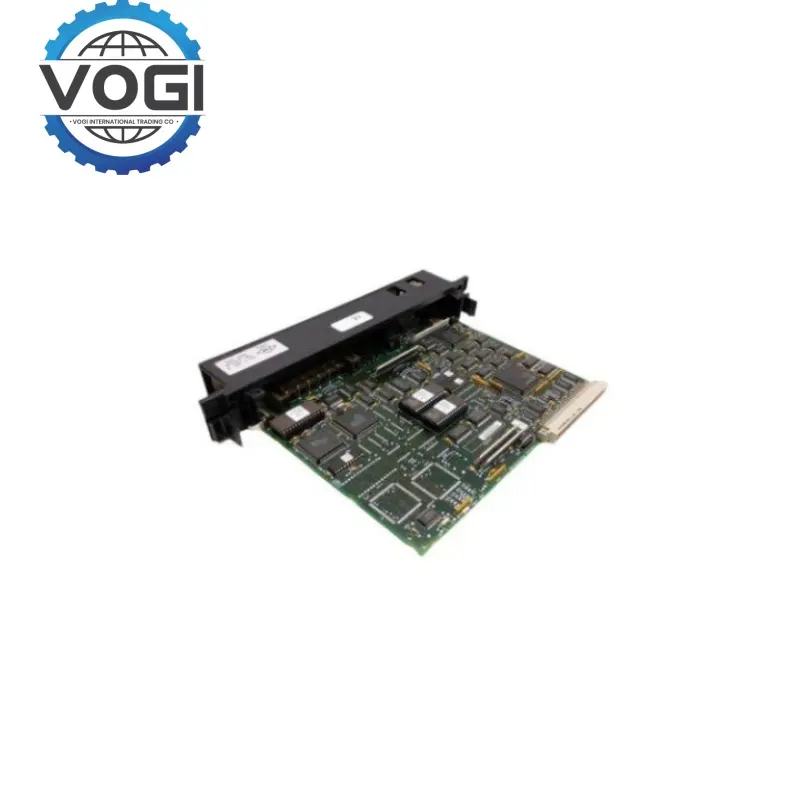

GE IC697BEM731 Bus Controller Module
Key SpecificationsVOGI
Power input main power: 5.0V DC;
Backplane current: 1.3A;
Communication interface: 1× bus controller channel + 1× handheld terminal port
Data rate: 153.5 kbaud , 76.8 kbaud, 38.4 kbaud;
Bus cable: Belden 9182 type
Cable distance: 2000-7500 ft;
Bus terminal: 75Ω and 150Ω resistors, to be installed at both ends of the bus;
Maximum number of devices: 30/channel, supports Genius I/O modules or remote devices;
Module width: single slot ;
LED indicator: 3
Configuration method: Windows/MS-DOS programming software
Application system: GE IC 66 PLC system.
Key FeaturesVOGI
Bus control and expandability:As a single-channel bus controller, GE IC697BEM731 supports IC66 series I/O modules and can connect up to 30 devices. supports asynchronous scanning, real-time transmission of I/O data through the backplane and CPU to ensure efficient communication.
Redundancy and reliability design :GE IC697BEM731 Supports redundant modules, cables and CPU configurations, built-in fault diagnosis functions, and real-time monitoring of abnormalities through LED indicators and alarm processors.
Flexible communication protocol: Supports global communication and peer-to-peer data transmission to meet distributed control needs.
Programming and configuration: Configured through MS-DOS or Windows programming software, supports multi-language programming such as ladder diagram and instruction list
Industrial-grade adaptability: GE IC697BEM731 Supports 5V DC power input, backplane current 1.3A, adapting to complex industrial environments; the bus cable is up to 7500 feet (adjusted according to the data rate) to meet long-distance deployment needs.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$35 |
|
Southeast Asia |
$15 |
|
South Asia |
$45 |
|
South Africa |
$37 |
|
Europe and USA |
$24 |
|
Russia |
$41 |
APPLICATIONVOGI
Industrial Automation Control：Used for production line motion control and material handling systems to achieve high-precision synchronous control.
Energy and Water Treatment：Suitable for continuous emission monitoring and distributed I/O management of water treatment plants, supporting remote equipment monitoring and data acquisition.
Infrastructure and Transportation：Integrated in elevator control systems and mining equipment to provide stable communication and logic control;
Process Monitoring and Safety: In the chemical/petrochemical industry, it is used for safety interlock systems and real-time alarm processing to ensure production safety.
