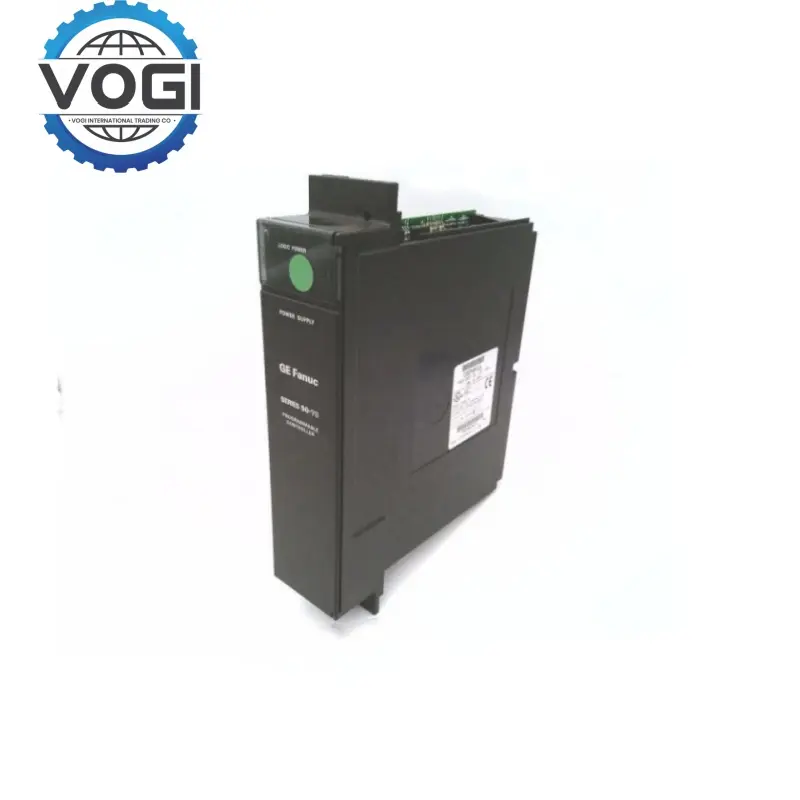

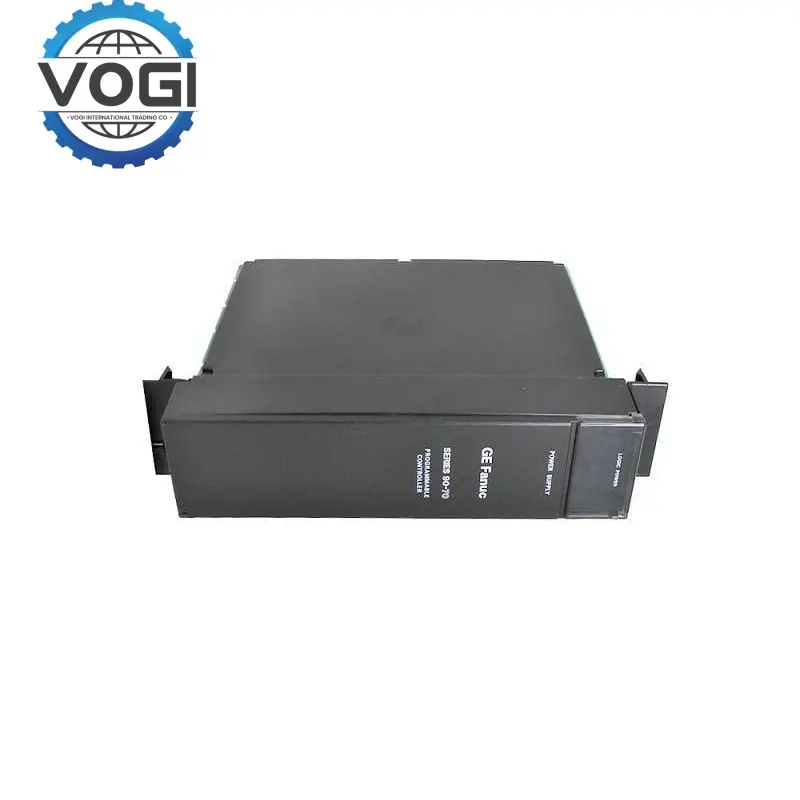

GE IC697PWR722 Power Supply Module

Input Voltage: 85 - 264V AC 47 - 63Hz; 100 - 300 V DC.

Voltage and Current Output: There are two outputs. One is a 5V DC output, peak output current of 10A; another is a 24V DC output, peak output current of 2A.

Output power: 100W.

Power supply efficiency: 85% - 90% is standard, may vary under conditions.

Voltage regulation: 5V output within ±1%; 24V output ±2%.

Ripple & Noise: Referred to output 5V: Typical 50mVp-p; 24V: 10MΩ, input and output.

Insulation Resistance: 100MΩ at 500VDC.

Wide Input Range: The wide AC and DC input range can adapt to various power supply environments.

Multiple Outputs: GE IC697PWR722 simultaneously meets the demand of different types of modules for different voltages, no need to configure additional power supply, simplifying the system design.

Energy-saving and stable: GE IC697PWR722 has higher the power supply efficiency, the less energy will be wasted, Power supply with good voltage regulation rate and low ripple noise provides output power supply stability that is beneficial to the stable operation of associated instruments.

Industrial automation: GE IC697PWR722 supplies power to PLC, sensors, actuators and other equipment in industrial automation production line to ensure stable operation of automation system.

Process control: In chemical, petroleum, electric power and other process control industries, it provides stable power supply for various modules and instruments in the control system.

Intelligent transportation: traffic signal control system, monitoring system, etc., to ensure the normal operation of transportation equipment.

Security monitoring: GE IC697PWR722 is used for security products such as surveillance cameras, alarm equipment, etc. to ensure the reliability of the security system.
