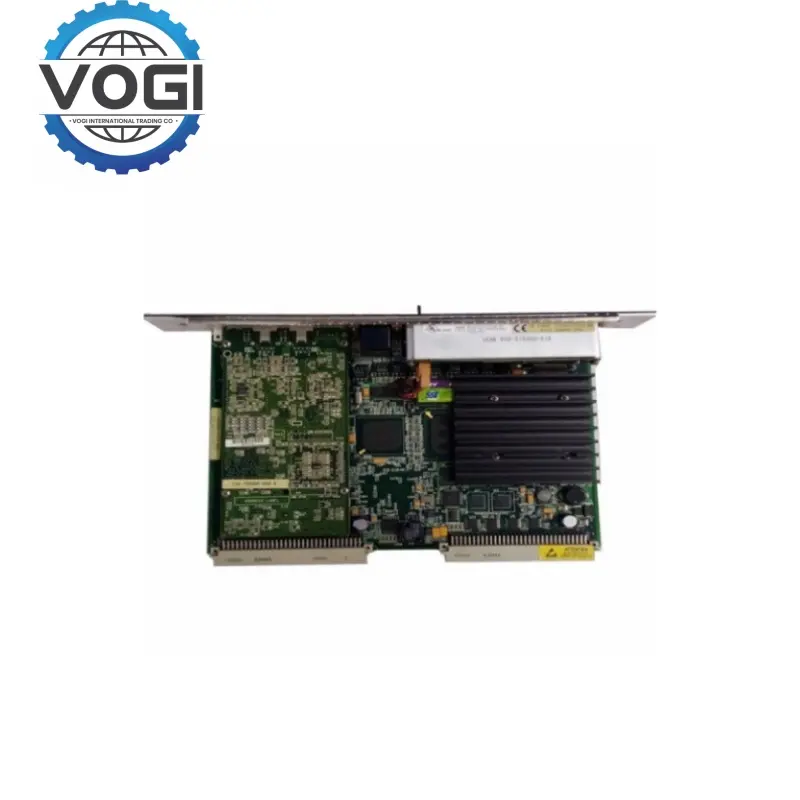

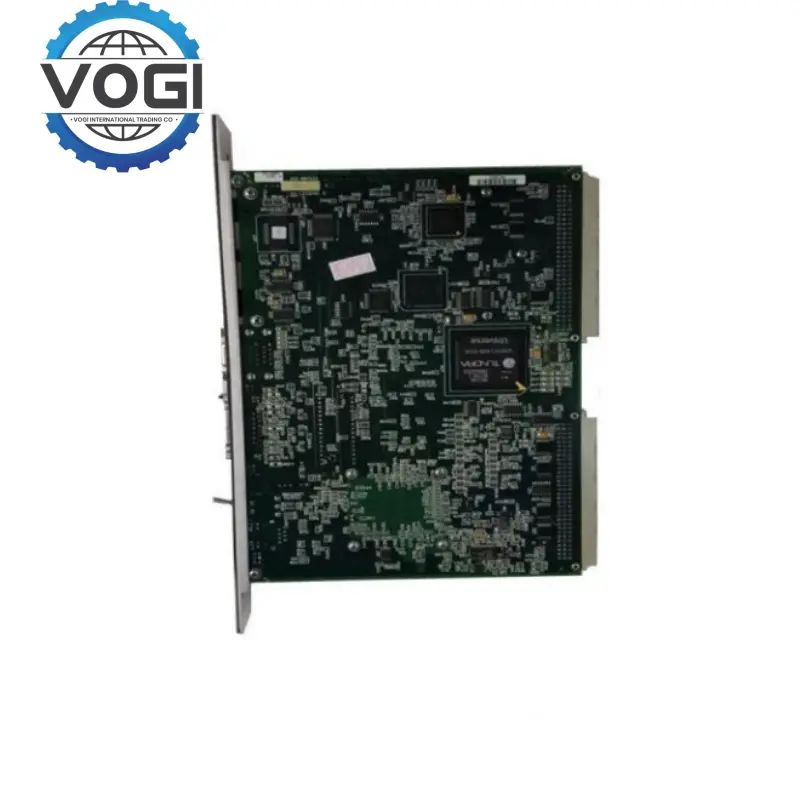

GE IC698PSA100 Power Supply Module
Key SpecificationsVOGI
Power Input Mains: 120/240V AC or 125V DC divided input voltage 85 - 264V AC 47 - 63Hz 100 - 150V DC
Output: +5v DC output; +12v DC output ; -12v DC output .
Power Input: Average power input is 125 W, max up to 150 W.
Output Power: max total output power 100 watts
Working Temperature: 0 to 60 degrees Celsius
Humidity range: 5% - 95% RH
Protection: over-current/over-temperature/over-voltage protection, in the event of an abnormal situation, it can automatically protect the power module and the connected equipment.
Power Factor: Power factor for AC operation power factor correction, minimum value is 0.99.
Mounting location: To be mounted in the leftmost position (i.e. slot 0) of the rack
Input terminals are US wire gauge #16 , and ground terminals are US wire gauge #12 .
Isolation: 1500V DC between plant and outputs.
Withstand voltage dips: 15 milliseconds withstand voltage dips without impairing the DC output.
Hold-up time: 5 ms minimum hold-up time at DC output when de-energized.
Key FeaturesVOGI
Wide range inputs: GE IC698PSA100support a wide range of voltage inputs, including a wide range of AC and DC voltages, which can be adapted to different power supply environments, with strong versatility.
Multiple Outputs: GE IC698PSA100 Provides three different voltage outputs to meet the needs of multiple devices with different voltages, reducing the need for additional power supply configurations.
Perfect protection: over-current, over-temperature and over-voltage protection functions can effectively protect the module and the connected equipment, and improve the reliability and safety of system operation.
Clear status indication: GE IC698PSA100 Equipped with LED indicators, it can visualize the site and output status, which is convenient for users to know the working condition of the power supply in time.
High power factor: power factor correction during AC operation improves energy utilization efficiency and reduces energy loss.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$35 |
|
Southeast Asia |
$23 |
|
South Asia |
$45 |
|
South Africa |
$37 |
|
Europe and USA |
$24 |
|
Russia |
$41 |
APPLICATIONVOGI
Process control industry: in the chemical, petroleum, electric power and other industries, to provide stable power supply for all kinds of equipment in the control system.
Intelligent transportation field: GE IC698PSA100 used in traffic signal control system, rail transit control system, to provide power for the stable operation of the equipment, to ensure the normal order of traffic.
Energy management system: In the energy production, transmission and distribution system, it provides power for the relevant monitoring and control equipment, which contributes to the efficient management of energy.
Machinery and equipment manufacturing: supplying power to the control systems of all kinds of machinery and equipment to ensure the normal operation and precise control of the equipment.
