GE

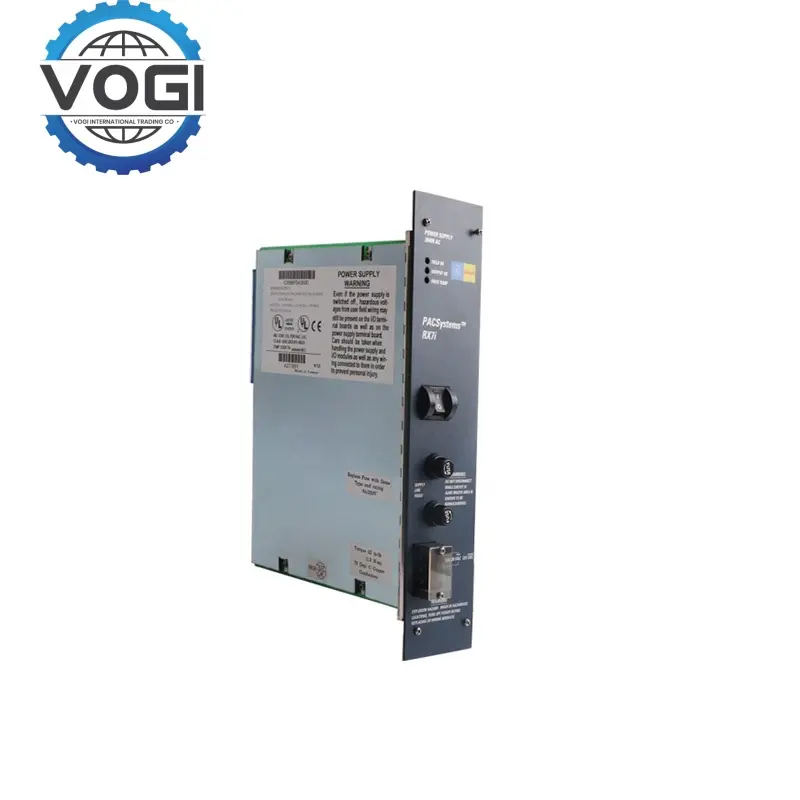

GE IC698PSA350 High Capacity Power Module
Key SpecificationsVOGI
Input voltage range: 85 - 264 VAC (47 - 63 Hz) or 100 - 150 VDC.
Nominal voltage ratings: 120/240 VAC and 125 VDC.
Input power: 440 watts (typical); 500 watts (maximum).
+5 VDC (max. 60 amps), +12 VDC (max. 12 amps), -12 VDC (max 4 amps).
Output Power: 350 watts.
Power Factor: AC (0.99)
Operating Temperature: 0 - 60°C
Isolation rating: 1500 volts DC between inputs and all outputs.
Traversing Time: 15 milliseconds.
Hold-up time: 5 milliseconds.
Key FeaturesVOGI
Powerful: Takes up to 350 watts of output power to provide power supply for multiple modules or devices at the same time, which is suitable for industrial control systems with higher power supply.
Multiple Input Voltage Adaptive: GE IC698PSA350 The AC power supply provides a wide range of DC input voltage adaptability, and also adapts to a variety of power supply environment.
Strong protection function : GE IC698PSA350 Built-in over-temperature, over-voltage and over-current protection circuits and airflow protection, which can effectively protect the power supply module and connected equipment from abnormal conditions.
Clear status indication: Different LED status indicators, convenient for users to intuitively understand the operating status of the module, find problems, and timely maintenance.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$59 |
|
Southeast Asia |
$48 |
|
South Asia |
$78 |
|
South Africa |
$63 |
|
Europe and USA |
$35 |
|
Russia |
$71 |
APPLICATIONVOGI
Industrial automation: GE IC698PSA350power supply for PLC, I/O modules, sensors, drives and other devices, widely used in various industrial production scenarios such as automobile manufacturing, electronic equipment production, food and beverage processing, etc., to ensure the stable operation of automated production lines.
Process control: In chemical, oil, natural gas, electric power and other process control industries, it provides stable power supply for instruments, controllers, actuators, etc. in the control system.
Transportation:GE IC698PSA350 applied in rail transportation, intelligent transportation system and other fields to supply power for signal control equipment, monitoring equipment, communication equipment, etc. to ensure the safety and efficiency of transportation.
Energy management: In the energy production, transmission and distribution system, GE IC698PSA350provides power support for related monitoring and control equipment, which helps to realize the optimal management and efficient use of energy.
Other fields: used in medical equipment, communication base stations and other fields with high requirements for power stability, providing reliable power protection for these equipment to ensure their normal operation.
