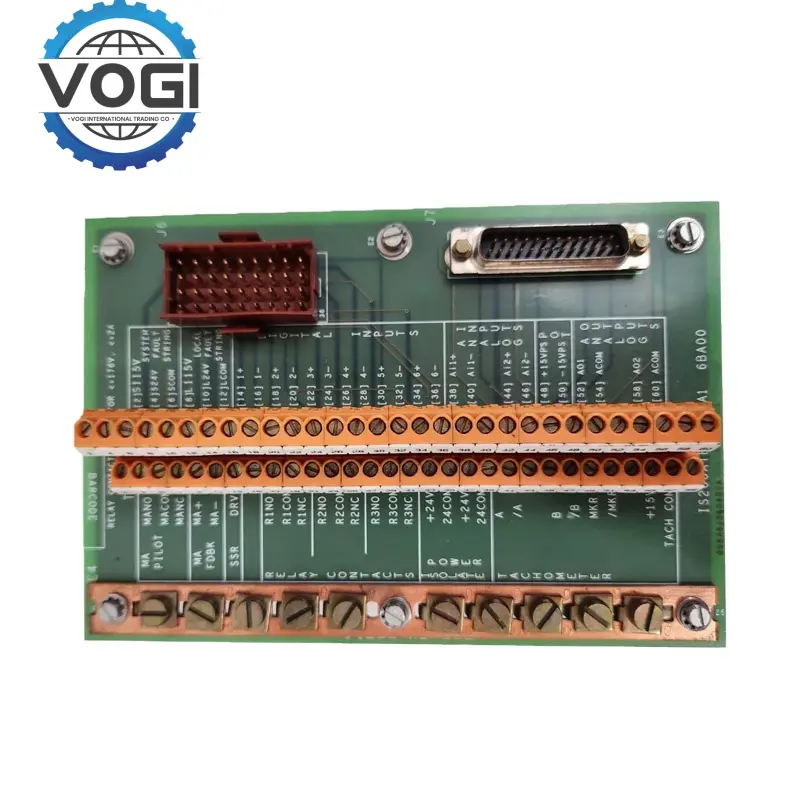

GE IS200ATBAG1BAA1 Interface Card
Key SpecificationsVOGI
Power input Mains: 28V .
Input channel: 1 channel.
Input range: DC 1 - 5V; analog input current 4 - 20mA; generator current input 0 - 5A .
Output: DC 24V; analog output current 0 - 20mA.
Operating temperature: 0°C to + 60°C.
Frequency: 50 or 60Hz.

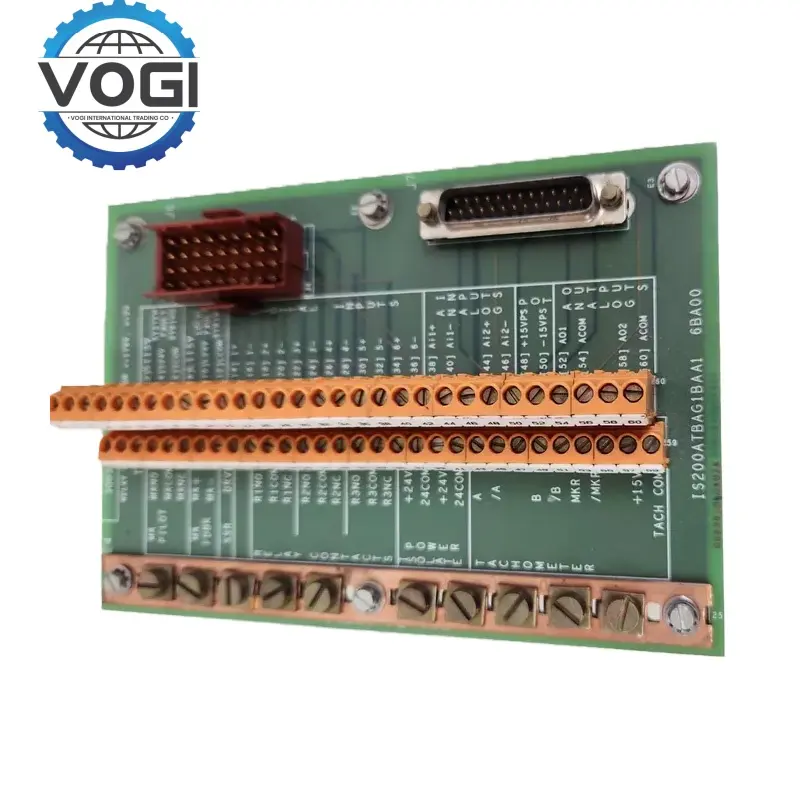

Terminal Block: A 60 position terminal block is provided for all J6 and J7 jumper connections to the CABP board.
Connector Ratings: J7 connectors are rated for 50V, 1A maximum; J6 connectors are generally rated for 225V, 1A maximum, but some specific connectors have different voltage ratings .
Key FeaturesVOGI
Single-Ended Configuration Convenience: A single 60-position terminal block integrates all J6 and J7 jumper connections to the CABP board for easy wiring and maintenance.
No Complicated Jumper Setups: GE IS200ATBAG1BAA1 has no customizable hardware jumpers or jumpers that need to be manually moved, reducing the risk of failure due to incorrect jumper setups.
Multiple Connector Adaptations: The J6 and J7 connectors are available in different voltage ratings to accommodate a wide range of equipment with different voltage ratings.
Integration of System-Owned Functionality: As part of the MARK VI series, Windows 2000/XP-based operator interfaces, Ethernet and DCS communications, and Cimplicity software are integrated, allowing for more sophisticated control and communications with the functionality of the entire series.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$51 |
|
Southeast Asia |
$40 |
|
South Asia |
$67 |
|
South Africa |
$54 |
|
Europe and USA |
$30 |
|
Russia |
$61 |
APPLICATIONVOGI
Power plants: GE IS200ATBAG1BAA1 Used in turbine control systems to process various sensor signal inputs and control the output of actuators to ensure the stable operation of power generation equipment.
Iron and steel mills: In the control system of large-scale equipment such as blast furnaces and rolling mills, it realizes the input and output processing of signals and helps the precise control of automated production processes.
Cement plant: GE IS200ATBAG1BAA1 involved in the control of key equipment in the cement production line, such as managing the signal input and output related to the temperature control of the kiln.
Shipbuilding: GE IS200ATBAG1BAA1 used in the control of ship power system, such as the control of turbine engine, to realize the effective regulation of ship power.
Paper mills: in the automated control of paper making equipment, it handles all kinds of sensor feedbacks and output commands for the execution of equipment actions.
