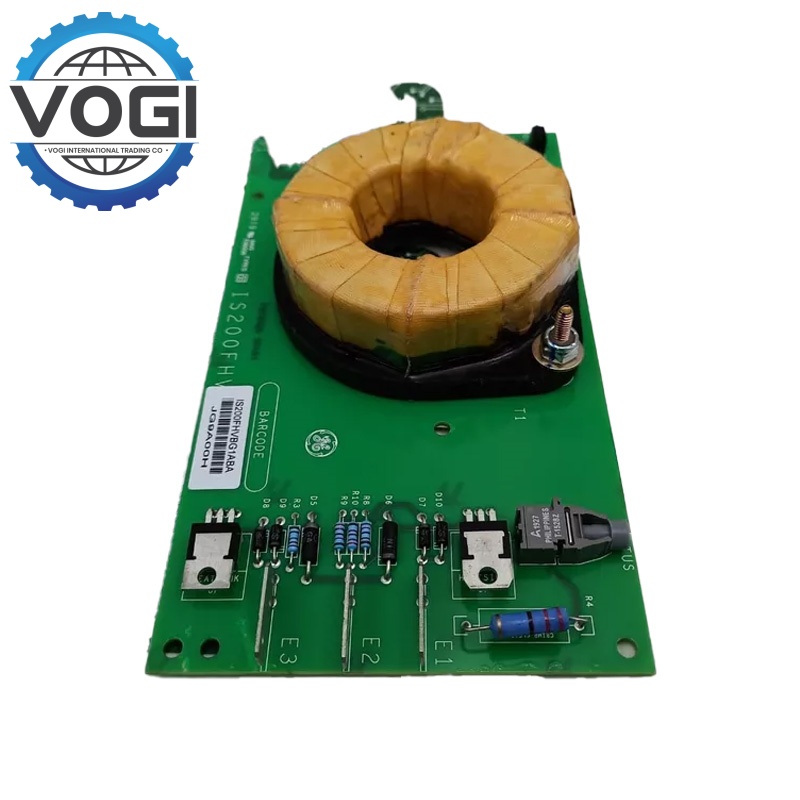

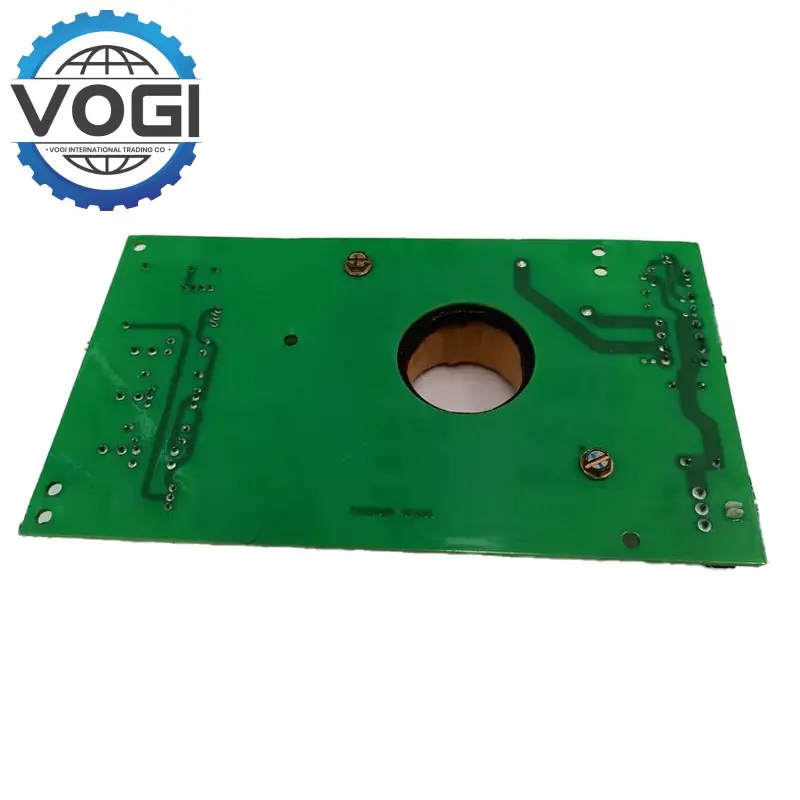

GE IS200FHVBG1ABA High Voltage Gate Interface Board
Key SpecificationsVOGI
Output: 6 and 0-way amplified gate pulse(drive thyristor) signal integrity monitoring is supported.
Communication interface: compatible with VME backplane,RS-422 and Ethernet protocol supported, maximum data rate 10Mbps
Working environment:
Temperature: -30°C to 65°C
Humidity:5% to 95% (no condensation)
Vibration resistance: 5—500Hz,10g peak
GE IS200FHVBG1ABA Basic FunctionsVOGI
Signal processingand drive for high voltages
Load-commutated inverter (LCI) control:The core fits with GE LS2100 static stater control system operation element IS200FHVBG1ABA. The board can be used to realize the accurate control of the inverter through processing of the high voltage gate signals (such as athyristor trigger command) and driving of a large motor to achieve smooth start and speed regulation.
High Voltage bus interface design: including AC / DC bus, line filter fuses and dual terminal boards, provide bridge feedback signals to the control board (forexample, DS200FCGDH1A), guarantee the stability of the system and fault diagnosis function.
Systemlevel compatibility and redundancy.
Adaption to GE Mark VI/VIE system: Ge IS200FHVBG1ABA supportssimplex module configuration, can be plugged in VME backplane, adapting to such applications as turbine controller and industrial drive.
Reliability: GE IS200FHVBG1ABA Rev. 3 has eliminated jumper settings and employsoptical isolation technology for input and output. It has high adaptability to electromagnetic interference and can be used to -30℃ to 65℃ temperature environment.
Signal integrity management
GATE PULSE DISTRIBUTION The gate pulses (triggers) are distributed by GE IS200FHVBG1ABA which is triggered by the PDSPC board and returns diagnostics information on the VME backplane, timing accuracyof the thyristor trigger is <±1%.
Fault protection mechanism: With overcurrent detection, temperature monitor, control to support the machine's heartbeat signal detection and equipment can be safely shuttingdown the control.
Freight Estimation(Part Of The Area)VOGI
Destination |
Freight |
Middle East |
$51 |
Southeast Asia |
$17 |
South Asia |
$65 |
South Africa |
$55 |
Europe and USA |
$31 |
Russia |
$62 |
GE IS200FHVBG1ABA Popular applicationsVOGI
Power Generation Industry
Gas Turbine Startup: GE IS200FHVBG1ABA can realize the rapid drive of the motor exceeding thespeed (acceleration startup time is reduced by 2/3) reduce the current impact by 40% and extend the service life of the equipment.
Excitation Synergy:IS200FHVBG1ABA works together with the excitation board for voltage regulation (fluctuation ≤±1%), increase the generation efficiency by 3%-5%.
Oil and Gas
Offshore Compressor: Anti-corrosion, runningtime over 8000h, fai lure rate< 0.1time/y.
Energy-saving of Pumping House: Dynamic speed control decreases the powerconsumption by 10%, and maintenance period is prolonged to 1 year.
Industrial Automation
Rolling Mill Drive: Accurate speed control (+0.1%)15% higher throughput and 30% reduced vibrations.
Fans / Pumps :Excitation Response Speed improved into20ms, Power consumption reduced by 20%.
