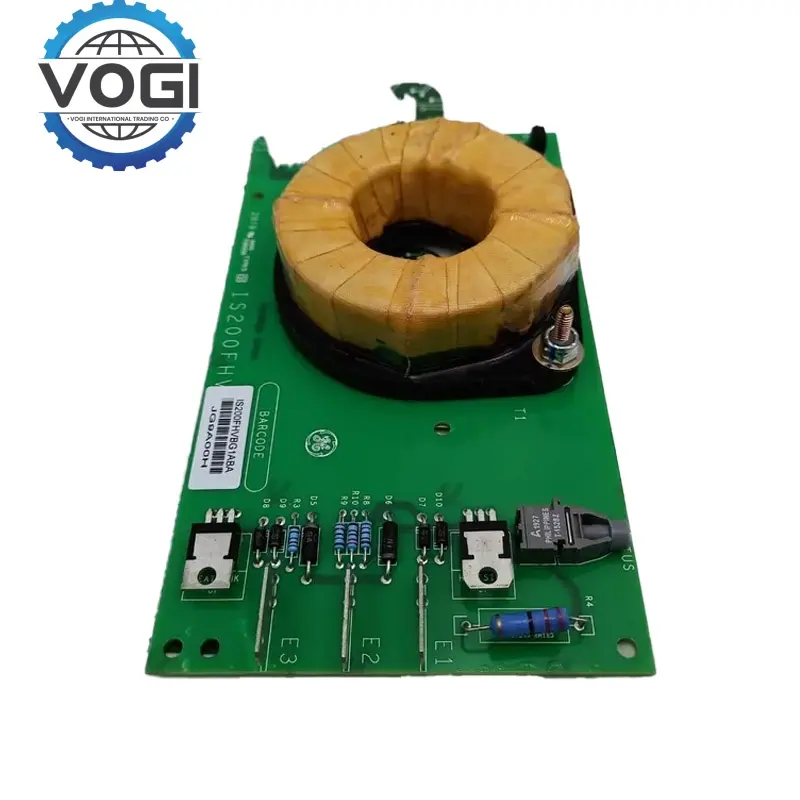

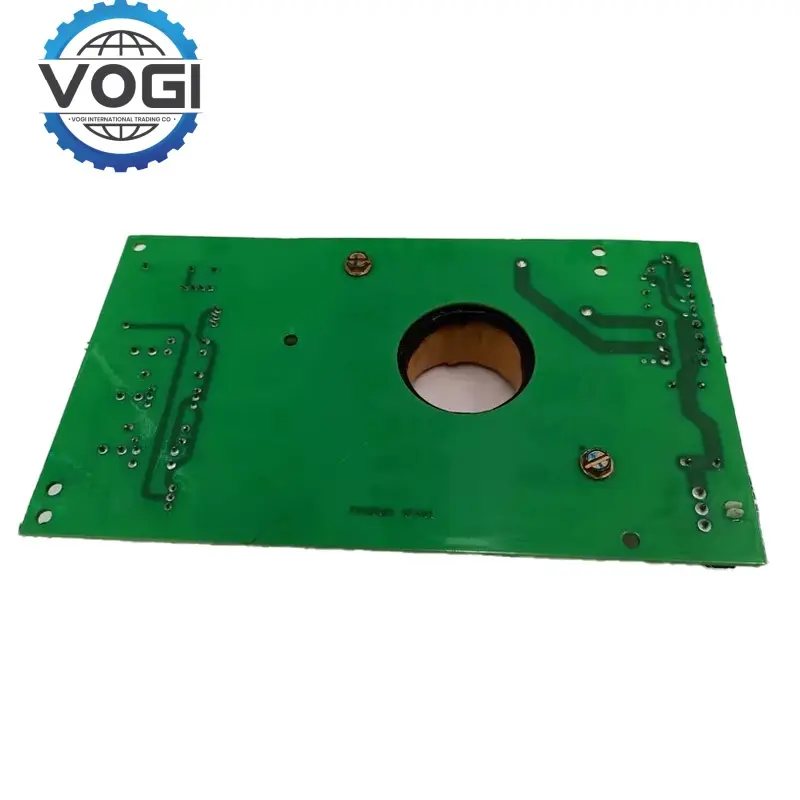

GE IS200FHVBG1ABA High Voltage Gate Interface Board
Key SpecificationsVOGI
Power input: 24V DC (±10% fluctuation range)
Power consumption: about 30W
Communication interface:
Dual 10/100BASE-TX Ethernet ports: Support Ethernet/IP protocol for high-speed data exchange with the LS2100 static startup control system.
RS-485 port: Supports the Modbus RTU protocol and is used to communicate with third-party devices or upper computers.
Input type:
8 high voltage gate drive signal input: compatible with IGCT (integrated gate commutator thyristor) trigger signal, support 0-20V DC input.
2 analog inputs: 0-10V DC for monitoring bus voltage or current.
Output type:
6 high voltage gate drive signal output: ±15V DC, peak current 5A, used to control IGCT on and off.
2 relay output: 250V AC/5A for fault alarm or interlock control.
Operating temperature: -35°C to + 65°C
Humidity range: 5%-95% RH
Protection level: IP20
Physical specifications: Standard VME single slot size (3U), PCB coating for general protection, strong corrosion resistance.
Signal isolation: Input and output channels photoelectric isolation, isolation voltage ≥2500V AC, anti-electromagnetic interference (EMI) ability.
Key FeaturesVOGI
High-speed drive capability: GE IS200FHVBG1ABA Support IGCT nanosecond switching control, response time < 1μs, suitable for fast switching requirements of high voltage inverters. Special ASIC chip is used to realize precise synchronization of gate drive signals to ensure system stability.
Redundancy and Reliability Design: Dual Ethernet ports support network redundancy to ensure uninterrupted communication. Adopts industrial-grade components, strong vibration and shock resistance.
Modular expansion: GE IS200FHVBG1ABA Supports direct connection with the LS2100 system backplane, and can be mixed with other I/O modules (such as analog input and digital output). Optional PMC subroutine expansion function.
Freight Estimation(Part Of The Area)VOGI
Destination |
Freight |
Middle East |
$50 |
Southeast Asia |
$40 |
South Asia |
$67 |
South Africa |
$54 |
Europe and USA |
$30 |
Russia |
$61 |
APPLICATIONVOGI
High voltage variable frequency drive system:GE IS200FHVBG1ABA used for soft start and speed control of large motor to reduce the impact of starting current.
Static reactive power compensation (SVC) : By controlling the on-angle of IGCT, the power grid reactive power can be dynamically adjusted and the power quality can be improved.
Industrial automation control: Interlock control of compressor and pump equipment in petrochemical industry. Remote control of transformer tap-changer in power system.
Energy storage system:GE IS200FHVBG1ABA Used for power regulation of energy storage converters (PCS) to support two-way energy flow. For example, large energy storage plants, distributed energy systems.
