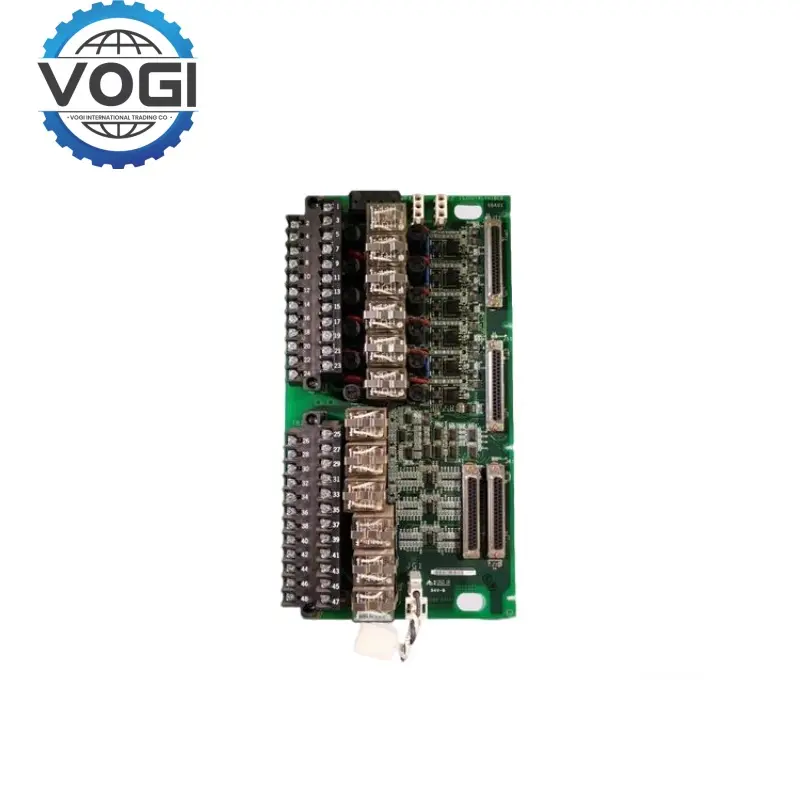

GE IS200TRLYH1BFD Relay Terminal Board
Key SpecificationsVOGI
Main power supply: 24VDC or 125VDC, compatible with 115VAC;
Control power isolation: supports redundant power input).
Relay output: 36
Contact capacity: maximum load 125VDC/2A or 115VAC/0.5A.
Expandability: supports connection to TRPG terminal board and drives 3 emergency stop solenoid valves;
External device support: compatible with VTUR overspeed protection module, TSVO servo valve control board.
Real-time detection: monitor relay coil voltage, power isolation status and ID chip matching;
Fault isolation: automatically switch to healthy channel to avoid shutdown caused by single point failure.
Control mode: driven by VGEN/VCRA/VCCA main control board through IONet dedicated Ethernet;
Interface type: communicate with daughter board or external device through DC-37/DC-64 pin connector.
TMR triple redundancy: supports three-channel independent control and ensures output reliability through voting logic;
Jumperless configuration: update logic parameters online through ToolboxST software.
Operating temperature: -30℃ to +65℃;
Humidity range: ≤95%RH;
Protection level: ATEX Zone 2 explosion-proof certification.
Key FeaturesVOGI
High reliability design:GE IS200TRLYH1BFD Adopting 36 sealed relays and TMR architecture, three-channel independent control and voting logic ensures that there is no single point of failure risk in critical operations.
Flexible expansion and compatibility:Can be connected to TRPG terminal board to drive 3 emergency trip solenoid valves; GE IS200TRLYH1BFD compatible with GE Mark VI Speedtronic gas/steam turbine control system, supports integration with VTUR overspeed module and TSVO servo valve control board.
Intelligent diagnosis and maintenance:Real-time monitoring of relay coil voltage, power supply status and ID chip matching, online configuration of logic parameters through ToolboxST software, no physical jumper required, reducing maintenance complexity.
