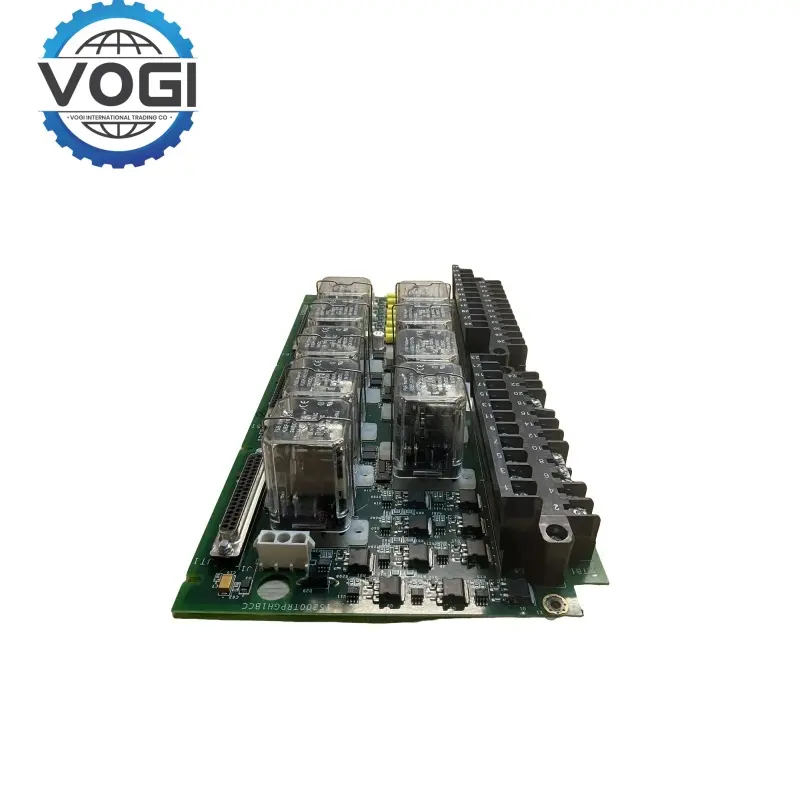

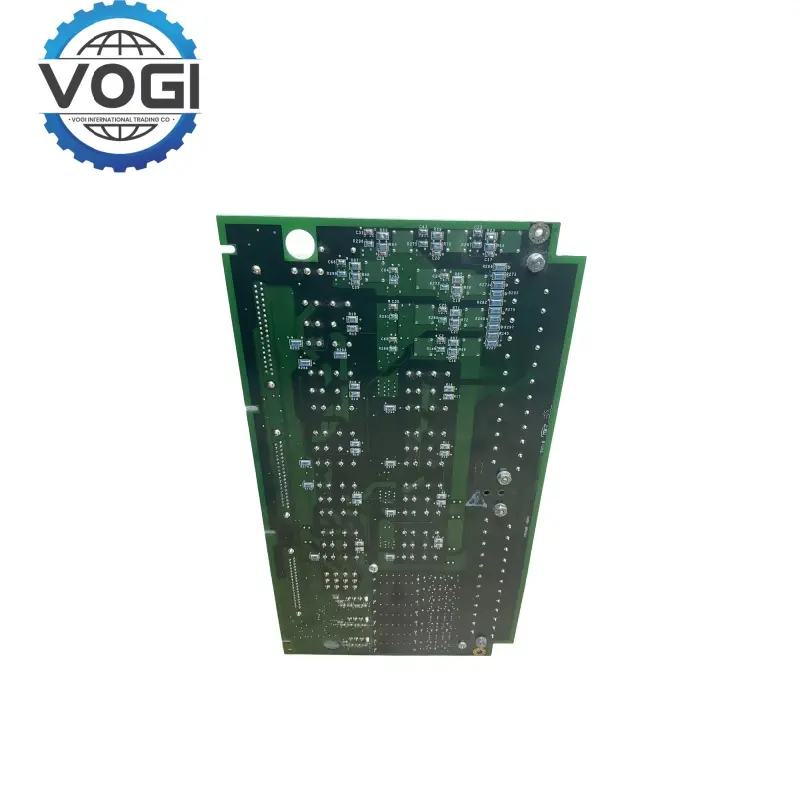

GE IS200TRPGH1BCC TERMINATION RELAY
Key SpecificationsVOGI
Power input Main power supply: 125 VDC supports wide voltage fluctuations and adapts to complex industrial power supply environments.
Communication interface: High-speed connection with GE Mark VI series controllers through dedicated cables, supporting IONet proprietary protocol and Modbus communication.
Programmable input: 8-way Geiger-Müller flame detector signal input, supporting gas turbine combustion status monitoring.
Relay output: 9-way magnetic relay, supporting 3 trip solenoid valves or electrical trip device (ETD) control.
Redundant configuration: Supports triple module redundancy (TMR) or simplex mode to adapt to different safety level requirements.
Operating temperature: 0°C to +60°C.
Humidity range: ≤95% RH.
Safety certification: UL, CE certified, suitable for NFPA Class 1, Div. 2 hazardous locations.
Status indication: Built-in LED indicator, real-time display of relay status and diagnostic information.
Key FeaturesVOGI
Triple redundant architecture: In TMR mode, each group of 3 relays verifies the signal through a hardware voting mechanism to improve the fault tolerance of key controls and is suitable for scenarios with high safety requirements.
High reliability emergency protection: Designed specifically for gas turbine control systems, it supports the main trip function to ensure rapid shutdown triggering in abnormal situations such as overspeed and overtemperature to avoid the expansion of accidents.
Wide temperature and anti-interference performance: The GE IS200TRPGH1BCC has a wide operating temperature range and combines electromagnetic shielding design to withstand vibration, dust and electromagnetic interference, ensuring stable operation in harsh environments.
Modular expansion capability: The GE IS200TRPGH1BCC supports I/O function expansion through terminal boards to adapt to industrial control needs of different scales, such as adding analog input or digital output channels.
Intelligent diagnosis and maintenance: Built-in self-diagnosis function, real-time monitoring of relay contact status, power supply voltage and flame detector signals, and quick fault location through LED indicators.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$50 |
|
Southeast Asia |
$40 |
|
South Asia |
$67 |
|
South Africa |
$54 |
|
Europe and USA |
$30 |
|
Russia |
$61 |
APPLICATIONVOGI
Energy and power industry: Emergency protection system for gas turbines and steam turbines, supporting overspeed tripping test and generator grid connection control.
Industrial automation: GE IS200TRPGH1BCC is integrated into production line equipment to realize robot motion control, valve drive and safety interlocking functions.
Petrochemical; Applicable to emergency shutdown system of key equipment such as reactors and compressors to ensure production safety.
Rail transit: GE IS200TRPGH1BCC is used for real-time monitoring of train traction systems or platform equipment, supporting signal transmission and fault diagnosis.
Intelligent infrastructure: GE IS200TRPGH1BCC is connected to the BMS system to manage HVAC and security equipment and improve building automation efficiency.
