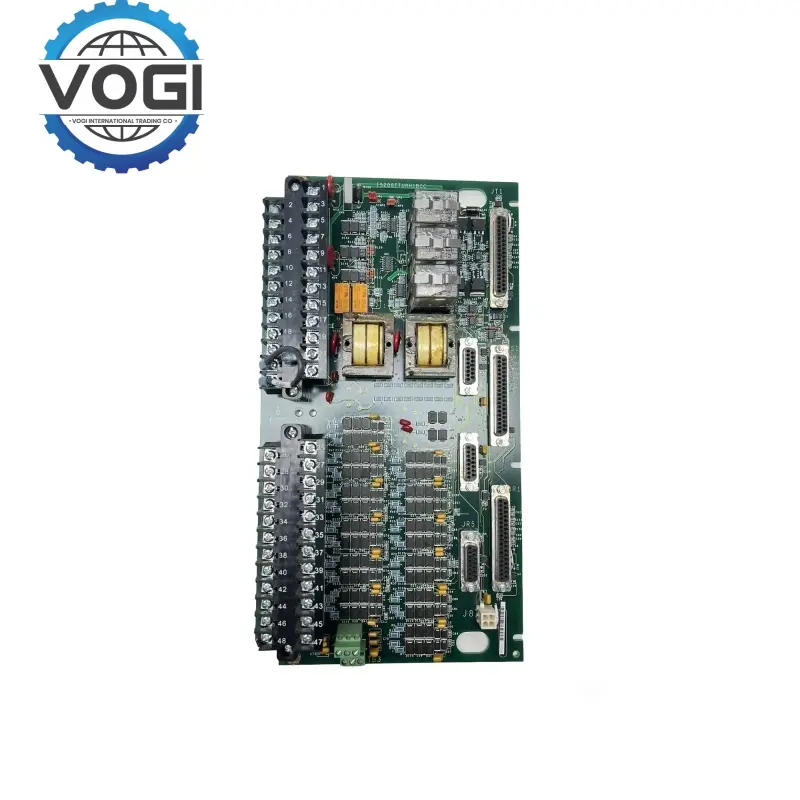

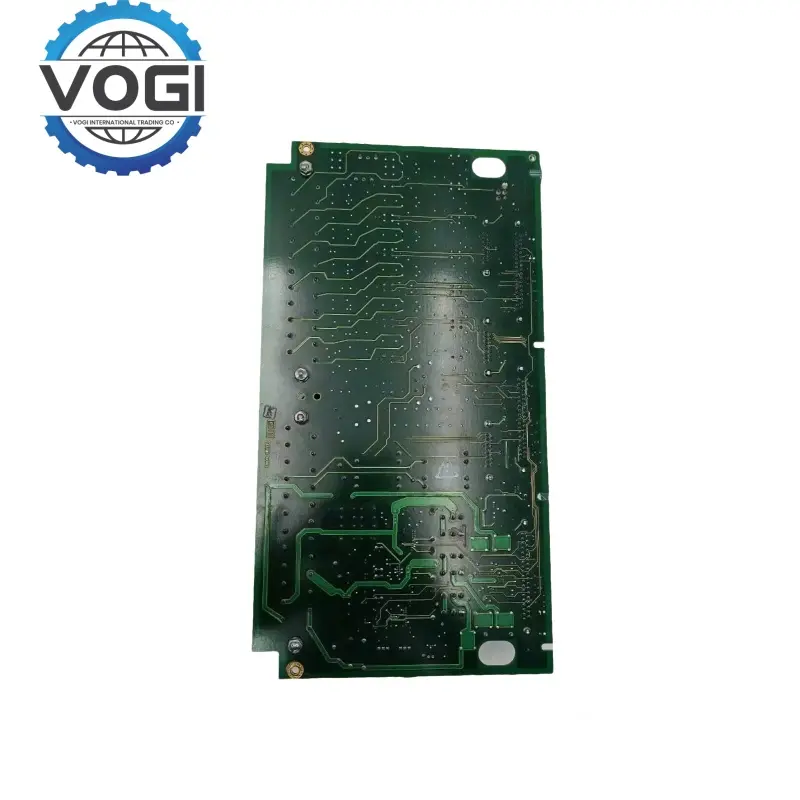

GE IS200TTURH1BCC Turbine Termination Board

Operating Temperature Range: -30°C to +65°C

Humidity Tolerance: 5% to 95% RH

​Vibration Resistance: Complies with IEC 60068-2-6 standard

Number of Input Channels: 12 channels

Output Function: Main Circuit Breaker Control

Pulse Frequency Range: 2 Hz to 20 kHz

Voltage Monitoring Type: Generator and Bus Voltage Input via Voltage Transformer.

Signal Type: Supports Passive Pulse Rate Devices, Voltage Transformer Signals

Redundancy Support: Compatible with Simplex (SMX) and Triple Redundancy (TMR) Systems

Installation Method: Modular design, supports direct integration with Mark VI System

High-performance signal processing capability: GE IS200TTURH1BCC adopting high-speed processor and patented algorithm, it supports fast acquisition and processing of analog/digital signals such as turbine speed and voltage, with low response delay.

Multi-channel flexible configuration:Supports 12 input channels and main circuit breaker control output, GE IS200TTURH1BCC can be configured as simplex or triple redundant mode according to needs, adapting to complex system architecture.

Modular expansion and compatibility:Adopting compact modular design, GE IS200TTURH1BCC supports direct integration with GE Mark VI/VIE turbine control system, compatible with VME bus standard, and convenient for system upgrade and maintenance.

Redundant fault-tolerant mechanism: Supports simplex (SMX) and triple redundant (TMR) configuration, and flexible switching through jumpers.

Intelligent diagnosis and communication function: Built-in real-time monitoring and fault diagnosis function, supports abnormal signal alarm; equipped with a variety of communication interfaces, convenient for remote monitoring and system integration.

High-precision voltage synchronization control: GE IS200TTURH1BCC Integrated generator and bus voltage monitoring, supports automatic synchronization adjustment, and ensures stable operation of the power system.

Gas turbine control system: GE IS200TTURH1BCC Used for GE Speedtronic series gas turbines to achieve speed monitoring, load distribution and circuit breaker control to ensure efficient operation of the unit.

Industrial automation: Applied to real-time monitoring of production lines, compressors and other equipment, supporting multi-device collaborative control and data interaction.

Energy and process control: Used for turbine drive equipment in the chemical and petroleum industries to optimize energy utilization efficiency.

Railway transportation and port machinery: GE IS200TTURH1BCC Adapt to power system control of high-speed trains and port loading and unloading equipment to ensure high reliability and low-latency response.
