GE

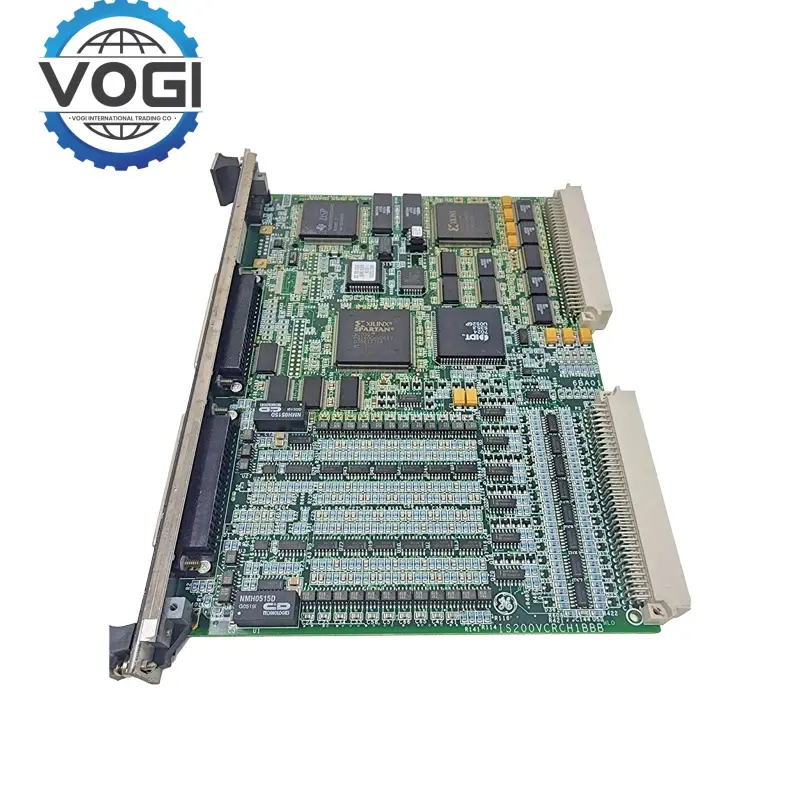

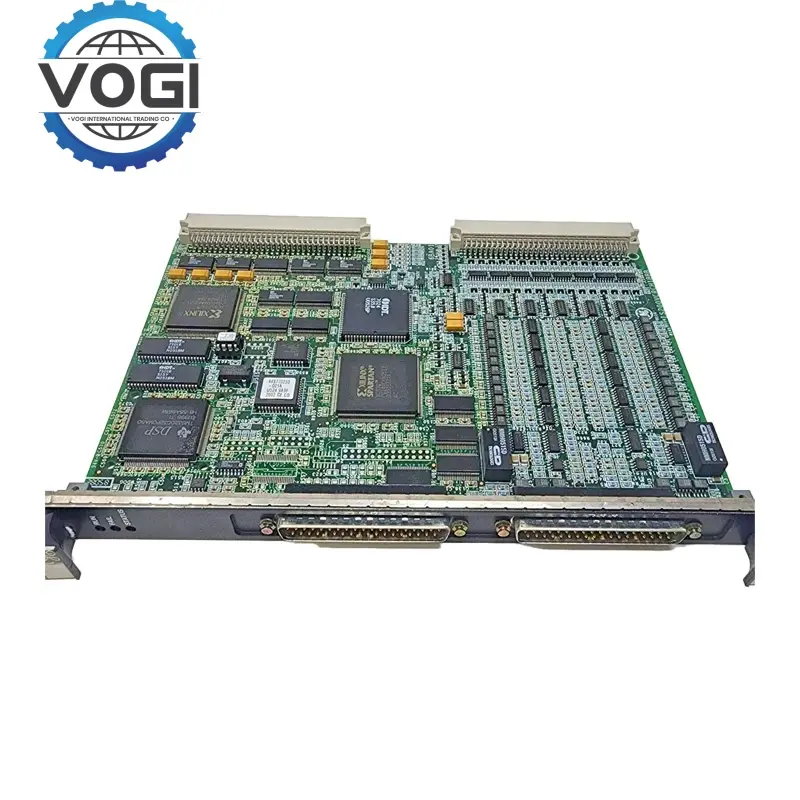

GE IS200VCRCH1BBB Discrete I/O Board
Key SpecificationsVOGI
Main power supply: 24VDC±15%;
Backup battery: supports lithium battery
Input configuration: 48 discrete contact inputs.
Output configuration: 24 relay outputs
Communication interface: communicate with the main controller via VME bus;
Temperature range: 0°C to +60°C.
Humidity range: ≤95% RH.
Status monitoring: 3 LED indicators: flashing green, solid red, solid orange.
Installation method: single-slot VME rack installation, compatible with GE Mark VI system backplane.
Key FeaturesVOGI
High-reliability industrial design: GE IS200VCRCH1BBB supports simplex and triplex redundant configurations to ensure the stability and fault tolerance of key control systems.
High-density I/O configuration: 48 discrete contact inputs, 24 relay outputs. Expand various types of I/O modules through VME bus to flexibly adapt to complex control needs.
Modular system integration: GE IS200VCRCH1BBB Based on VMEbus architecture, seamlessly compatible with GE Mark VI/VIe series backplanes and terminal boards.
Real-time status monitoring: built-in LED indicator, supports serial port online diagnosis and reset.
Redundant power supply support: main power supply 24VDC±15%, equipped with lithium battery backup to ensure data storage security.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$51 |
|
Southeast Asia |
$40 |
|
South Asia |
$67 |
|
South Africa |
$54 |
|
Europe and USA |
$30 |
|
Russia |
$61 |
APPLICATIONVOGI
Water treatment and environmental protection：GE IS200VCRCH1BBB Remote monitoring of pumps and valves in sewage treatment plants and water purification plants, supporting multi-site linkage control.
Transportation and infrastructure：Safety logic control of port machinery and mine hoisting equipment to ensure reliable operation of equipment.
Power industry：GE IS200VCRCH1BBB Control of steam turbines and generators in thermal power plants and hydropower stations, as well as discrete signal monitoring and execution of auxiliary equipment.
Petrochemicals：Process control in refineries and chemical plants, including switch logic control of reactors, separators and other equipment.
Metallurgy and manufacturing：GE IS200VCRCH1BBB Control of blast furnaces and continuous casting machines in steel plants, as well as automated management of production line equipment.
