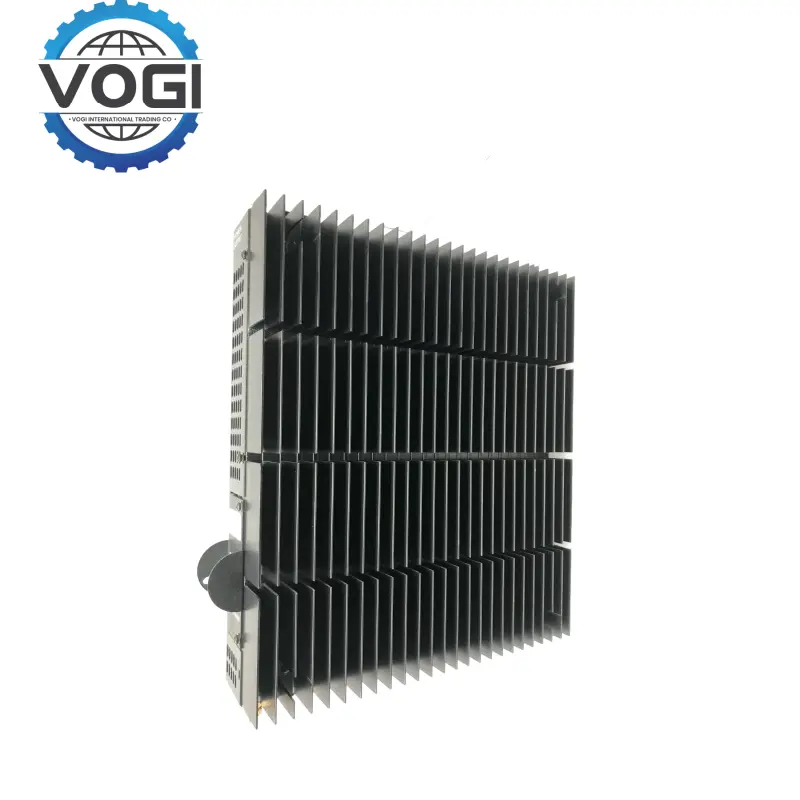

GE IS2020RKPSG2A VME Power Supply Module

Input Voltage: 125V DC, powered by Power Distribution Module (PDM)

Output Voltage: +5V, ±12V, ±15V, ±28V DC are available as well as an optional 335V DC output for powering flame detectors connected to the TRPG.

Total output power: 400W.

Operating temperature: 0°C to 60°C.

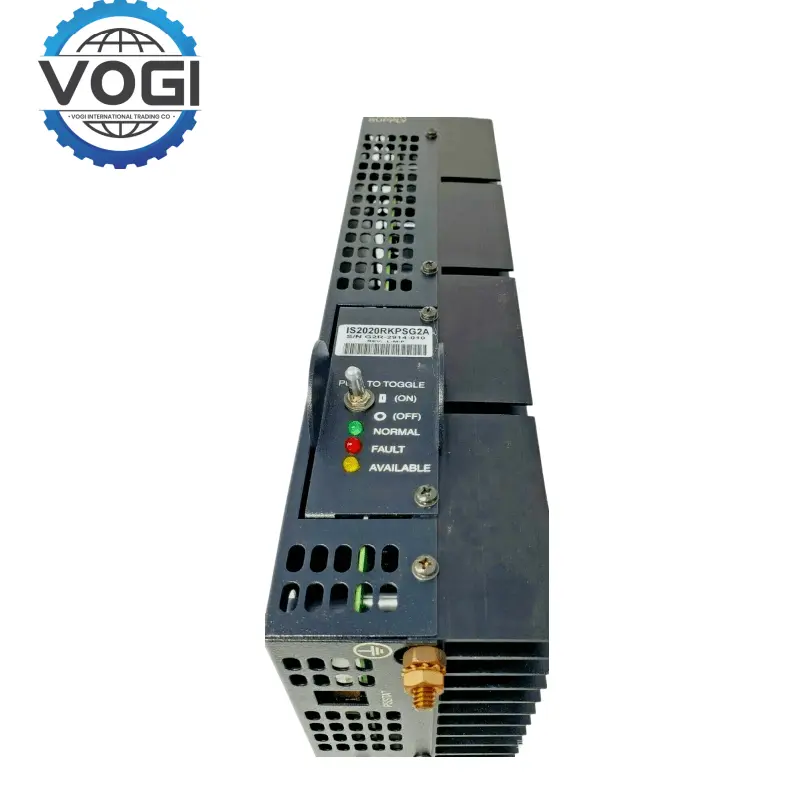

User Controls: Front panel has a latching power switch that controls the power output voltage and also serves as a fault reset button.

Communication Interface: Primarily provides power to the VME Rack.

Connection ports: Two connectors at the top (PSA and PSB) and four connectors at the bottom (PS125/PS24, PS335, PS28, PSSTAT).

Protective design: Standard PCB coating provides protection against dust and moisture.

Status Indication: Has three LED indicators, yellow, red and green LEDs to indicate input power status, fault status and normal operation status respectively.

Construction: Modular, mounted on the side of the VME control and interface rack.

High reliability design: GE IS2020RKPSG2A is designed for industrial environments, especially for gas turbine control systems, it can provide stable power supply under harsh conditions to ensure reliable operation of the system.

Clear status indication: Three light-emitting diodes indicate a clear working status of the power supply module which provides a rapid and intuitive understanding of the operating status of the module, facilitating the maintenance personnel finding and solving problems in a timely manner.
Multiple Output Voltages: GE IS2020RKPSG2A provides multiple DC output voltages to meet the power supply requirements of different equipment in VME racks.

Fault reset function: The power switch on the front panel can also be used as a fault reset button, which is convenient for quickly resuming the operation of the power module after troubleshooting.

Power industry: In the gas turbine power generation system, GE IS2020RKPSG2A provides stable power supply for the VME rack of GE Speedtronic gas turbine control system, ensuring that the control system accurately monitors and controls the operation of the gas turbine, and safeguarding the stability and efficiency of power production.

Other industrial fields: Wherever GE Speedtronic gas turbine control systems are used, such as aerospace ground testing, large-scale industrial production of self-supplied power stations, etc., the power module plays an important role in providing reliable power for the control system.
Petrochemical industry: GE IS2020RKPSG2A used to drive and control the gas turbine to provide power for various compressors, pumps and other equipment in the petrochemical production process, while the power module supplies power to the control system of the gas turbine to ensure the safety and stability of the entire production process.
