GE IS2020RKPSG3A Power Supply Module

Input voltage: 125V DC.

Output Voltage: Provides +5V, ±15V, +28V DC, and optional 335VDC for flame detectors.

Rated output power: 400W.

Output Channels: 5 +28V PSA outputs and 1 remote +28V output.

Protection rating: IP66

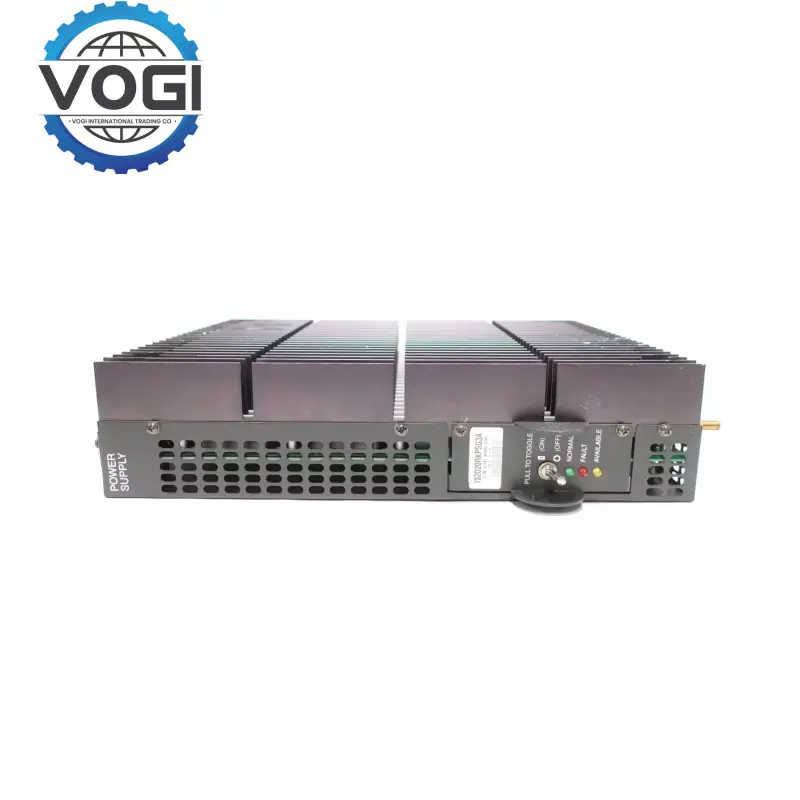

User Controls: Front panel has toggle switches for resetting module faults.

Status Indication: Front panel has green, red and yellow LEDs to indicate normal operation, faults and warnings.

Mounting Location: Designed to be mounted on the right side of the VME control and interface rack.

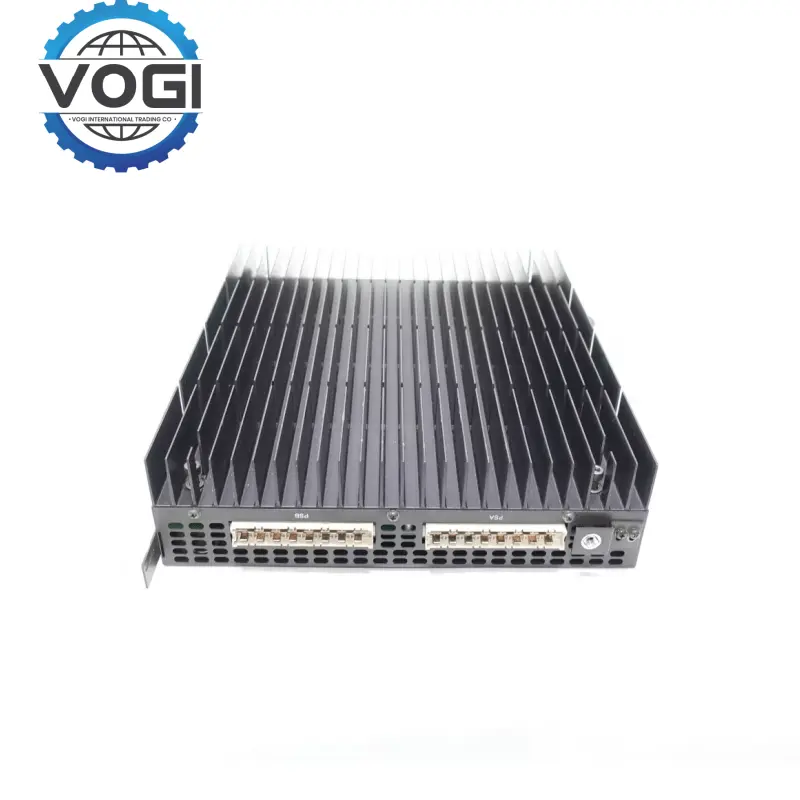

Connections: 2 connectors on top (PSA and PSB), 4 connectors on bottom (PS125/PS24, PS335, PS28, PSSTAT).

Operating temperature: 0°C to +60°C

Humidity range: 5% to 95% RH

Protective design: Metal heat sink design for enhanced thermal performance and physical protection.

Reliable: GE IS2020RKPSG3A provides high reliability and ensures the continuity and safety of turbine control for Mark VI system.

Easy to Use: The front panel has a single toggle switch for fault reset and power on/off, making it simple to use in the field.

Multiple outputs:GE IS2020RKPSG3A is a flexible module, with support for multiple output voltages that can be used to power many different types of equipment.

Space-saving: The modular construction enables components like the GE IS2020RKPSG3A to be mounted to the right-hand side of the VME rack. Thus, systems can be integrated and designed to be compact.

The reasonableness of heat dissipation design: The side metal fins in the chassis can be used as heat dissipation components, which can effectively help the module maintain the appropriate temperature during continuous work and improve the stability and service life of the module.

Power industry: In the gas turbine power generation system, it provides stable power supply for the VME frame of GE Mark VI Speedtronic gas turbine control system to ensure the stability and efficiency of power production.

Petrochemical industry: It is used to drive and control the gas turbine, providing power for various compressors, pumps and other equipment in the petrochemical production process.

Other industrial fields: Wherever the GE Mark VI Speedtronic gas turbine control system is used, such as aerospace ground testing, large-scale industrial production of self-supplied power stations, etc., the power module plays an important role in providing reliable power for the control system.
