GE

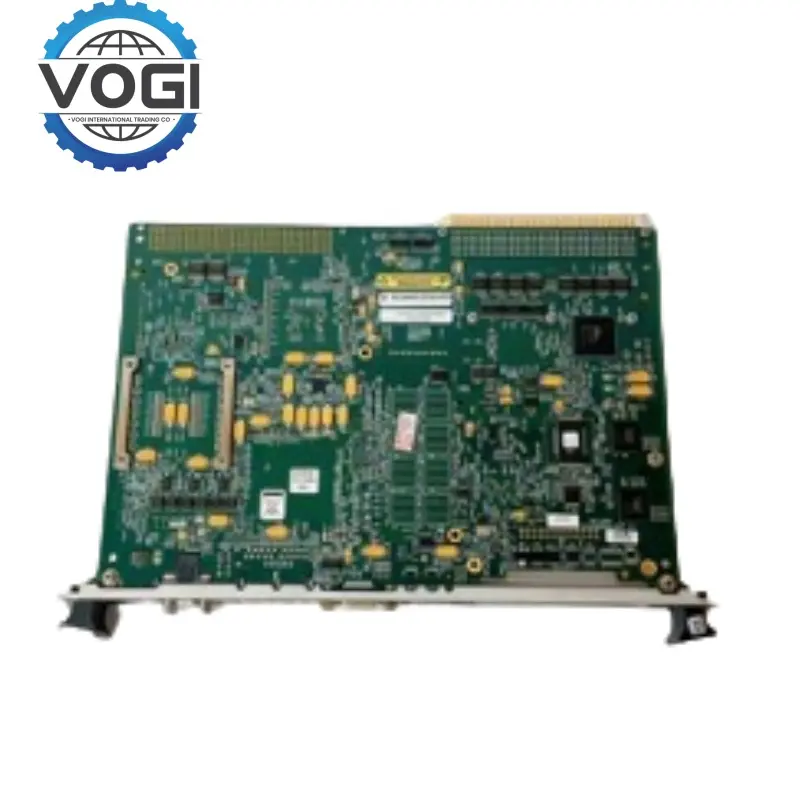

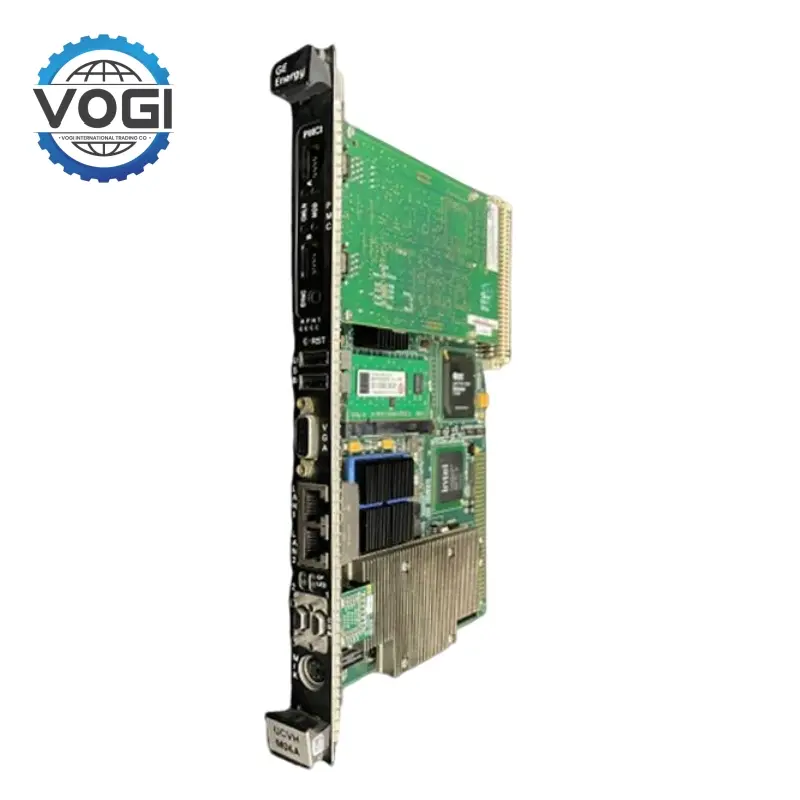

GE IS215UCVHM06A VME Processor Control Card
Key SpecificationsVOGI
Power input Main power supply: supports 24VDC or 230VAC, wide voltage range design, adapt to complex industrial power supply environment.
Backup battery: not built-in, external backup power system is required to support power-off transmission.
Communication interface: dual 10/100BaseTX Ethernet ports, support Modbus, EGD and other industrial protocols, compatible with industrial network integration.
Processor: Intel ultra-low voltage Celeron™ 1.06 GHz
Memory and storage: 1GB SDRAM + 128MB flash memory, support system configuration and program storage.
Programmable input: 20 HART/universal analog inputs + 14 digital inputs.
Relay output: up to 12 relay outputs.
Operating temperature: -40°C to +85°C.
Humidity range: 20%–80% RH.
Display and operation: support VGA external display , built-in status indicator and serial debugging interface.
Key FeaturesVOGI
Flexible scalability: Modular design supports expansion of I/O functions through terminal boards.
Real-time monitoring and diagnosis: GE IS215UCVHM06A Built-in embedded Web server, supports remote configuration and status monitoring, provides fault warning and data recording.
Industrial-grade reliability: High protection design, adapt to vibration, dust and temperature and humidity fluctuation environment, IP20 protection level.
High-performance signal processing: Integrated digital signal generator function, supports high-precision, low-noise signal generation, suitable for test measurement and communication verification.
Multi-protocol compatibility: Dual Ethernet ports support Modbus, EGD and other protocols, and support seamless connection with PLC, SCADA, cloud platform and other systems.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$43 |
|
Southeast Asia |
$31 |
|
South Asia |
$56 |
|
South Africa |
$46 |
|
Europe and USA |
$27 |
|
Russia |
$51 |
APPLICATIONVOGI
Communication and testing: GE IS215UCVHM06A is used as a signal generator module for wireless communication system verification, equipment debugging and simulation.
Rail transit: integrated into train traction system or platform equipment to achieve real-time monitoring and network communication.
Power and energy: GE IS215UCVHM06A is used for steam turbine and generator control, supporting overspeed tripping test and process parameter adjustment.
Industrial automation: suitable for production line equipment control, robot motion management and real-time data acquisition.
Smart building: access to BMS system, manage HVAC and security equipment, support edge computing and cloud data synchronization.
